Order Job/Part Q’ty Remarks
1
2
3
4

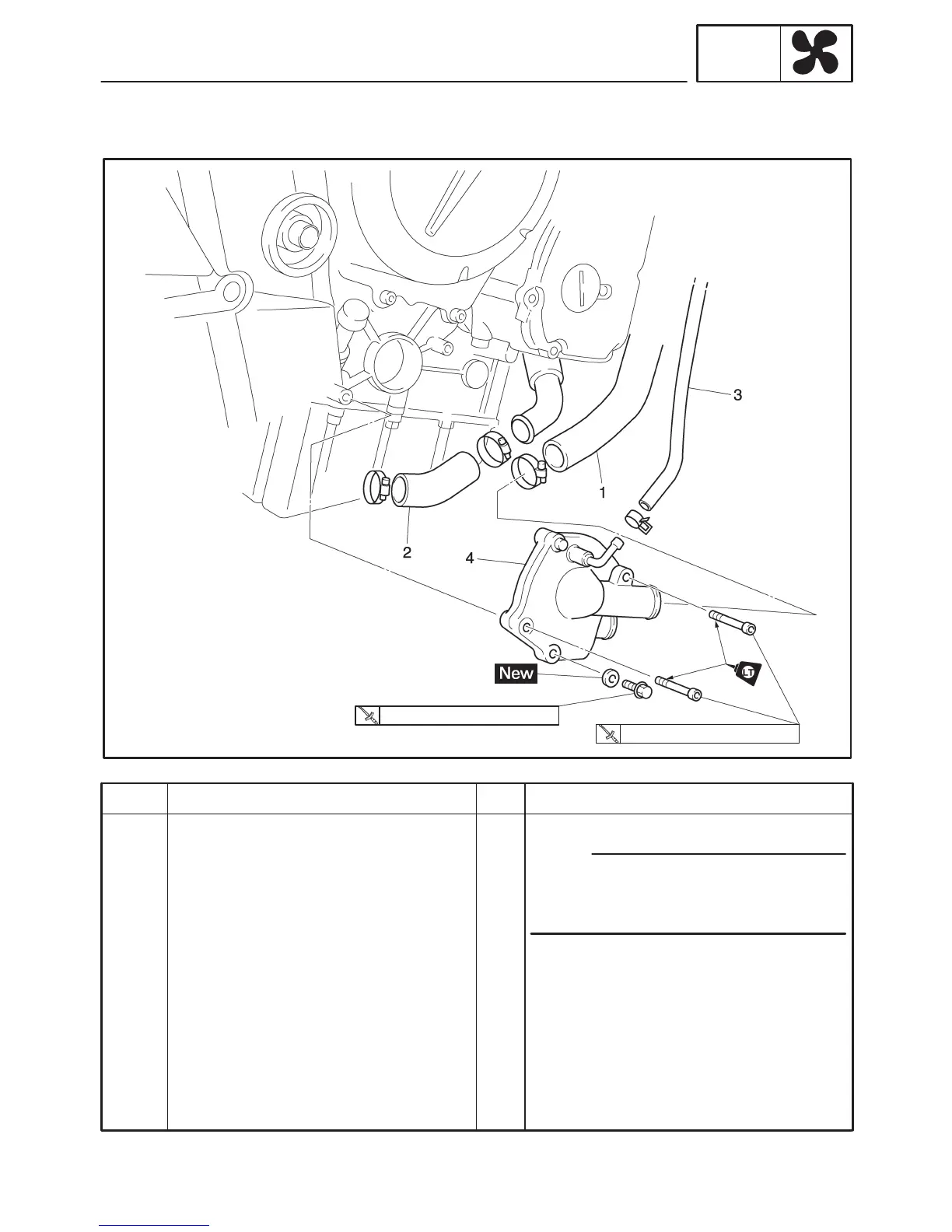

Removing the water pump
Coolant
Radiator outlet hose
Water pump outlet hose
Water pump breather hose
Water pump
1
1
1
1
Remove the parts in the order listed.
It is not necessary to remove the water
pump unless the coolant level is extremely
low or the coolant contains engine oil.
Drain.
Refer to “CHANGING THE COOLANT” in
chapter 3.
Disconnect.
Disconnect.
For installation, reverse the removal
procedure.
NOTE:
10 Nm (1.0 mSkg, 7.2 ftSlb)
12 Nm (1.2 mSkg, 8.7 ftSlb)
WATER PUMP
COOL
EAS00468
WATER PUMP
