4-22
FRONT AND REAR BRAKES
CHAS
27 Nm (2.7 mSkg, 20 ftSlb)
22 Nm (2.2 mSkg, 16 ftSlb)
17 Nm (1.7 mSkg, 12 ftSlb)
3 Nm (0.3 mSkg, 2.2 ftSlb)
b. Loosen the bleed screw and push the brake
caliper pistons into the brake caliper with
your finger.
c. Tighten the bleed screw.
Bleed screw
6 Nm (0.6 mSkg, 4.3 ftSlb)

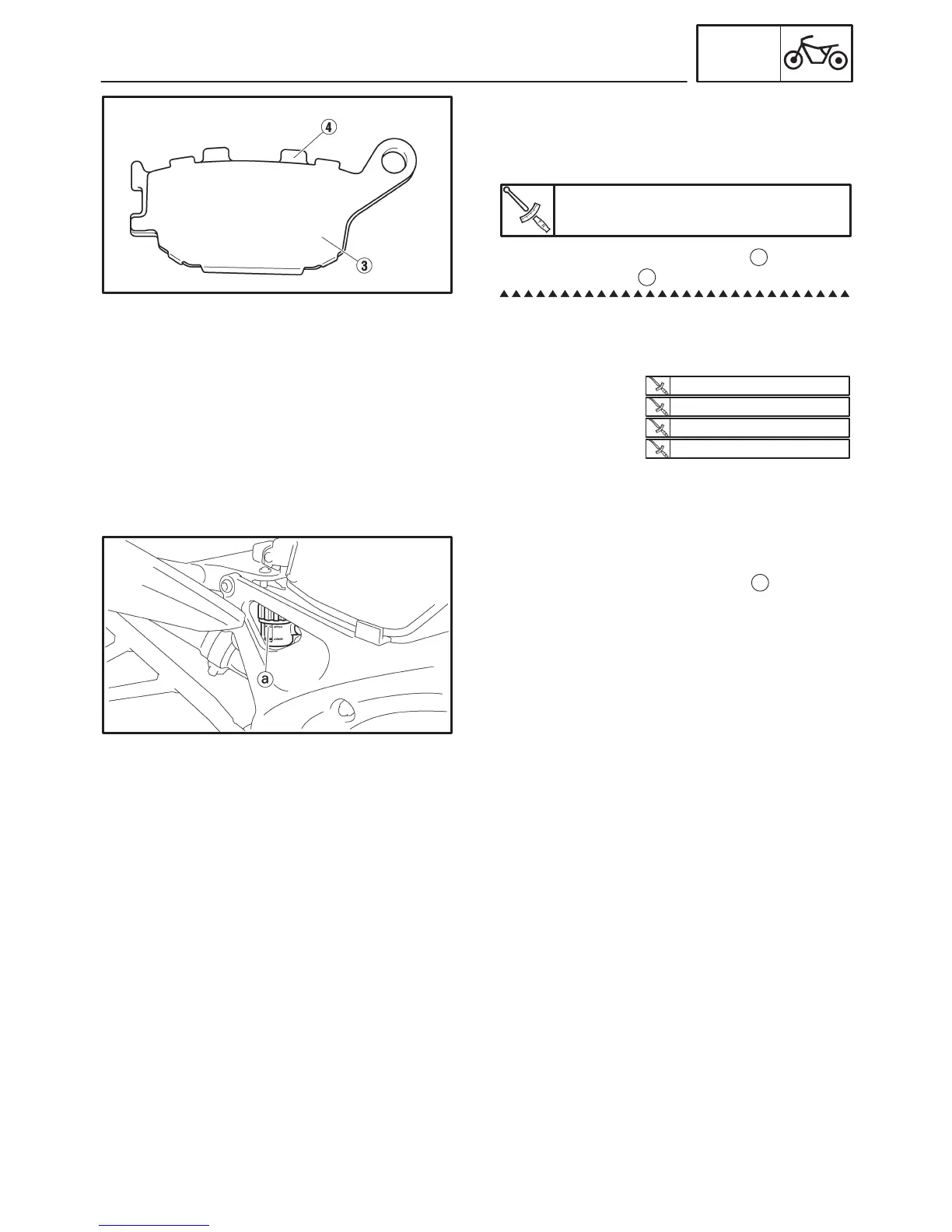

d. Install a new brake pad shim
3
onto each
new brake pad
4
.
5. Install:
S brake pad cover
S brake caliper
(front)
(rear)
S brake pad pin
S screw plug
6. Check:
S brake fluid level
Below the minimum level mark
a
! Add the
recommended brake fluid to the proper level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” in chapter 3.
7. Check:
S brake pedal operation
Soft or spongy feeling ! Bleed the brake
system.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” in chapter 3.
