PERIODIC MAINTENANCE AND ADJUSTMENT
7-14
7

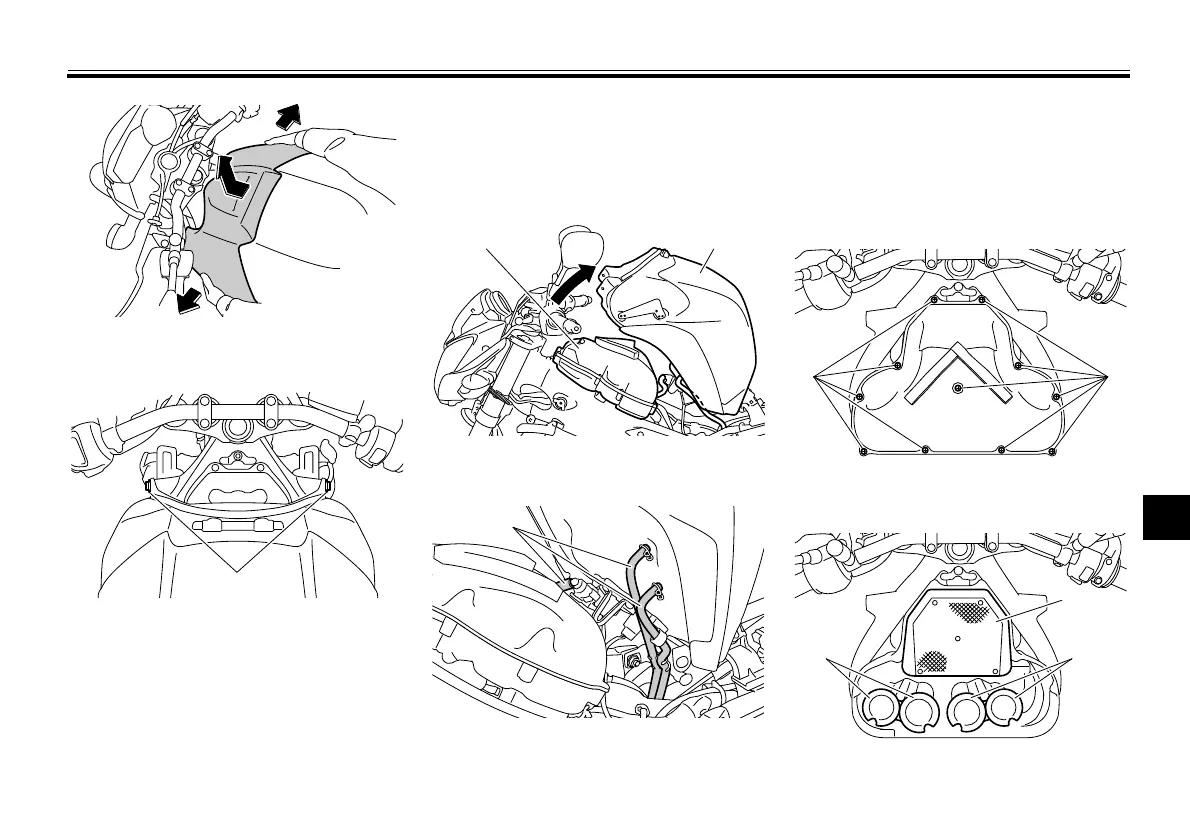

4. Remove the fuel tank bolt on both
sides.
5. Lift the front of the fuel tank, and
carefully tilt it back and away from
the air filter case, but do not dis-
connect the fuel hoses.
WARNING! Make sure that the
fuel tank is well supported. Do
not tilt or pull the fuel tank too
much, otherwise the fuel hoses
may come loose, which could
cause fuel leakage and a fire
hazard.
[EWA10411]
6. Remove the air filter case cover by
removing the screws. NOTICE:
When removing the air filter
case cover, be careful not to al-
low foreign objects to drop into
the air intake manifold.
[ECA12881]
7. Pull the air filter element out.
1. Fuel tank bolt
1. Air filter case
2. Fuel tank
1. Fuel hose
1. Screw
1. Air filter element
2. Air intake manifold
