Replacing the headlight bulb
This model is equipped with a halogen
bulb headlight. If the headlight bulb
burns out, replace it as follows.
ECA10650
Take care not to damage the follow-
ing parts:
● Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.
● Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Remove the headlight unit top cov-
er by removing its bolts.
2. Remove the bolt behind the head-
light unit as shown.
3. Remove the headlight unit bolts.
4. Disconnect the coupler, then take
off the headlight unit from the vehi-
cle.

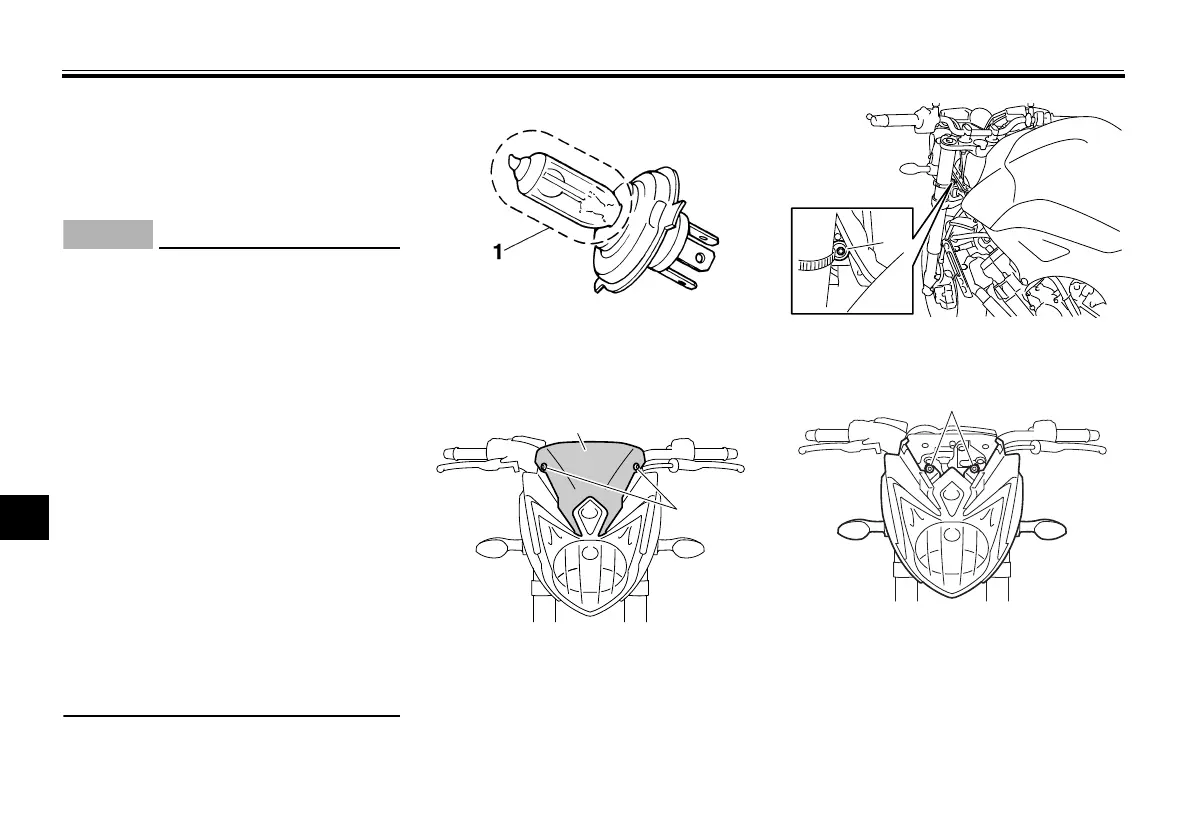

1. Do not touch the glass part of the bulb.
1. Headlight unit top cover
2. Bolt
1. Bolt
1. Headlight unit bolt
