PERIODIC MAINTENANCE AND ADJUSTMENT
7-34
7

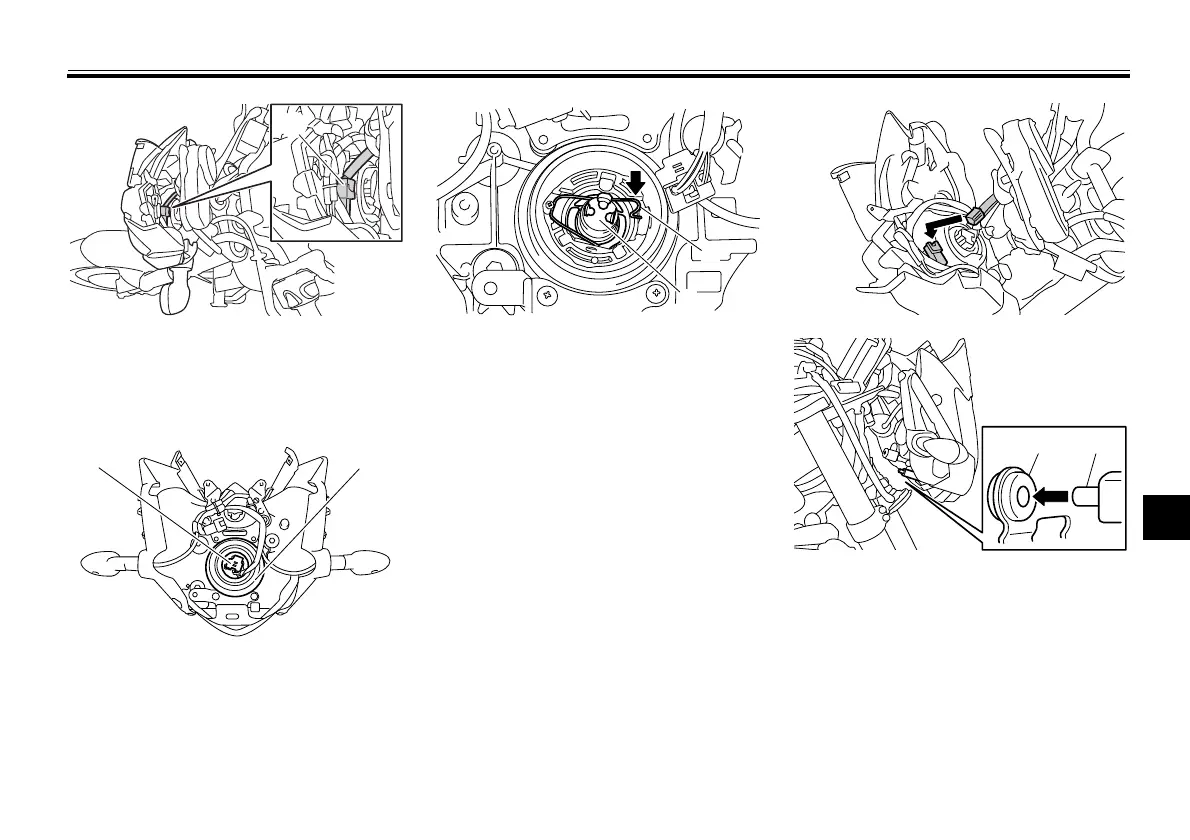

5. Disconnect the headlight coupler,
then remove the headlight bulb
cover.
6. Unhook the headlight bulb holder,
then remove the burnt-out bulb.
7. Place a new headlight bulb into po-
sition, then secure it with the bulb
holder.
8. Install the headlight bulb cover,
then connect the headlight cou-
pler.
9. Connect the coupler, then insert
the projection on the headlight unit
into the grommet on the vehicle to
fit the headlight unit in its original
position.
10. Install the headlight unit bolts.
11. Install the bolt behind the headlight
unit.
12. Place the top cover in its original
position, and then install its bolts.
1. Coupler
1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
2. Headlight bulb
1. Projection
2. Grommet
