APPENDIX ➤ Ideal speaker layout En 122
Use this diagram as a guide. You do not need to adjust the speaker layout to the following diagram exactly.

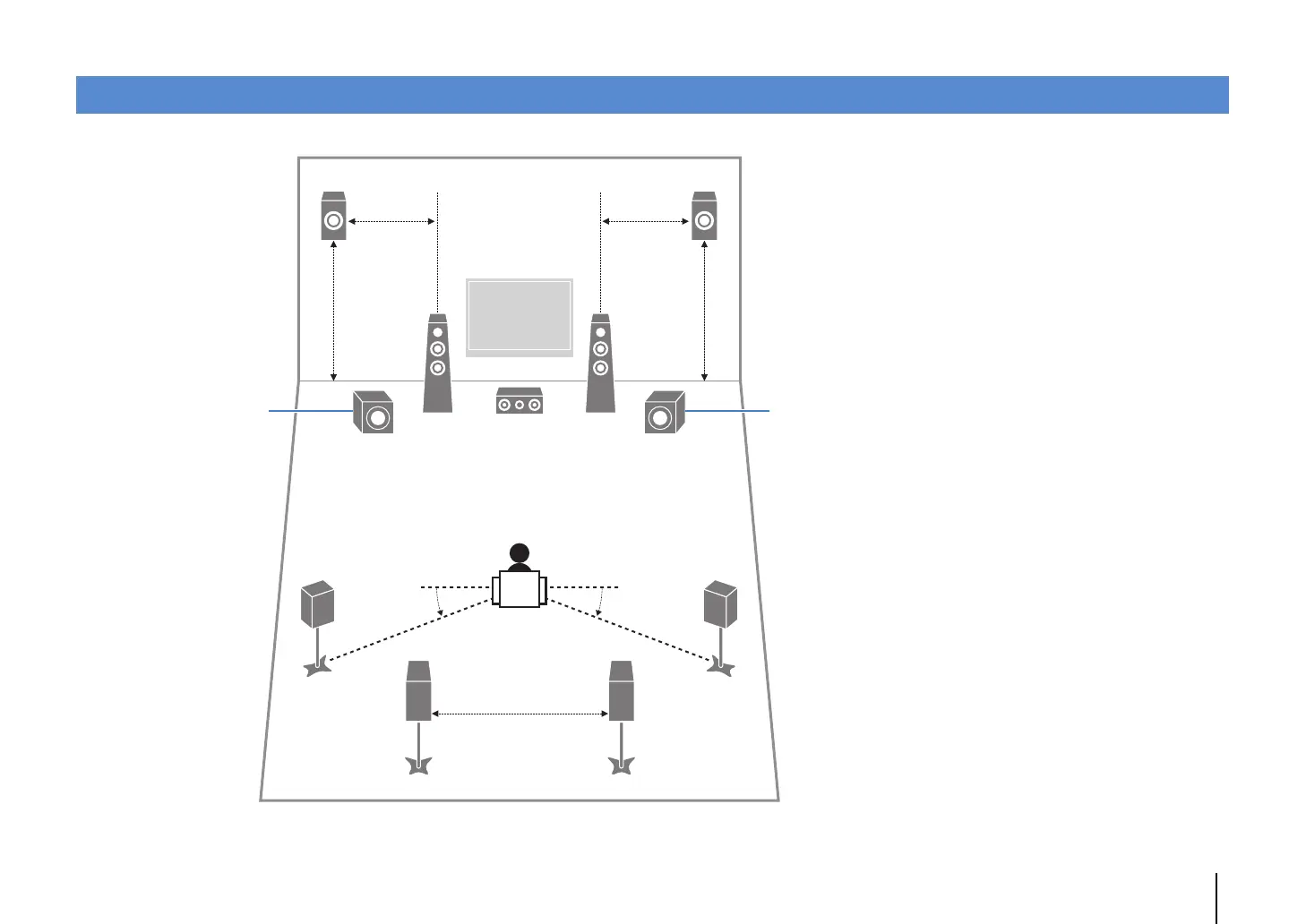

Ideal speaker layout
12
3
45
6 7
99
QW
0.3 m (1 ft) or more
0.5 to 1 m
(1.6 to 3.3 ft)
1.8 m
(5.9 ft)
0.5 to 1 m
(1.6 to 3.3 ft)
1.8 m
(5.9 ft)
Turn it slightly inward to
reduce wall reflections.
Turn it slightly inward to
reduce wall reflections.
1 Front speaker (L)
2 Front speaker (R)
3 Center speaker
4 Surround speaker (L)
5 Surround speaker (R)
6 Surround back speaker (L)
7 Surround back speaker (R)
Q Presence speaker (L)
W Presence speaker (R)
9 Subwoofer
10° to 30°10° to 30°
