CAMSHAFT
5-14
EAS23760
CAMSHAFT

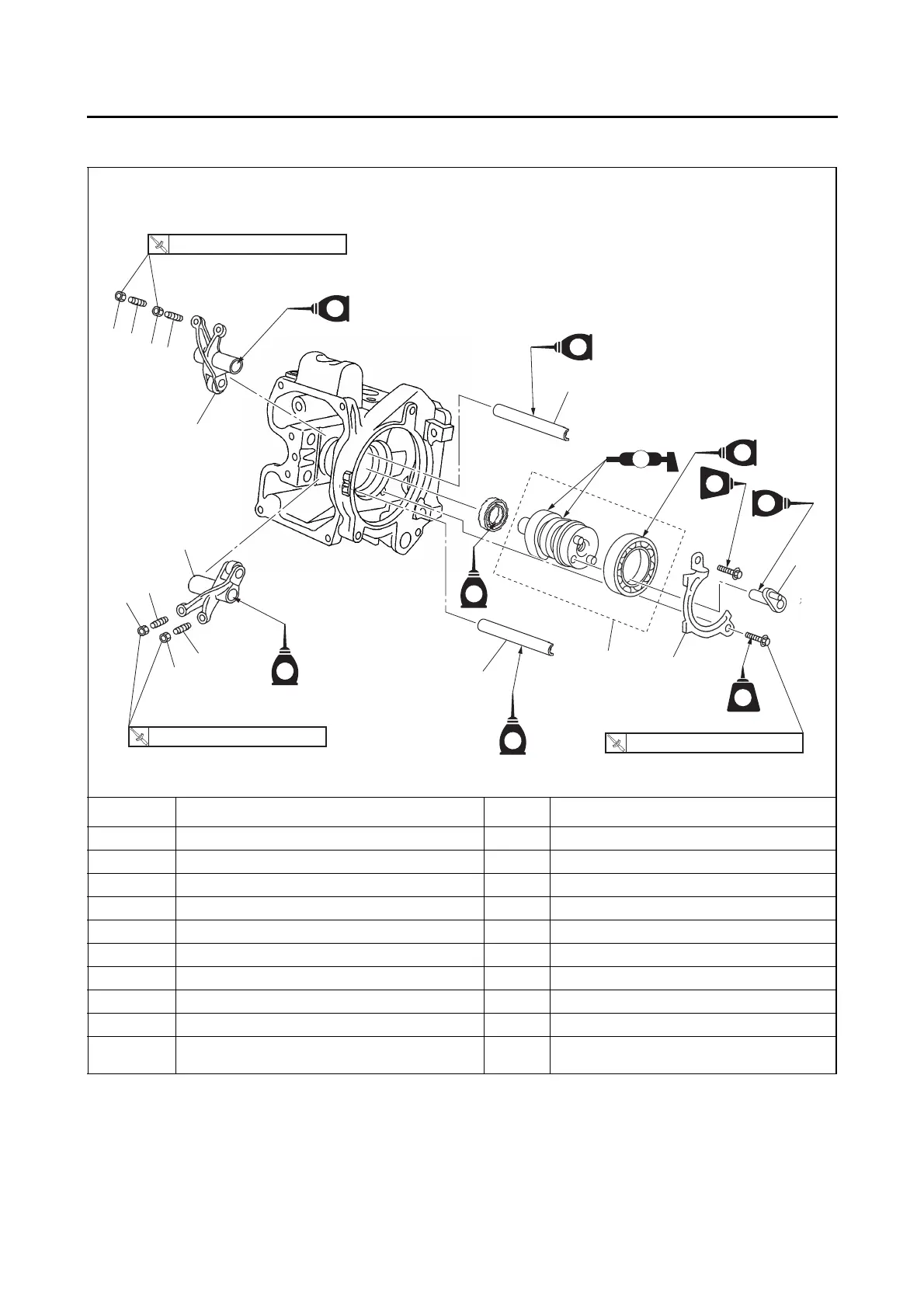

Removing the rocker arms and camshaft
Order Job/Parts to remove Q’ty Remarks
Cylinder head Refer to “CYLINDER HEAD” on page 5-7.
1 Locknut 4
2 Adjusting screw 4
3 Decompression cam 1
4 Camshaft retainer 1
5 Camshaft 1
6 Rocker arm shaft 2
7 Intake rocker arm 1
8 Exhaust rocker arm 1
For installation, reverse the removal proce-
dure.
1
2
1
2
7
3
4
5
6
6
2
1
2
1
8
M
E
M
E
E
E
E
M
LT
LT
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R
.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
