WATER PUMP
6-6
EAS26500
WATER PUMP

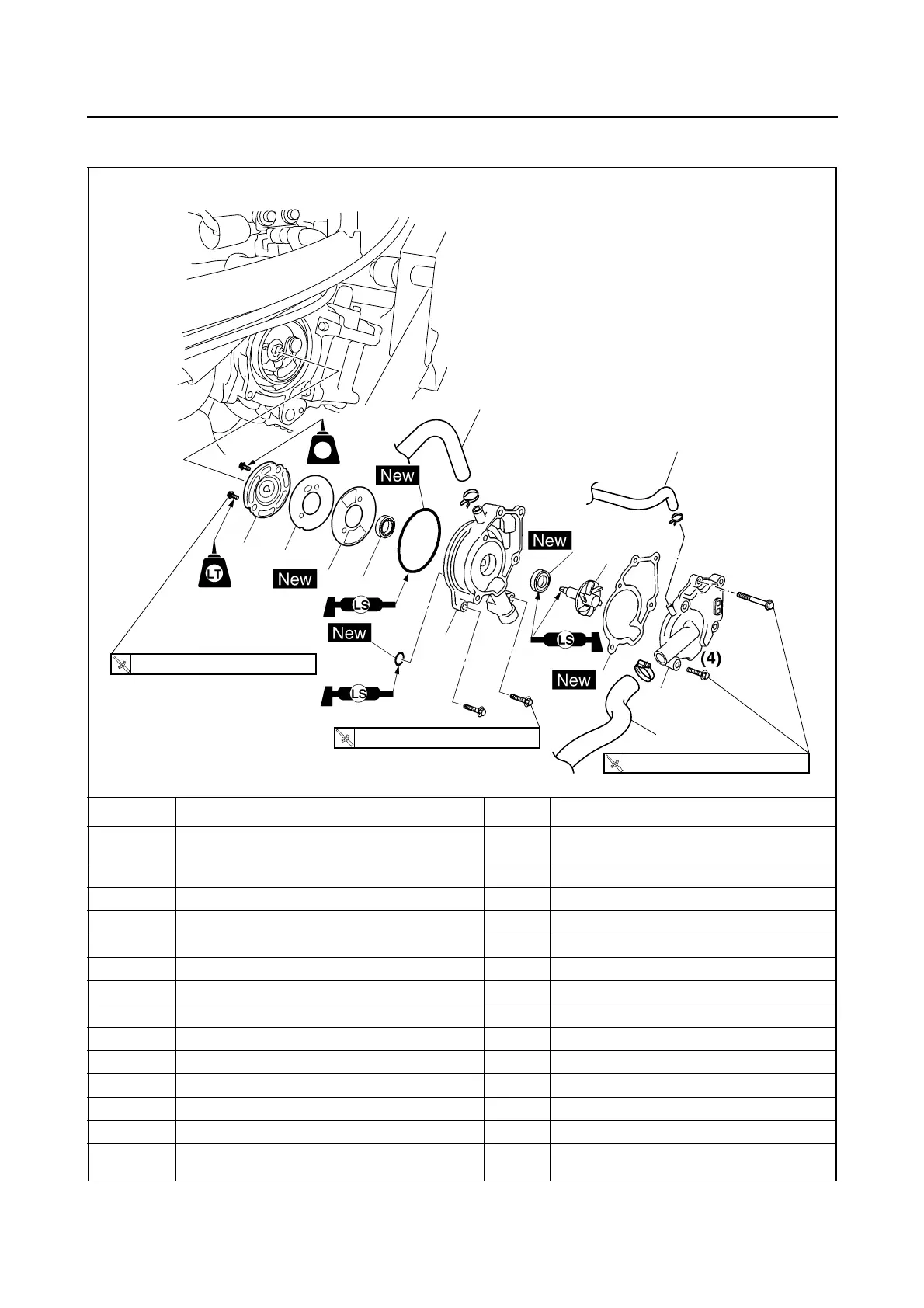

Removing the water pump
Order Job/Parts to remove Q’ty Remarks
Storage box/Footrest board
Refer to “GENERAL CHASSIS” on page
4-1.
1 Thermostat inlet hose 1 Disconnect.
2 Water pump inlet hose 1 Disconnect.
3 Water pump housing cover 1
4 Water pump housing cover gasket 1
5 Cylinder head breather hose 1 Disconnect.
6 Water pump housing 1
7 Water pump housing plate 1 1
8 Water pump housing plate 2 1
9 Water pump housing plate gasket 1
10 Impeller shaft 1
11 Water pump seal 1
12 Bearing 1
For installation, reverse the removal proce-
dure.
2
3
4
11
10
6
5
7
8
9
12
1
LT
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
