DESCRIPTION
2-1
2
EAU10410
Left view
12 3 8 94,5,6,7
101112

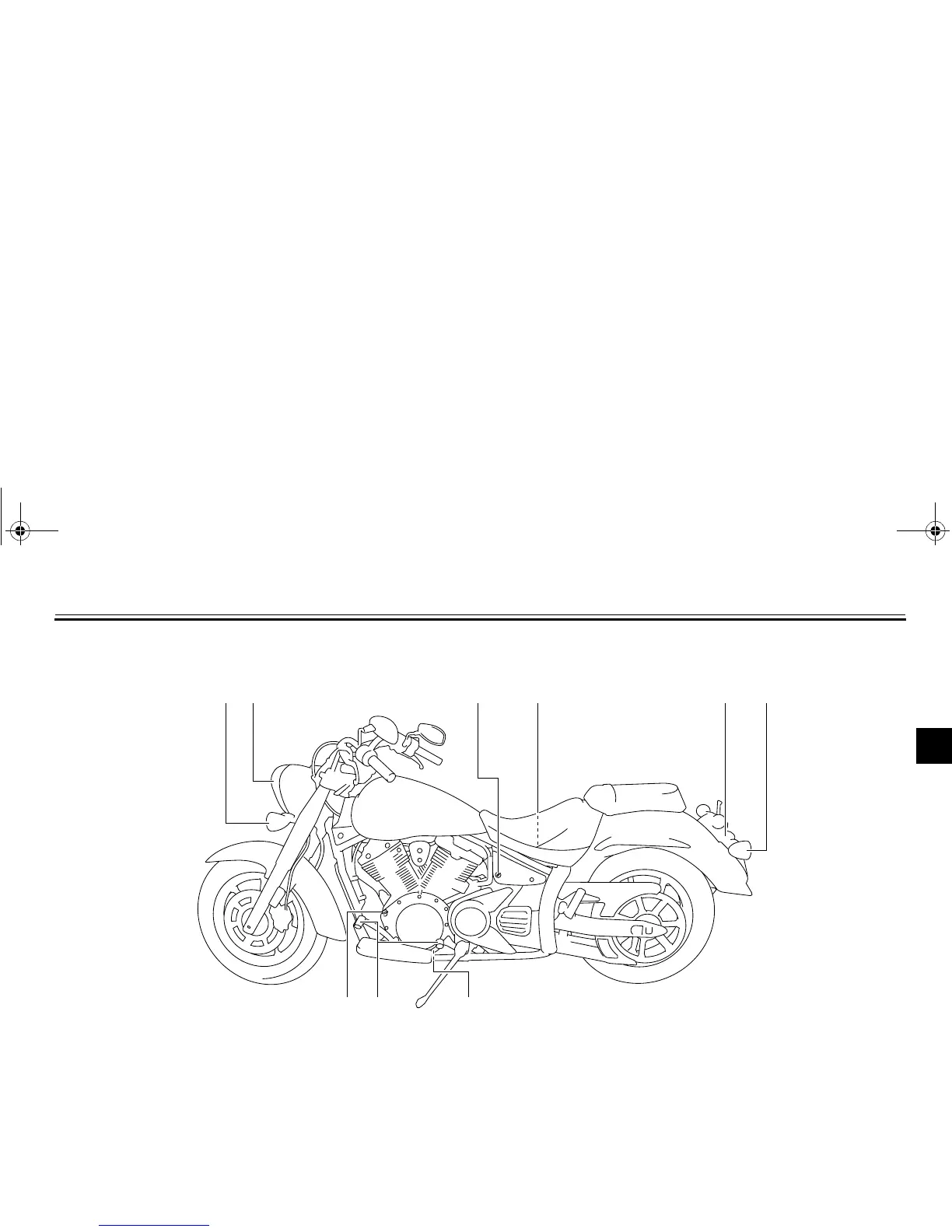

1. Front turn signal light (page 6-31)
2. Headlight (page 6-29)
3. Seat lock (page 3-16)
4. Fuel injection system fuse (page 6-28)
5. Fuse box (page 6-28)
6. Main fuse (page 6-28)
7. Helmet holder (page 3-16)
8. License plate light (page 6-32)
9. Rear turn signal light (page 6-31)
10.Engine oil level check window (page 6-10)
11.Shift pedal (page 3-12)
12.Engine oil filler cap (page 6-10)
