6

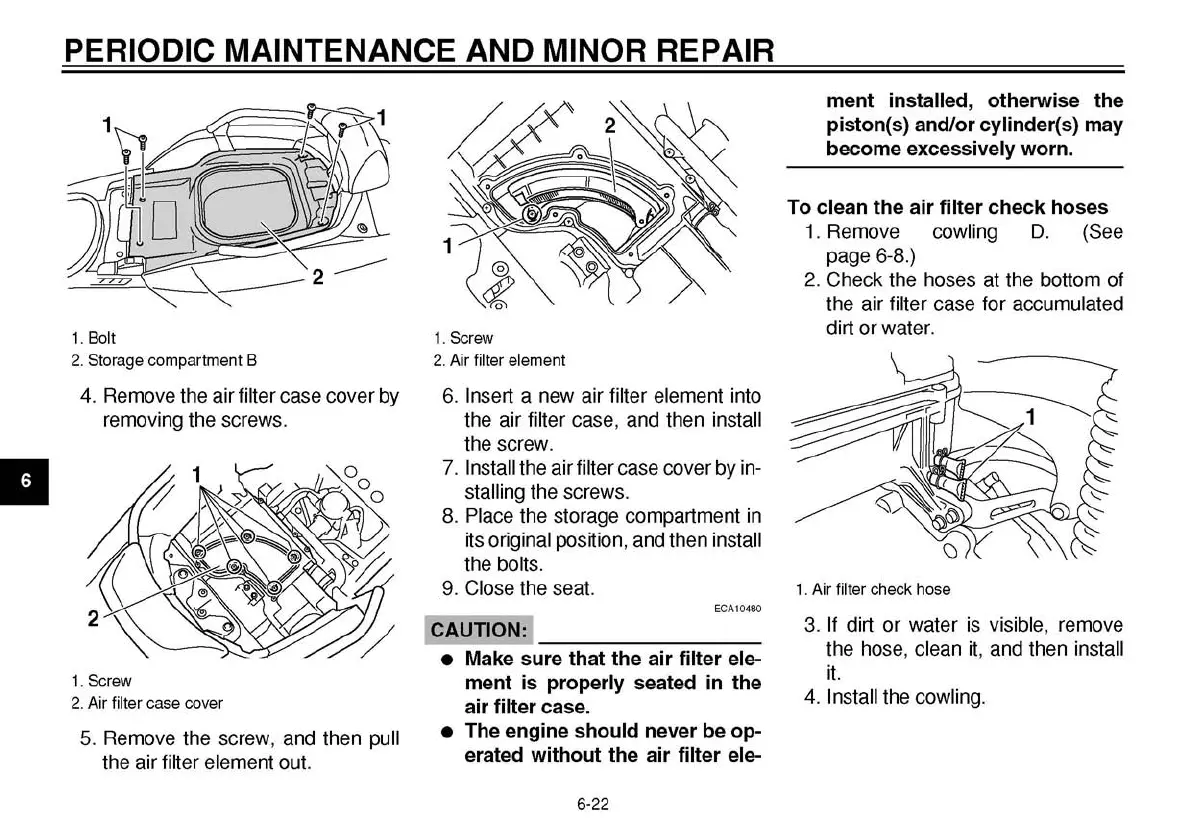

PERIODIC MAINTENANCE AND MINOR REPAIR
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
1.
Bolt
2.
Storage compartment B
4.
Remove the air filter case cover by
removing the screws.
1.
Screw
2.
Air filter element
6. Insert a new air filter element into
the air filter case, and then install
the screw.
7. Install the air filter case cover by in-
stalling the screws.
8. Place the storage compartment in
its original position, and then install
the bolts.
9. Close the seat.
To clean the air filter check hoses
1.
Remove cowling D. (See
page 6-8.)
2.
Check the hoses at the bottom of
the air filter case for accumulated
dirt or water.
—'
i<
i^0k4V
~\^1 i<
3§S\
o) \(V
CAUTION:
ECA10480
1.
Screw
2.
Air filter case cover
5. Remove the screw, and then pull
the air filter element out.
•
•
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
The engine should never be op-
erated without the air filter ele-
1.
Air filter check hose
3. If dirt or water is visible, remove
the hose, clean it, and then install
it.
4.
Install the cowling.
6-22
