PERIODIC MAINTENANCE AND MINOR REPAIR
down.
the low beam headlight, or connect
both couplers if replacing the high
beam headlight.
7. Install the headlight bulb cover by
turning it clockwise.
8. Install the cowling.
9. Have a Yamaha dealer adjust the
headlight beam if necessary.
Tail/brake light
EAU24180
6
5. Place a new headlight bulb into po-
sition,
and then secure it with the
bulb holder.
ECA10660
CAUTION:
Do not touch the glass part of the
headlight bulb to keep it free from
oil,
otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
fected.
Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-
cohol or thinner.
This model is equipped with an LED
type of tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.

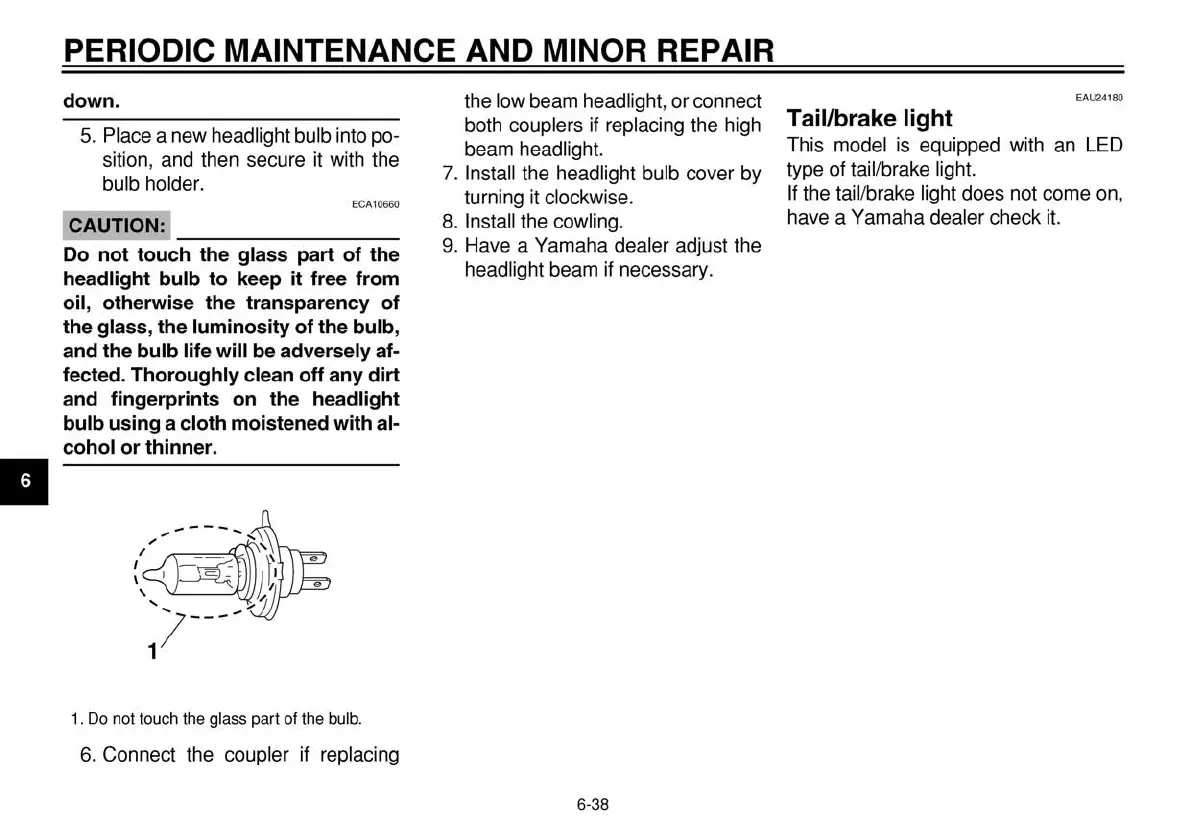

1.
Do not touch the glass part of the bulb.
6. Connect the coupler if replacing
6-38
