Quick Guide — Advanced Course
Using as a Master Keyboard
140
Owner’s Manual
Assigning Control Change numbers to the Knobs/Sliders for each Zone
Here in the KN/CS display of the Master Edit mode, you can set how the Control Knobs and Sliders will affect each Zone. This
lets you specify a separate MIDI Control Change number for each Knob and Slider.

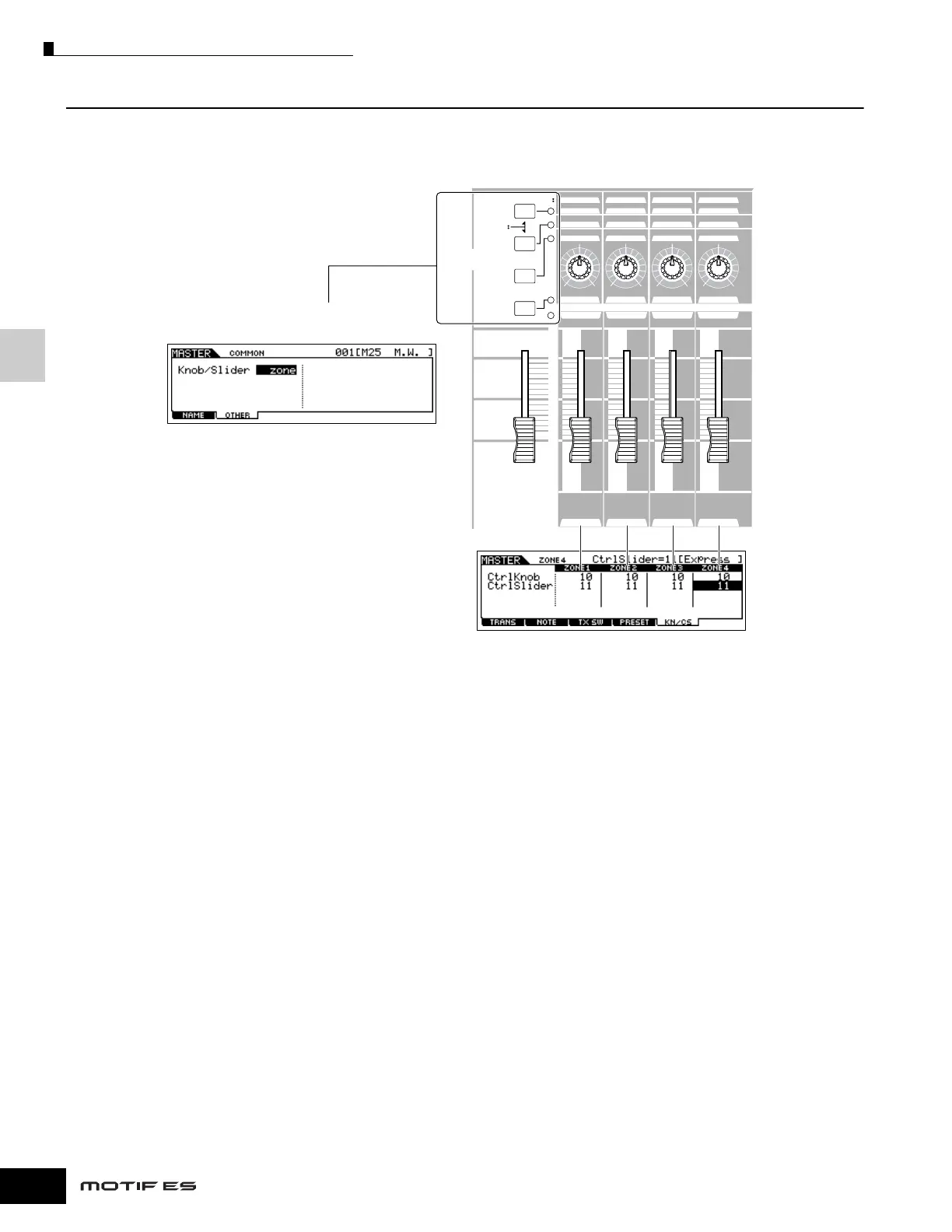

Set the parameters as shown below, corresponding to step #6 on page 138.
In the example above, the Control Knobs for all Zones have been set to 10 (Pan), and the Sliders have been set to 11
(Expression). In this way, you can control the stereo position of each Zone with the appropriate Knob, and use the Sliders to
adjust the relative volume balance among the Zones.
