MOX6/MOX8 Reference Manual
24
Reference
This section provides a detailed description of the parameters used to configure your MOX6/MOX8.

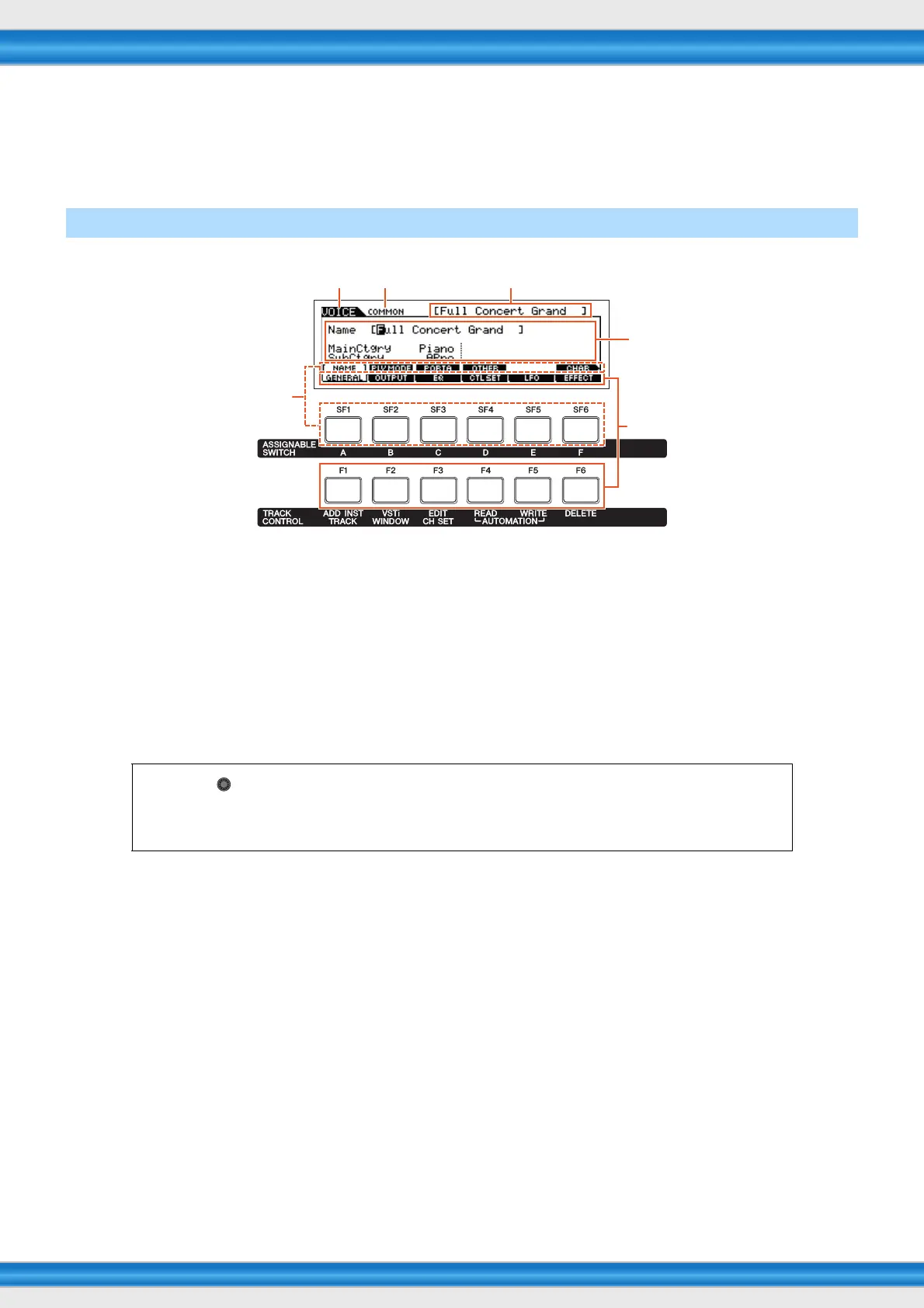

1 Indicates the selected Track.
2 Indicates the current edit status; for example, Common edit or Part edit.
3 Indicates the Voice/Performance/Song/Pattern/Master that is currently selected for editing.
4 Indicates the currently editable parameters.
5 Indicates the various displays categorized by function in tab format. Pressing the [F1] – [F6] (Function button) allows you to jump to the
display for the corresponding function.
6 Indicates the various displays categorized by the sub function in tab format (when the tab you selected in 5 above has sub functions).
Pressing the [SF1] – [SF6] (Sub Function button) allows you to jump to the display for the corresponding sub function.
Display’s Basic Configuration
About the icons
In the Reference section, the parameters marked by this icon can be changed directly via the appropriate Knob
on the panel.
12 3
4
5
6
Knob

Yamaha MOX8 Specifications

General

Polyphony	64 notes
Arpeggiator	6, 720 types
Display	240 x 64 dot LCD
Sound Engine	AWM2
Multitimbral Capacity	16 parts
Wave ROM	355MB (when converted to 16-bit linear format)
Keyboard	88-key, Graded Hammer Standard (GHS) keyboard
Effects	Reverb, Chorus, Insertion Effects, Master Effects, EQ
Sequencer	16-track
Connectivity	USB, MIDI In/Out, Phones, Output L/Mono, R, Foot Controller, Footswitch, Damper
Dimensions	1, 320 x 405 x 168 mm
