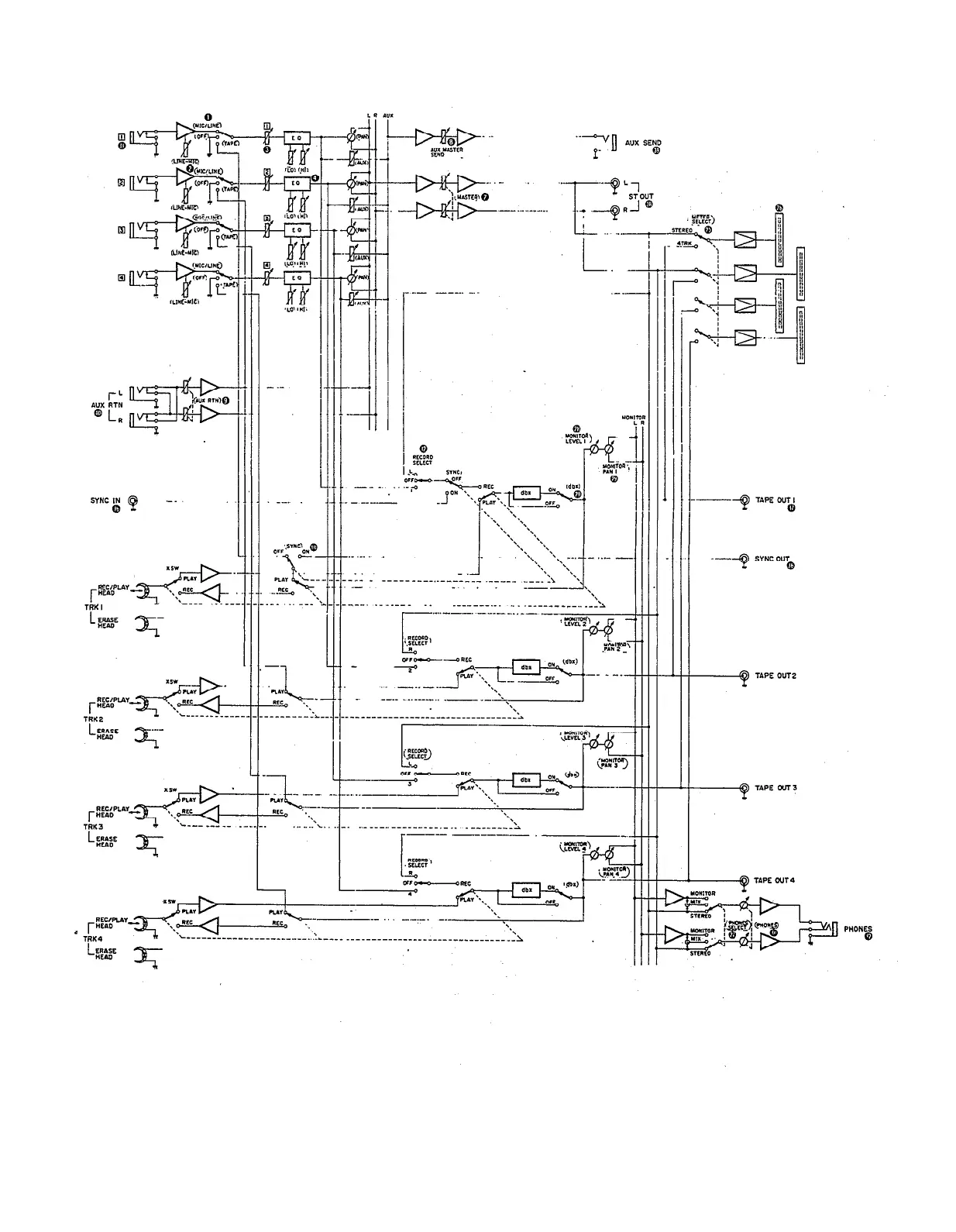

BLOCK DIAGRAM
NOTE:
When the REC button is engaged, the panel switches can be used to individually order
recording on only those channels with RECORD SELECT not switched “OFF”.
