Controls and Connections 12
User’s Guide

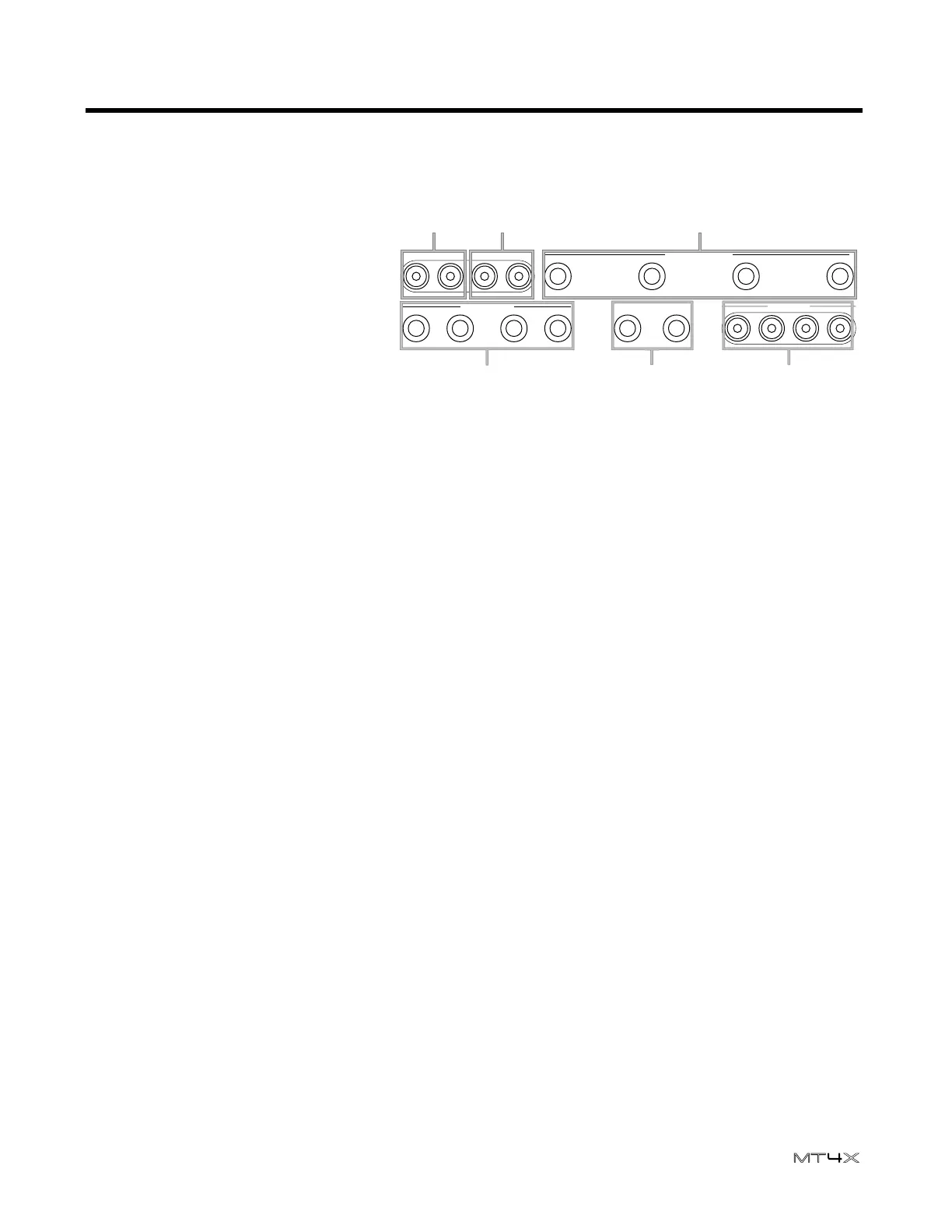

Rear Panel Connections
f MONITOR OUT
connections
• Output impedance: 1 kΩ
• Nominal output level:
-10 dB (at 10 kΩ load)
These RCA/Phono connectors
are used to plug in a monitor
amplifier or powered
loudspeakers. The same signal
which is output from the
PHONES connector (d) is also
output from these connectors.
AUX RETURN
2
L/MONO
1
L/MONO
STEREO OUT
LR
MONITOR OUT
LR
TAPE OUT
312SYNC/4
AUX SEND
12
MIC/LINE INPUT
3124
RR
gf h
i
j k
g STEREO OUT connections
• Output impedance: 1 kΩ
• Nominal output level: -10 dB (at 10 kΩ load)
These RCA/Phono connectors are used to output the final stereo mixdown to the master recorder —
typically, a stereo tape deck.
h MIC/LINE INPUT connections
• Input impedance: 10 kΩ
• Nominal input level: -10 dB to -50 dB
These 1/4” phone connectors are used to input microphones, electronic instruments, and line-level
sources.
i AUX RETURN (1, 2) connections
• Input impedance: 10 kΩ
• Nominal input level: -10 dB (AUX RETURN - LEVEL control nominal)
These 1/4” phone connectors are used to input the signals from external effects devices and other
signal processors. If the external device is monaural, plug it into one of the L/MONO connectors.
j AUX SEND (1, 2) connections
• Output impedance: 1 kΩ
• Nominal output level: -10 dB (at 10 kΩ load)
These 1/4” phone connectors are used to output signals to external effects devices and other signal
processors.
k TAPE OUT (1 to 4/SYNC) connections
• Output impedance: 1 kΩ
• Nominal output level: -10 dB (at 10 kΩ load)
These RCA/Phono connectors are used to output the individual tracks directly from the recorder
section of the MT4X.
