PERIODIC MAINTENANCE
3-35
pletely by the rubber cover.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS30816
CHECKING AND CHARGING THE BATTERY
Refer to “CHECKING AND CHARGING THE
BATTERY” on page 8-195.
EAS30662
CHECKING THE FUSES
Refer to “CHECKING THE FUSES” on page
8-194.
EAS30664

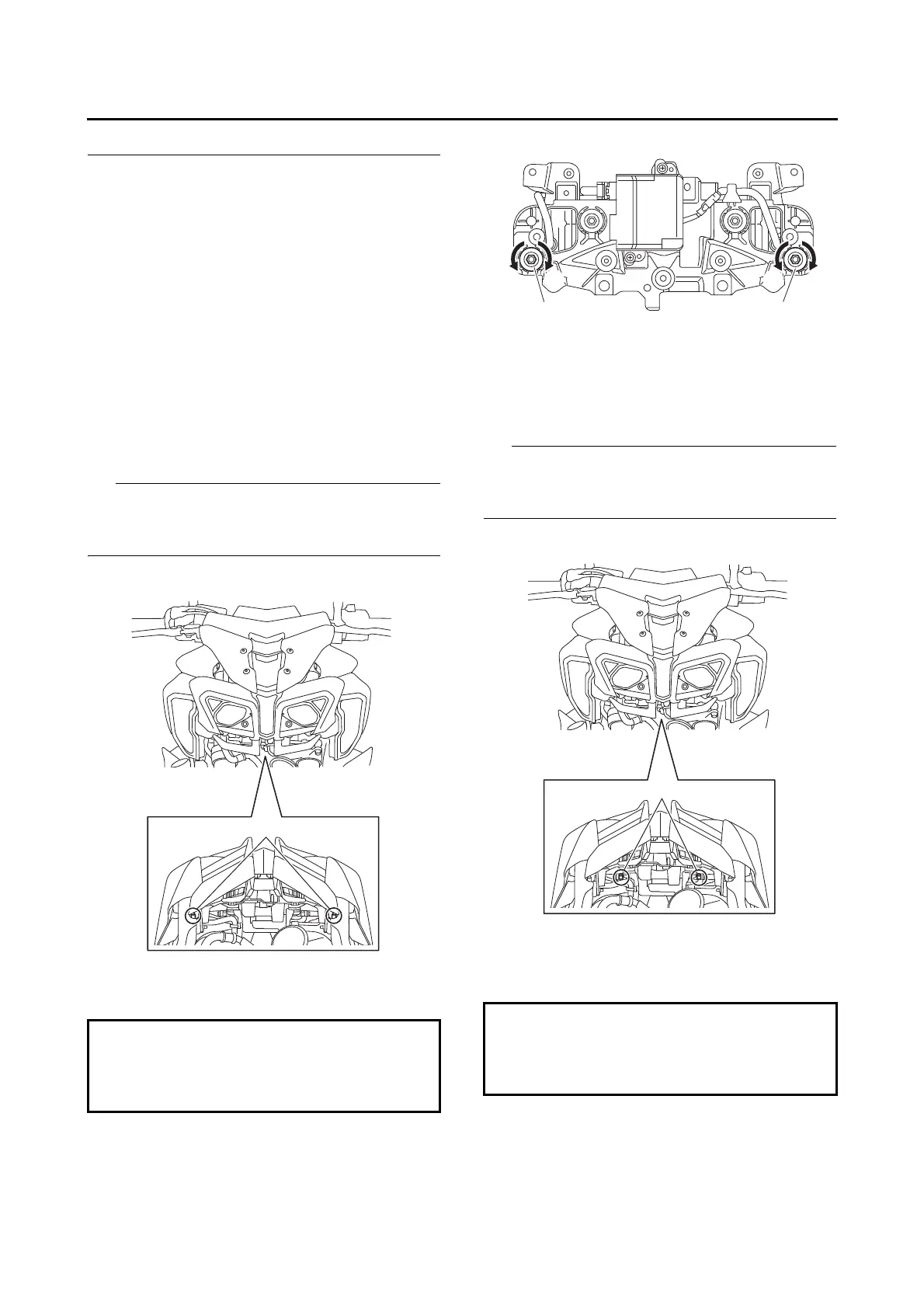

ADJUSTING THE HEADLIGHT BEAMS
1. Adjust:
• Headlight beam (vertically)
TIP
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
To adjust the headlight beam (vertically), insert
a crosshead screwdriver into the holes “a” and
turn the adjusting screw.
a. Turn the adjusting screws “1” in direction “b”
or “c”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Adjust:
• Headlight beam (horizontally)
TIP
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
To adjust the headlight beam (horizontally), in-
sert a crosshead screwdriver into the holes “a”
and turn the adjusting screw.
a. Turn the adjusting screws “1” in direction “b”
or “c”.
Left headlight
Direction “b”
Headlight beam is raised.
Direction “c”
Headlight beam is lowered.
a
Direction “b”
Headlight beam moves to the right.
Direction “c”
Headlight beam moves to the left.
1
c
b
1
c
b
a

Yamaha MTN1000 2016 Specifications

General

Model	MTN1000
Year	2016
Manufacturer	Yamaha
Engine Displacement	998cc
Bore x Stroke	79.0 mm x 50.9 mm
Fuel System	Fuel Injection
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Overall Length	2095 mm
Overall Width	800 mm
Overall Height	1110 mm
Seat Height	825 mm
Wheelbase	1400 mm
Ground Clearance	130 mm
Category	Naked
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Ignition	TCI
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brake	Dual hydraulic disc
Rear Brake	220mm hydraulic disc
Fuel Capacity	17L
