OIL PUMP
5-50
EAS30345

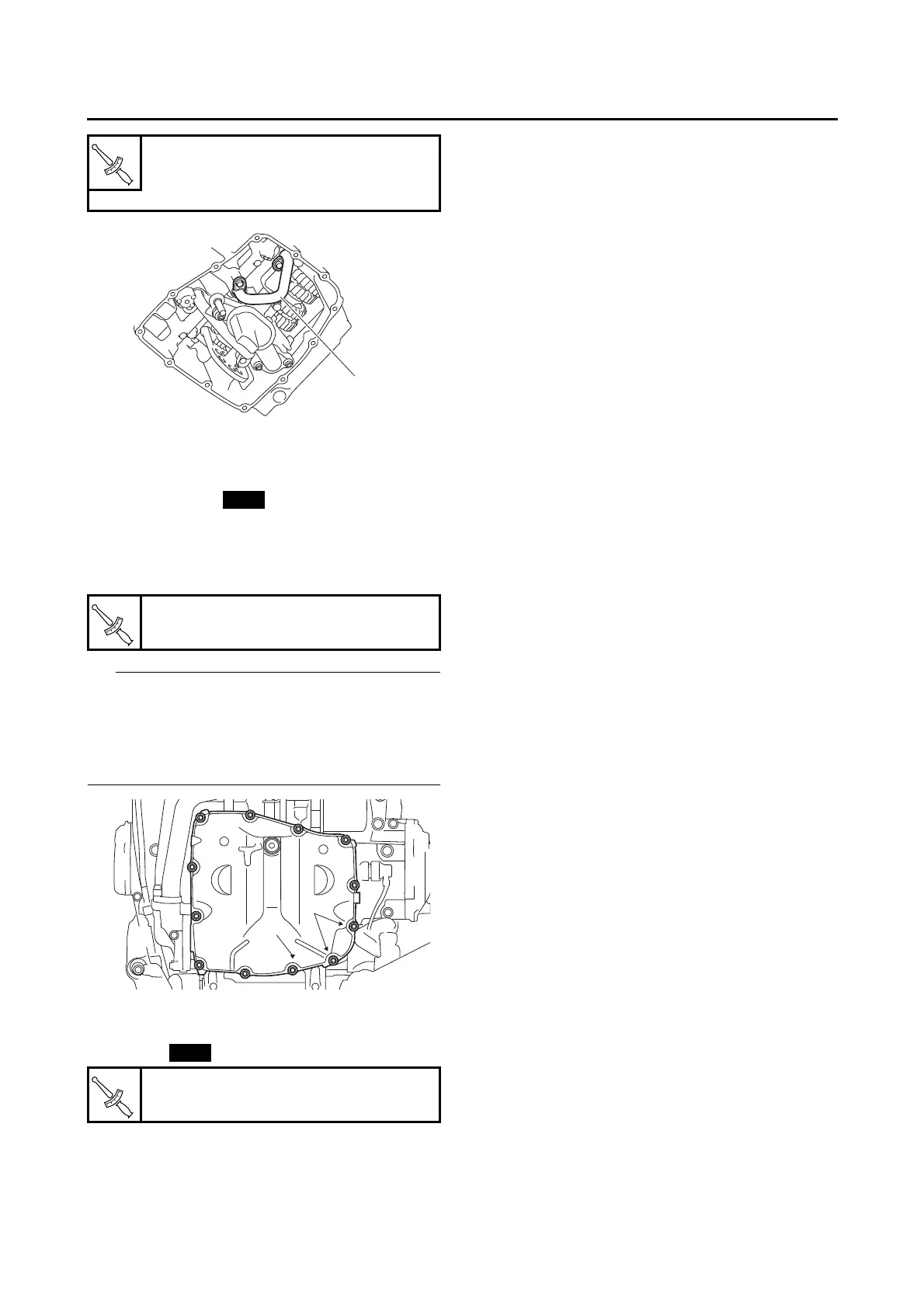

INSTALLING THE OIL PAN
1. Install:
• Oil pan gasket
• Oil pan
• Oil pan bolt
2. Tighten:
• Oil pan bolt
TIP
• Apply locking agent (LOCTITE®) to the bolts
installed in the bolt holes marked with arrows
“a” on the oil pan.
• Tighten the oil pan bolts in stages and in a
crisscross pattern.
3. Install:
• Engine oil drain bolt
• Gasket
Oil delivery pipe 2 bolt
10 N·m (1.0 kgf·m, 7.2 lb·ft)
LOCTITE®
Oil pan bolt
12 N·m (1.2 kgf·m, 8.7 lb·ft)
Engine oil drain bolt
23 N·m (2.3 kgf·m, 17 lb·ft)
T
R
.
.
1
New
T
R
.
.
a
a
New
T
R
.
.
