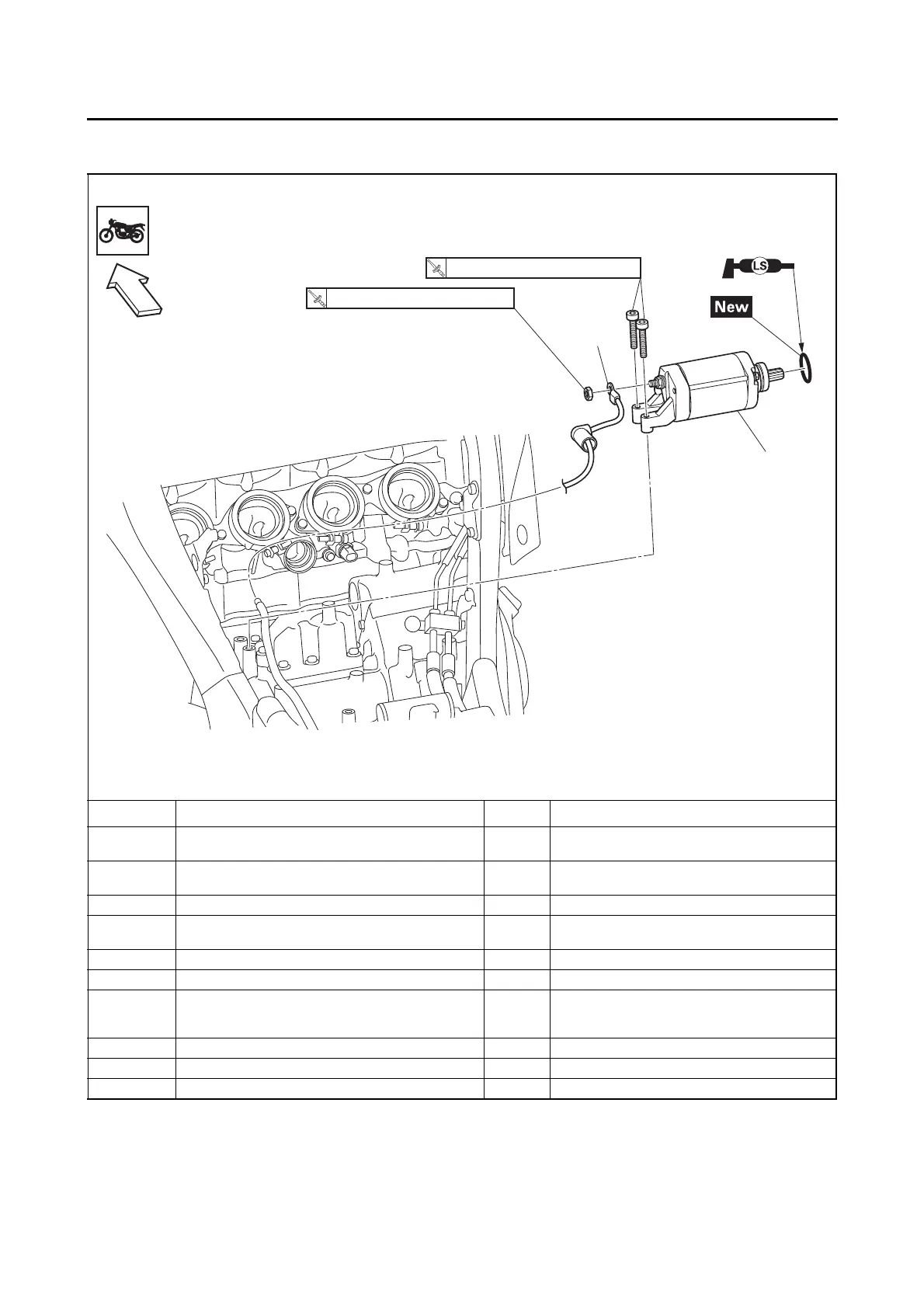

ELECTRIC STARTER
5-40
EAS20052
ELECTRIC STARTER
Removing the starter motor
Order Job/Parts to remove Q’ty Remarks
Rider seat/Air scoop/Air scoop stay
Refer to “GENERAL CHASSIS (1)” on page
4-1.
Fuel tank cover
Refer to “GENERAL CHASSIS (2)” on page
4-13.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case
Refer to “GENERAL CHASSIS (3)” on page
4-20.
Canister Refer to “FUEL TANK” on page 7-1.
Throttle bodies Refer to “THROTTLE BODIES” on page 7-5.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-29.
Thermostat Refer to “THERMOSTAT” on page 6-6.
1 Starter motor lead 1 Disconnect.
2 Starter motor 1
FWD
FWD
1
2
6 N・m (0.6 kgf・m, 4.3 lb・ft)
10 N・m (1.0 kgf・m, 7.2 lb・ft)
