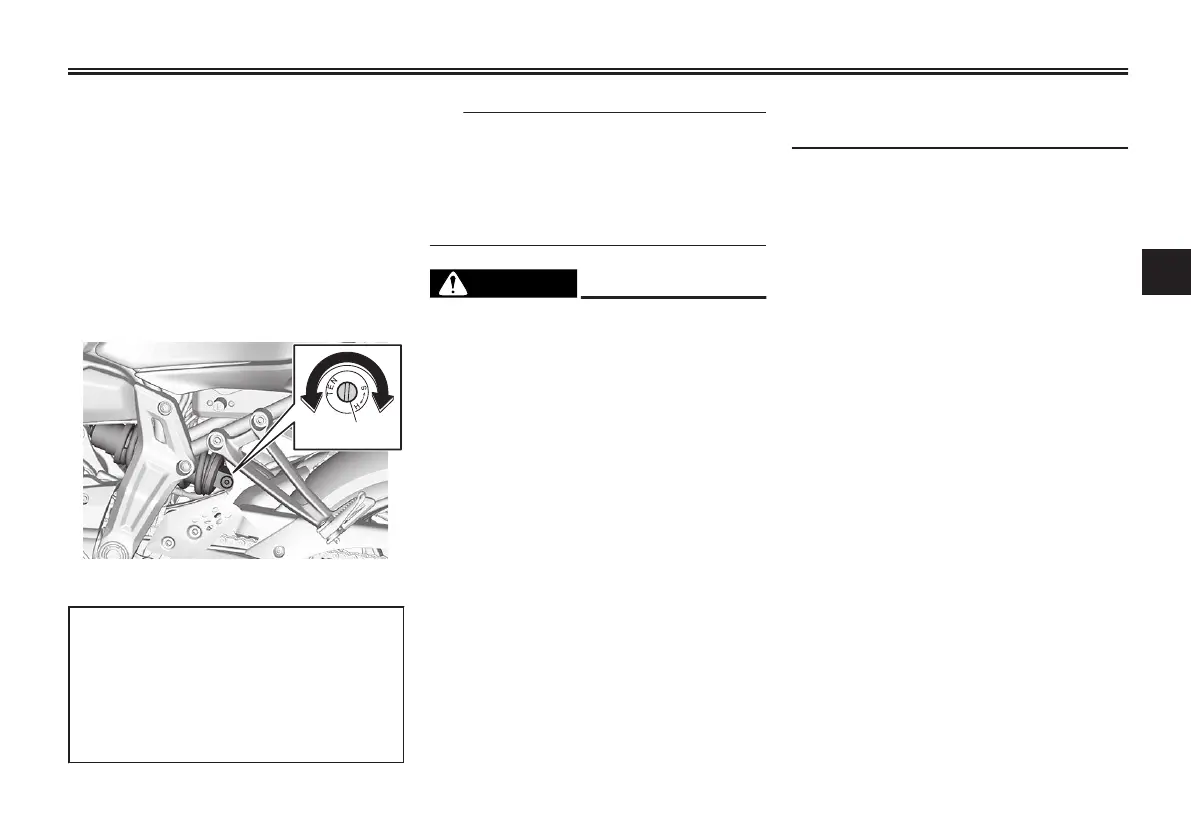

Rebound damping force
Tu
rn the adjusting screw in direction (a)
to increase the rebound damping
force.
Turn the adjusting screw in direction (b)
to decrease the rebound damping
force.
To set the rebound damping force, turn
the adjuster in direction (a) until it stops,
and then count the turns in direction (b).
1. Rebound damping force adjusting screw
Rebound damping setting:
Mi
nimum (soft):
2.5 turn(s) in direction (b)
Standard:
1.5 turn(s) in direction (b)
Maximum (hard):
0 turn(s) in direction (b)
When turning t
he damping force ad-
juster in direction (b), it may turn be-
yond the stated specifications,
however such adjustments are ineffec-
tive and may damage the suspension.
EWA10222
This shock a
bsorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
l Do not tamper with or attempt to
open the cylinder assembly.
l Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.
l Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.
l Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamaha
de
aler for any service.
Instrument and control functions
4-25
