Ca
st wheels
To maximize the performance, durabili-
ty, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
l The wheel rims should be checked
for cracks, bends, warpage or oth-
er damage before each ride. If any
damage is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.
l The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
EAU33893
Adjusting the clutch lever free
play

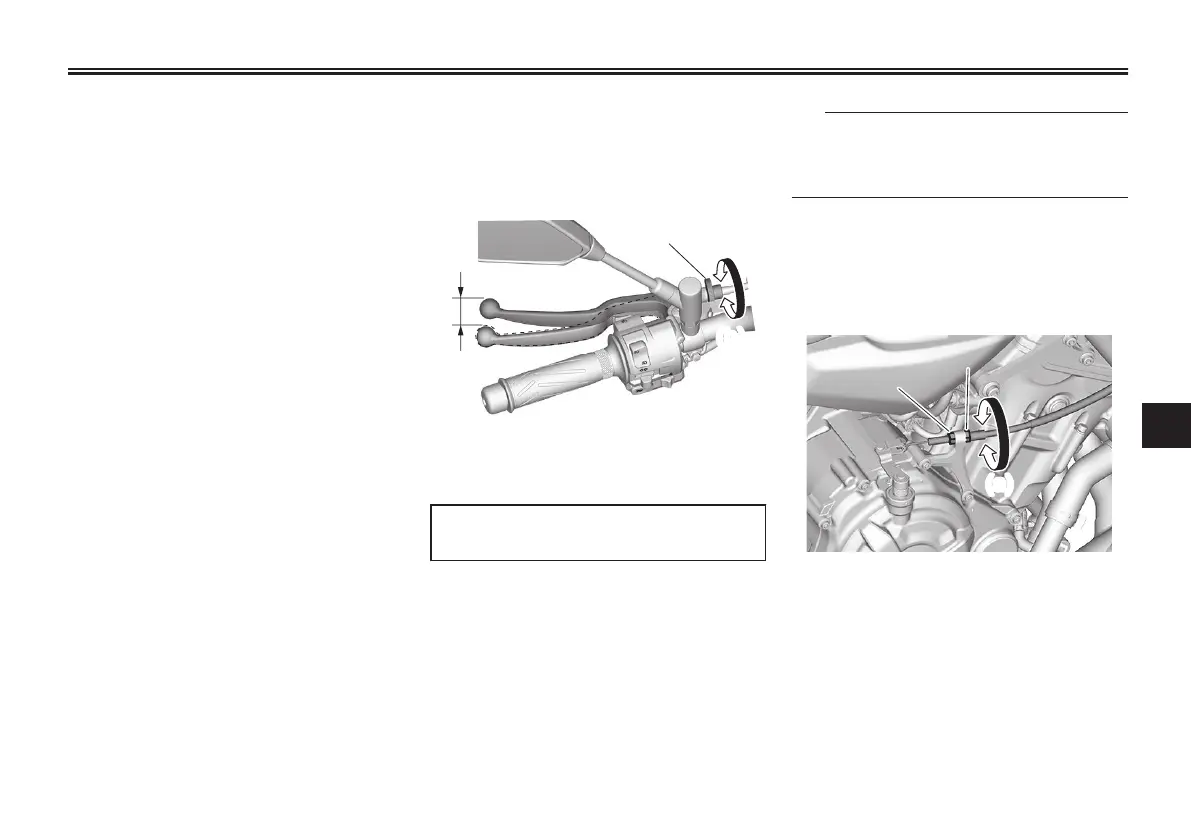

Measure the clutch lever free play as
shown.
1
2
(a)(a)
(b)
1. Clutch lever free play adjusting bolt
2. Clutch lever free play
Clutch lever free play:
5.
0–10.0 mm (0.20–0.39 in)
Periodically ch
eck the clutch lever free
play and, if necessary, adjust it as fol-
lows.
To increase the clutch lever free play,
turn the clutch lever free play adjusting
bolt at the clutch lever in direction (a).
To decrease the clutch lever free play,
turn the adjusting bolt in direction (b).
TIP
If the s
pecified clutch lever free play
cannot be obtained as described
above, proceed as follows.
1. Fully turn t
he adjusting bolt at the
clutch lever in direction (a) to loos-
en the clutch cable.
2. Loosen the locknut at the crank-
case.
11
22
(b)
(b)
(a)
(a)
1. Locknut
2. Clutch lever free play adjusting nut
3. To increase t
he clutch lever free
play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free play,
turn the adjusting nut in direction
(b).
4. Tighten the locknut.
