EAU59876
Re
placing the fuses

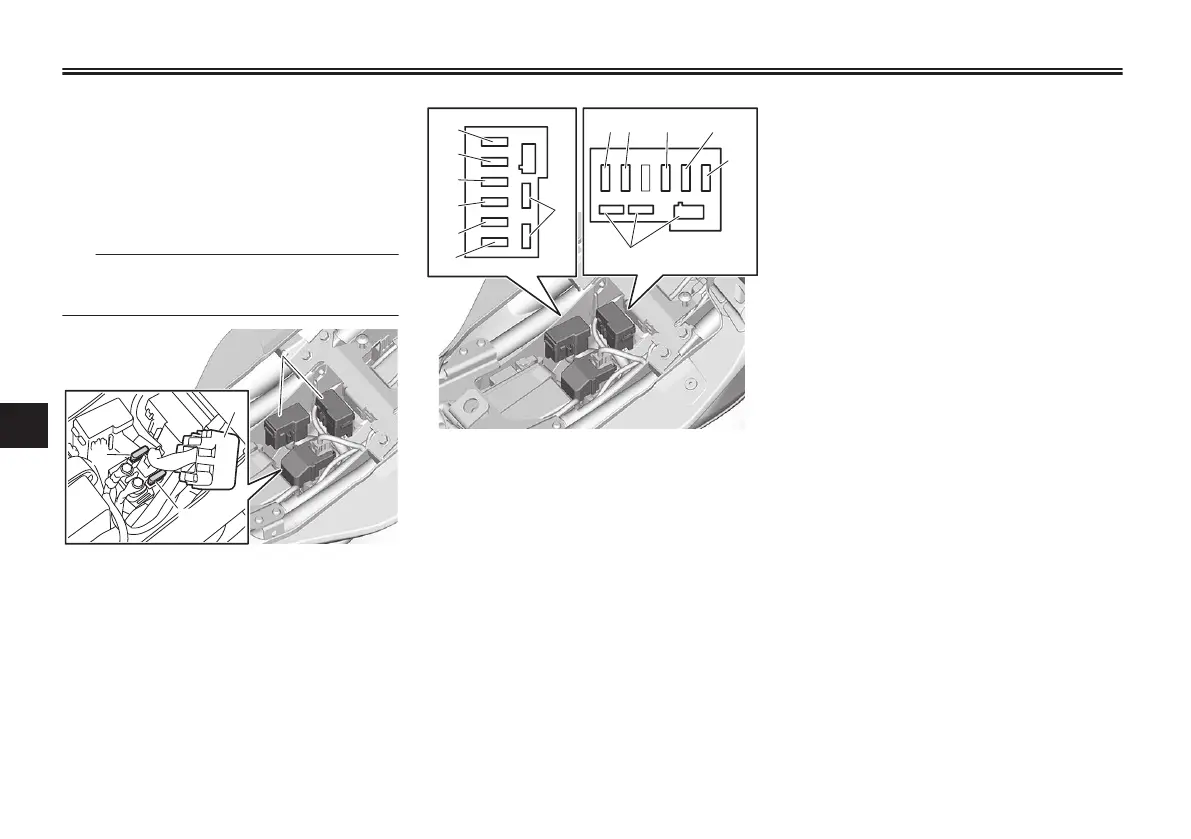

The main fuse and the fuse boxes,
which contain the fuses for the individ-
ual circuits, are located under the rider
seat. (See page 4-21.)
To access t
he main fuse, remove the
starter relay cover as shown.
1. Starter relay cover
2. Main fuse
3. Spare main fuse
4. Fuse box
1. Radiator fan motor fuse
2. Backup fuse (for clock and immobilizer
system)
3. Fuel injection system fuse
4. Headlight fuse
5. Signaling system fuse
6. Ignition fuse
7. Spare fuse
8. ABS solenoid fuse
9. ABS motor fuse
10.Accessory fuse
11.ABS ECU fuse
12.Terminal fuse 1
If a fuse is blown, replace it as follows.
1. Turn the k
ey to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.[EWA15132]
Periodic maintenance and adjustment
7-29
7
