Yamaha MTN690-U - Vehicle lights; Replacing a license plate light bulb

Specified fuses:
Ma
in fuse:
30.0 A
Terminal fuse 1:
3.0 A
Headlight fuse:
7.5 A
Signaling system fuse:
7.5 A
Ignition fuse:
7.5 A
Radiator fan motor fuse:
10.0 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
20.0 A
ABS ECU fuse:
7.5 A
Fuel injection system fuse:
10.0 A
Backup fuse:
7.5 A
Accessory fuse:
7.5 A
3. Turn the k
ey to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU80380

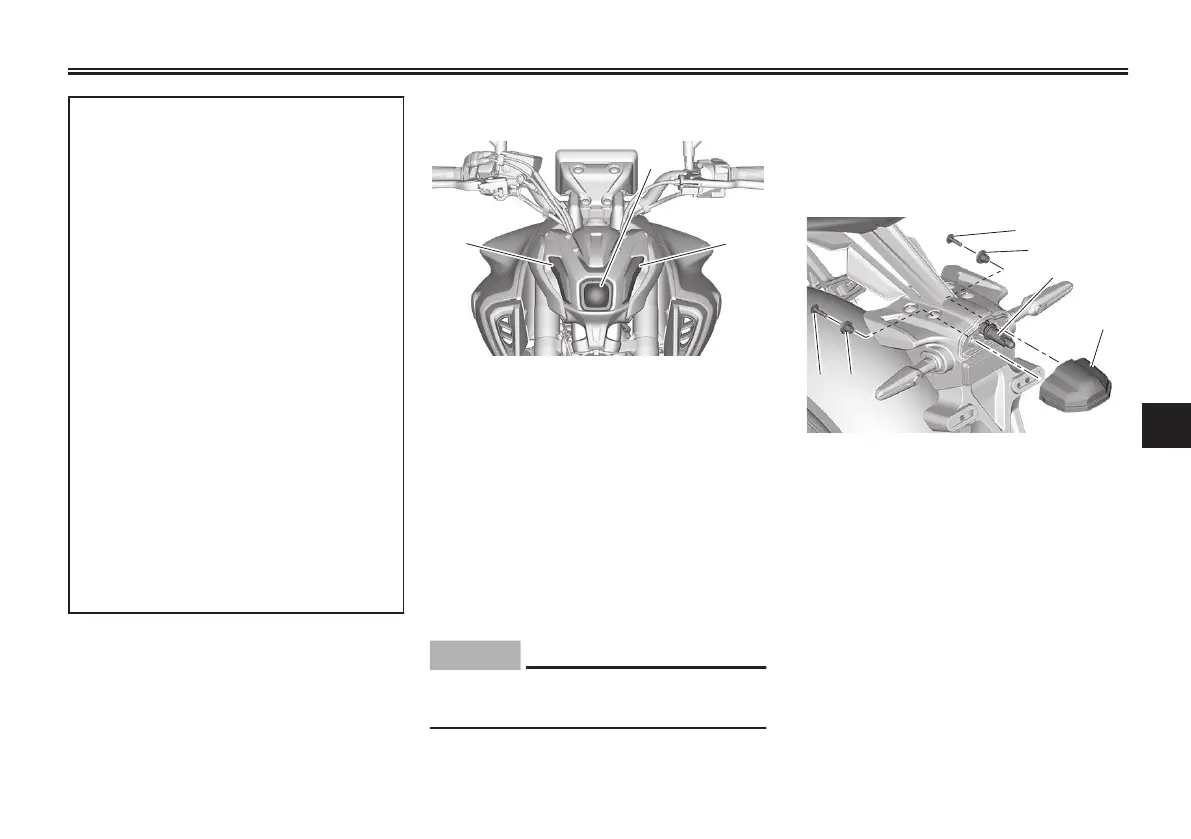

Vehicle lights
1
22
1. Headlight
2. Auxiliary light
Except for t
he license plate light bulb,
this model’s lights are all LED.
If an LED light does not come on, check
the fuses and then have a Yamaha
dealer check the vehicle. If the license
plate light does not come on, check
and replace the bulb. (See page
7-30.)
ECA16581
NOTICE
Do not affix any type of tinted film
or stickers to the headlight lens.
EAU92270
Re
placing a license plate light
bulb
1. Remove the license plate light unit
by removing the bolts and collars.
11
1
22
2
3
4
1. Bolt
2. Collar
3. License plate light bulb socket
4. License plate light unit
2. Remove the license plate light bulb
so
cket (together with the bulb) by
turning it counterclockwise, and
then pulling it out.
3. Remove the burnt-out bulb by
pulling it out.
