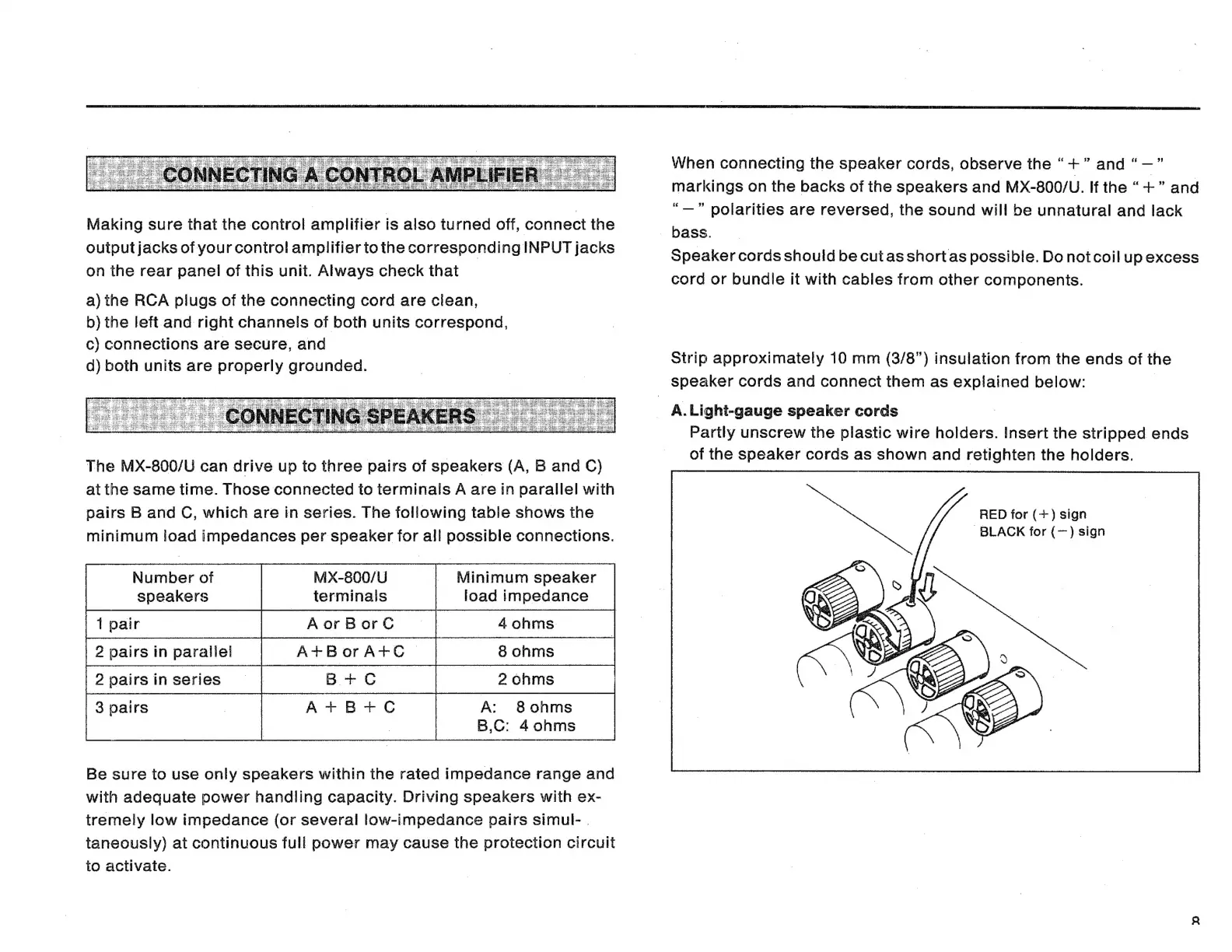

Making
sure
that
the
control
amplifier
is
also
turned
off,
connect
the
output
jacks
of
your
control
amplifier
to
the
corresponding
INPUT
jacks
on
the
rear
panel
of
this
unit.
Always
check
that
a)
the
RCA
plugs
of
the
connecting
cord
are
clean,
b)
the
left
and
right
channels
of
both
units
correspond,
c)
connections
are
secure,
and
d)
both
units
are
properly
grounded.
The
MX-800/U
can
drive
up
to
three
pairs
of
speakers
(A,
B
and
C)
at
the
same
time.
Those
connected
to
terminals
A
are
in
parallel
with
pairs
B
and
C,
which
are
in
series.
The
following
table
shows
the
minimum
load
impedances
per
speaker
for
all
possible
connections.
Number
of
MX-800/U
speakers
terminals
A+BorA+C
A:
8ohms
B,C:
4ohms
-=
Minimum
speaker
load
impedance
2
pairs
in
paraliel
2
pairs
in
series
`
Be
sure
to
use
only
speakers
within
the
rated
impedance
range
and
with
adequate
power
handling
capacity.
Driving
speakers
with
ex-
tremely
low
impedance
(or
several
low-impedance
pairs
simul-
.
taneously)
at
continuous
full
power
may
cause
the
protection
circuit
to
activate.
When
connecting
the
speaker
cords,
observe
the
+”
and
“—”
markings
on
the
backs
of
the
speakers
and
MX-800/U.
If
the
“+”
and
“—”
polarities
are
reversed,
the
sound
will
be
unnatural
and
lack
-
bass.
Speaker
cords
should
be
cut
as
shortas
possible.
Do
not
coil
up
excess
cord
or
bundle
it
with
cables
from
other
components.
Strip
approximately
10
mm
(3/8”)
insulation
from
the
ends
of
the
speaker
cords
and
connect
them
as
explained
below:
A.Light-gauge
speaker
cords
Partly
unscrew
the
plastic
wire
holders.
Insert
the
stripped
ends
of
the
speaker
cords
as
shown
and
retighten
the
holders.
RED
for
(+)
sign
BLACK
for
(—)
sign
