SERVICE TIP
Model : MX825V-EFI
11
Supplied to Crankshaft
(refer to crankshaft page )
Supplied to
Camshaft
Supplied to
Camshaft
Spray oil to
cylinder head
Oil spray goes into cylinder
head through hole.

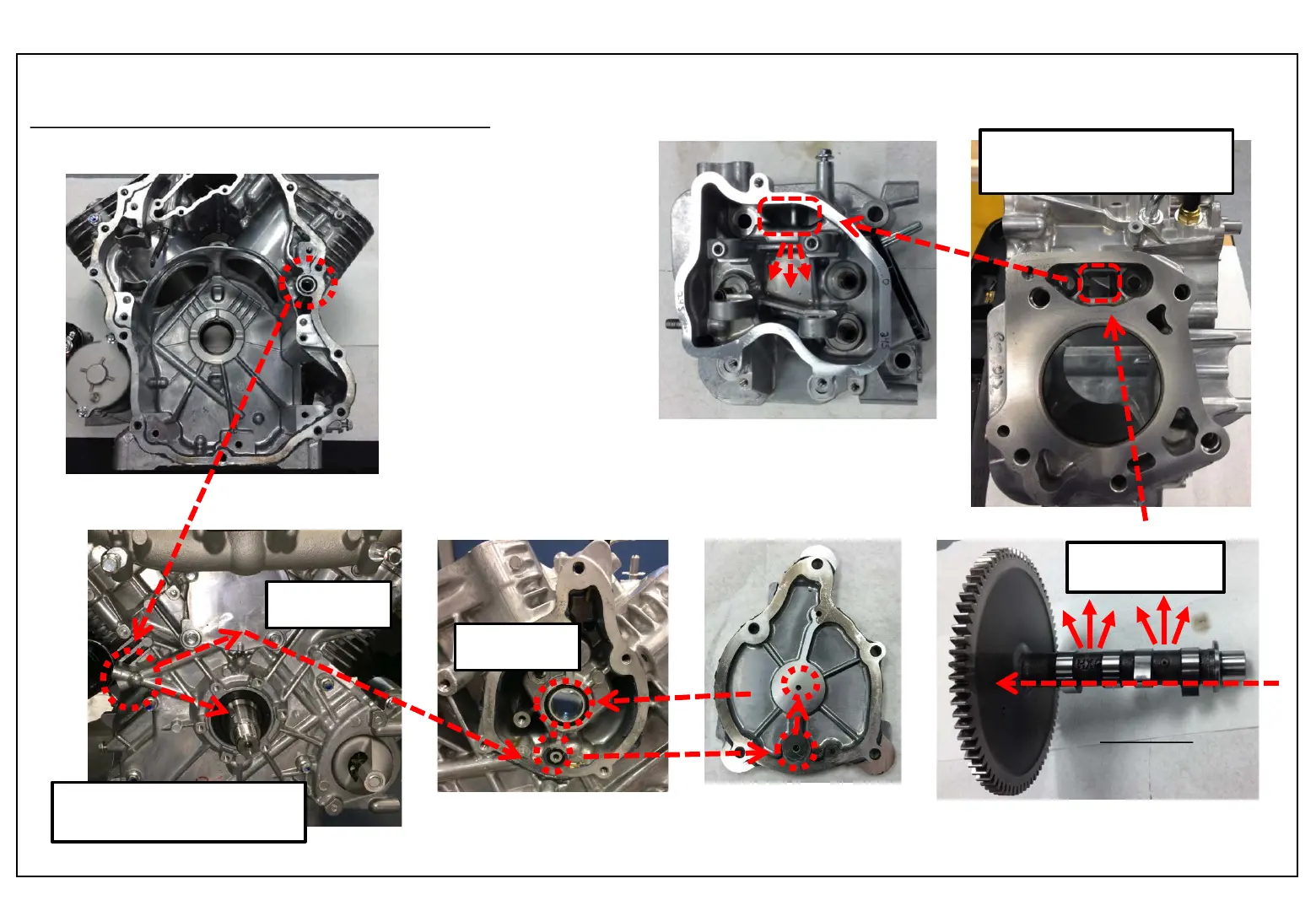

Continuation of previous page (Oil supply)
Camshaft
