SERVICE TIP
Model : MX825V-EFI
15

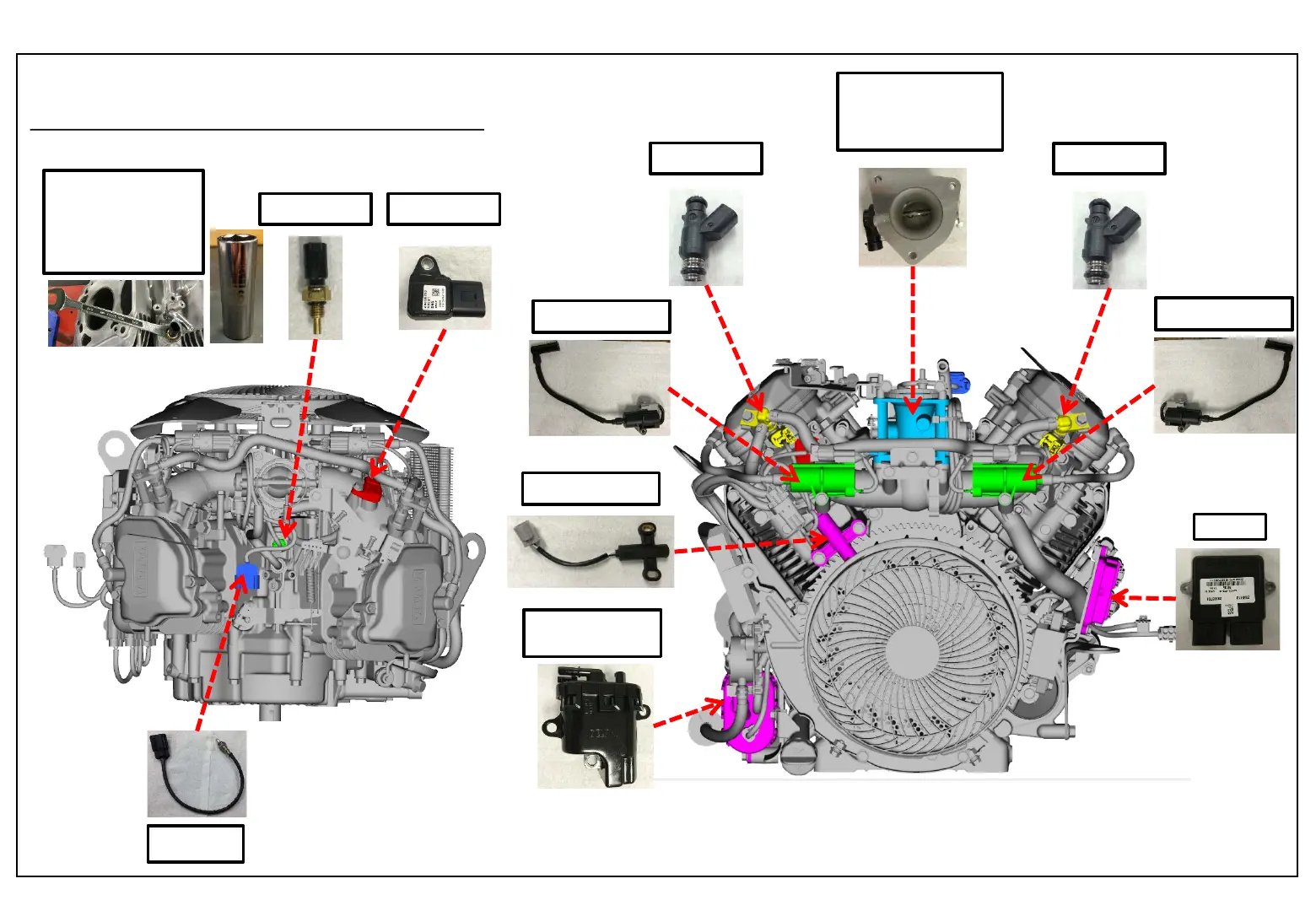

Continuation of previous page (FI system)
ENG Temp MAP/MAT
Injector #2
Injector #1
Throttle Body, w/
Throttle Position
Sensor
Electric Fuel
Pump
Crank Position
Ignition Coil #2
Ignition Coil #1
ECU
O
2
sensor
Use inch tool
“5/8” or 16mm
For ENG temp
sensor
