Performance for customer Service Tip
Model : MX825V-EFI
16

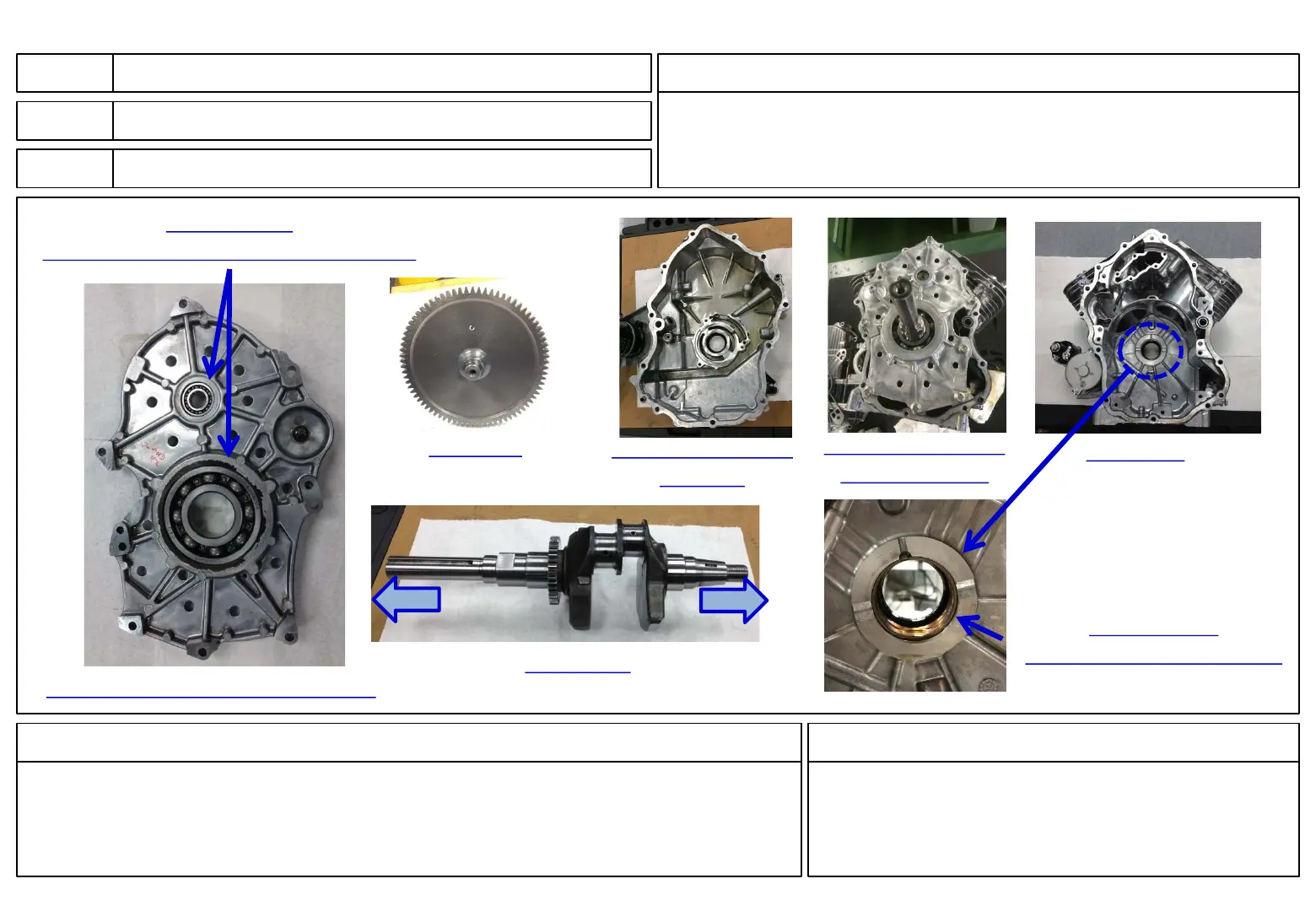

• 2 large bearings are installed in Cover, Crankcase 1, which becomes the
bottom side of engine.
Cover, Crankcase 1
Bearings (for camshaft and crankshaft)
• Effect engine power
• Good fuel efficiency
Reduce internal engine friction
Ball Bearings
(Bottom side of Crankshaft, Camshaft)
Camshaft
Crankshaft
Cover, Crankcase 1 (internal view)
Cover, Crankcase 2
(Oil pan)
Crankcase
Plain Bearing
(Upper side of Crankshaft)
Cover, Crankcase 1
with Crankcase
Bottom
UP
