Model : MX825V-EFI
17

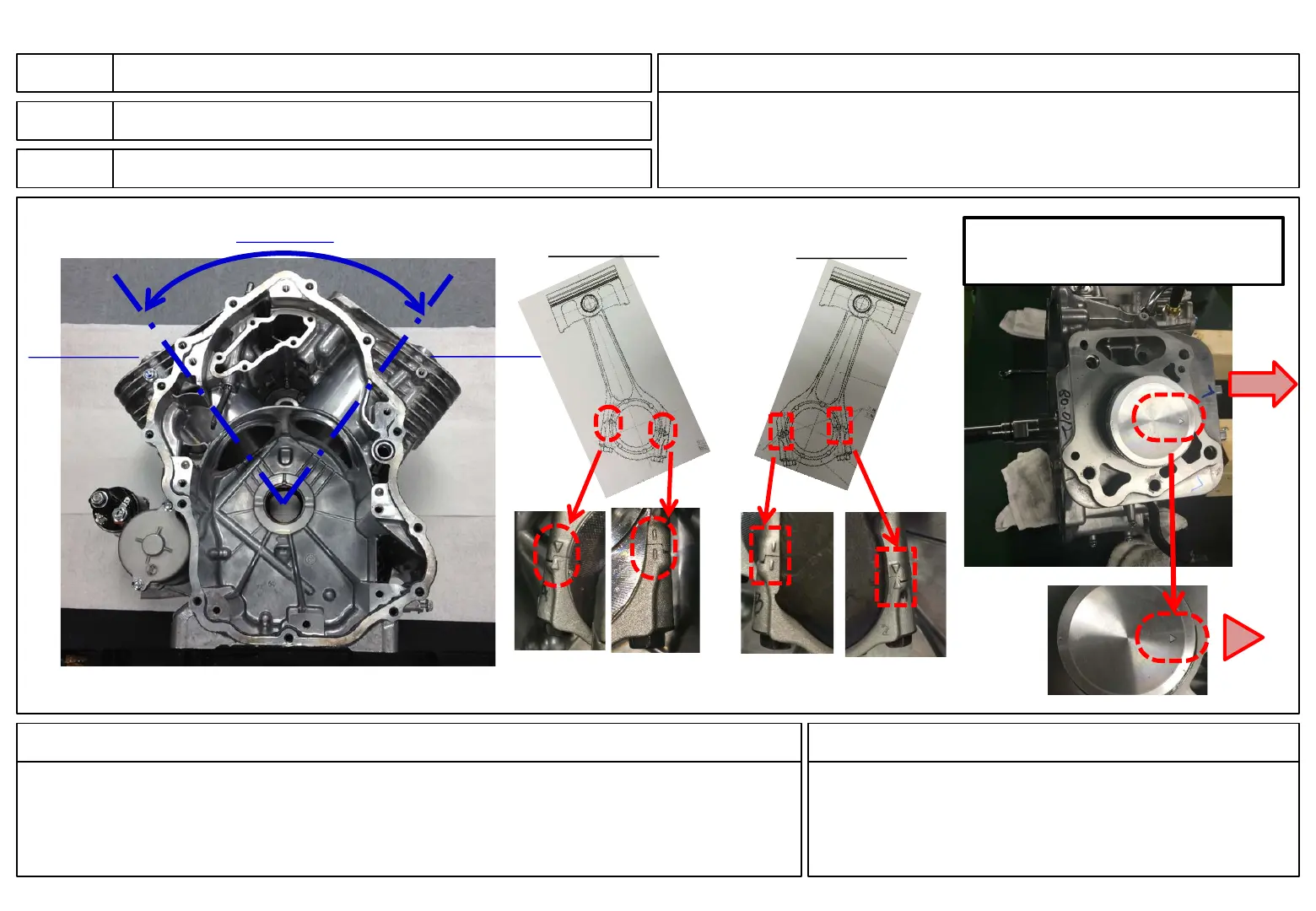

• Adopt 75 degree V bank design
Crankcase, Piston
75 degree V bank angle V-twin engine
Compact size engine.
Compact size engine
75 degree
There is arrow on the piston which
indicates intake side.
#1 Cylinder
#2 Cylinder
#1 Cylinder
#2 Cylinder
PTO
(Exhaust)
Up
(Intake)
• Pistons are installed with the arrow on the piston
crown pointed to the intake side of the engine
(this differs from the standard Yamaha practice, where
the arrow points to the exhaust)
