Yamaha MX825V-EFI - Specialized Systems and Information; FI Diagnostic Tool

Theme
Target
ContentPart
Performance for customer Service Tip
Model : MX825V-EFI
18
FI Diagnostic Tool

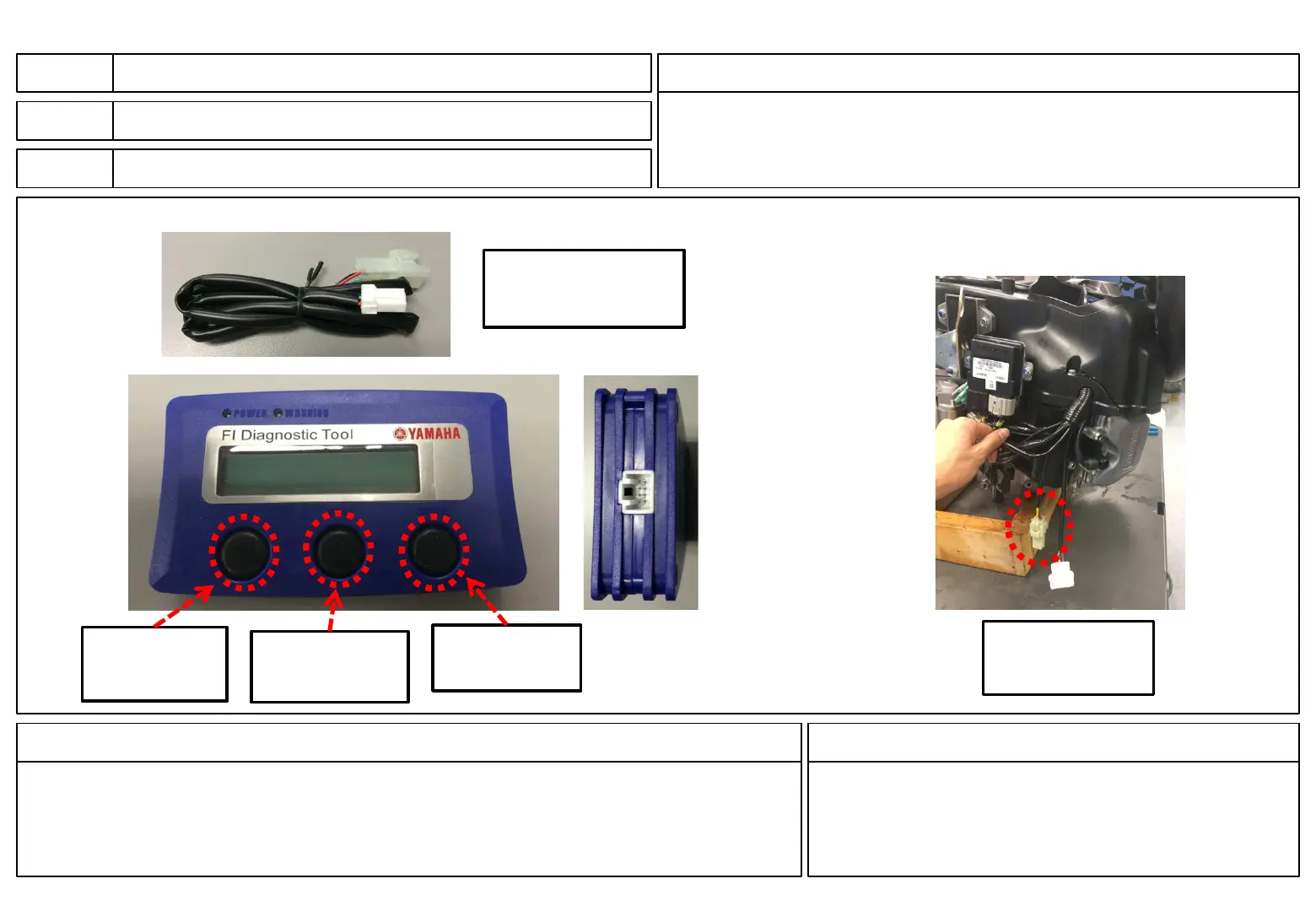

Hand held type diagnostic tool
Simple, durable, affordable
• 5 main functions; 1. display current error code, 2. past error codes,
3. check sensor outputs, 4. clear error code, 5. display ECU software
version and info
• Small, easy to use tool which is very durable.
• Inexpensive enough for every mechanic to have their own, the target MSRP is $150.00
Mode button
(Choose Mode,
Decide)
Up button
(Select items)
Down button
(Select items)
Connector for
Diag Tool is
installed on ENG
Diag Tool - Diag Tool
and connecting lead.
• FI Diagnostic Tool will be available from Yamaha Parts
and Accessories Division
• Tool is powered from the unit’s starter battery, no
batteries required in the tool
