SERVICE TIP
Model : MX825V-EFI
19
Continuation of previous page (FI diagnostic Tool)
“CURRENT
”
“HISTORY”
“DIAG”
“CLEAR”
UP
DOWN
UP
DOWN
UPDOWN
DOWN
DOWNUP
“PROPERTY”
UP
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 S E L E C T
2 C U R R E N T

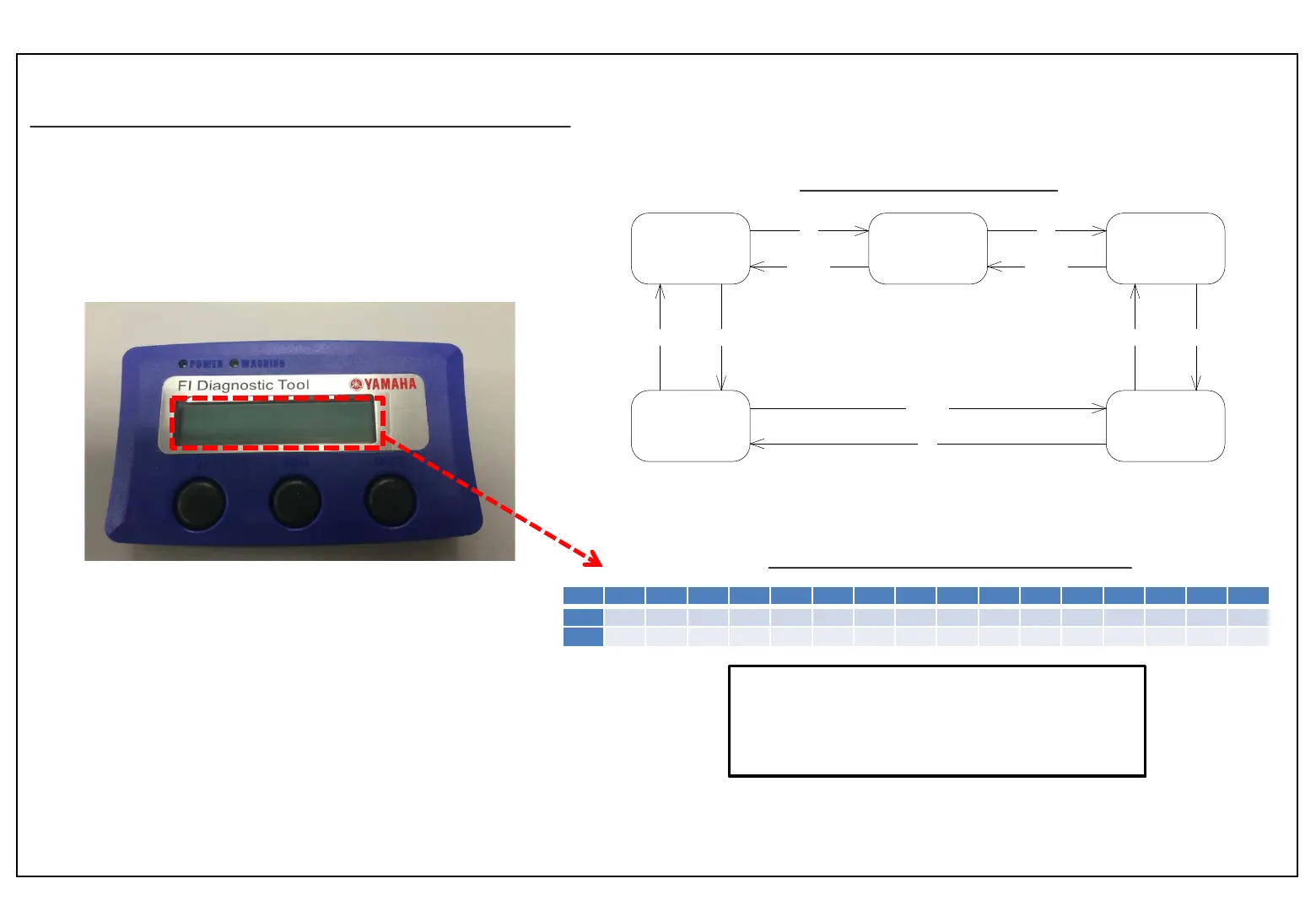

Display of Diag Tool (Selecting Mode)
Display has 2 lines.
Upper line shows which mode you choose
now or what you’re doing.
Lower line shows what you select currently
Main 5 modes of Diag tool
