VIBRATO SYSTEM Vintage Type
Following is the procedure for adjusting the vintage vibrato sys-
tem:
To check intonation, compare the harmonic tone (12th fret) to the
fretted tone (12th fret).
●
If fretted pitch is higher than harmonic, saddle must be
moved backward to lengthen string.
●
If fretted pitch is lower than harmonic, saddle must be
moved forward to lengthen string.

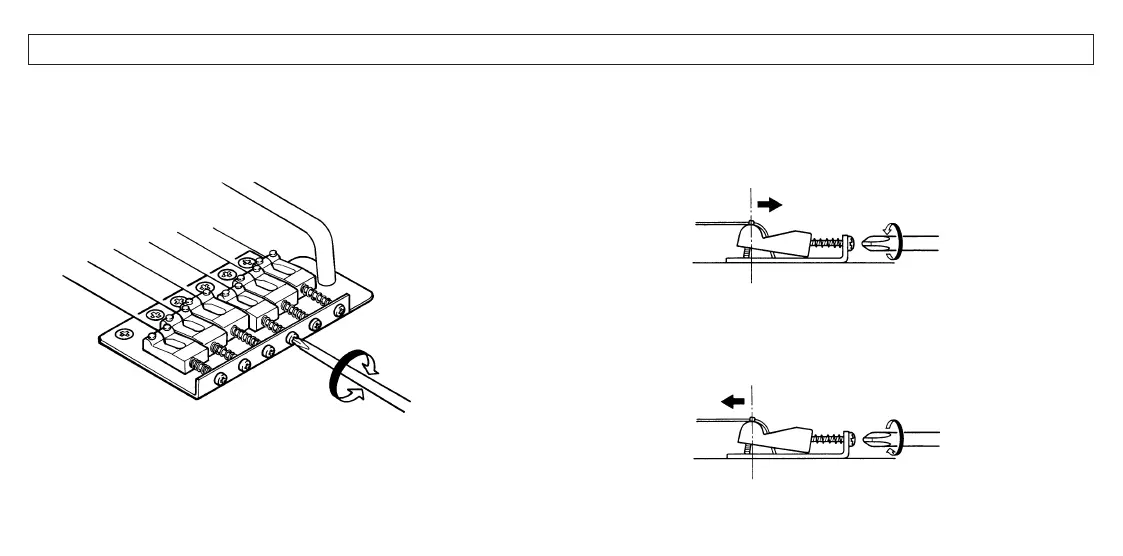

When Higher
than harmonic
When Lower
than harmonic
Turn clockwise
Adjustment screw
Bridge saddle
Turn counter-clockwise
Adjustment screw
Bridge saddle
