@ Although the PF15’s chorus effect is heard if a single
amp-speaker is connected, the full stereo effect can only
be obtained if the OUTPUT I and Il jacks are fed to two
independent amp/speaker systems, or two channels of a
mixer that will be assigned to the left and right stereo
program busses,
e Output Level = —10 dBm (line level)
Impedance = 600 ohms
@ KEY HOLD (FOOT SW.)
An FC-4 foot pedal (supplied) is connected to this jack.
When the foot pedal is depressed, an effect is obtained
similar to that obtained when the sustain pedal of an
acoustic piano is used. If you depress the foot pedal while
pressing a key, the note will be sustained even when you
release the key. The same is true with chords. Since the
sustain effect will be heid as long as the foot pedal is
depressed, the sound is cut off when the pedal is released.
@ The above effect is not obtained if the SUSTAIN pedal
is being used as Sustain has priority over KEY HOLD,
e If you want to obtain this effect for another sound,
release the pedal, press the desired key(s) and depress
the pedal again.
e If you depress the KEY HOLD pedal while pressing 16
keys simultaneously, all sixteen notes will be sustained,
so you must release the pedal if you want to produce
other sounds.lf, however, you are depressing the foot
pedal to hold only four keys, for example, you can
play 12 other sounds simultaneously.

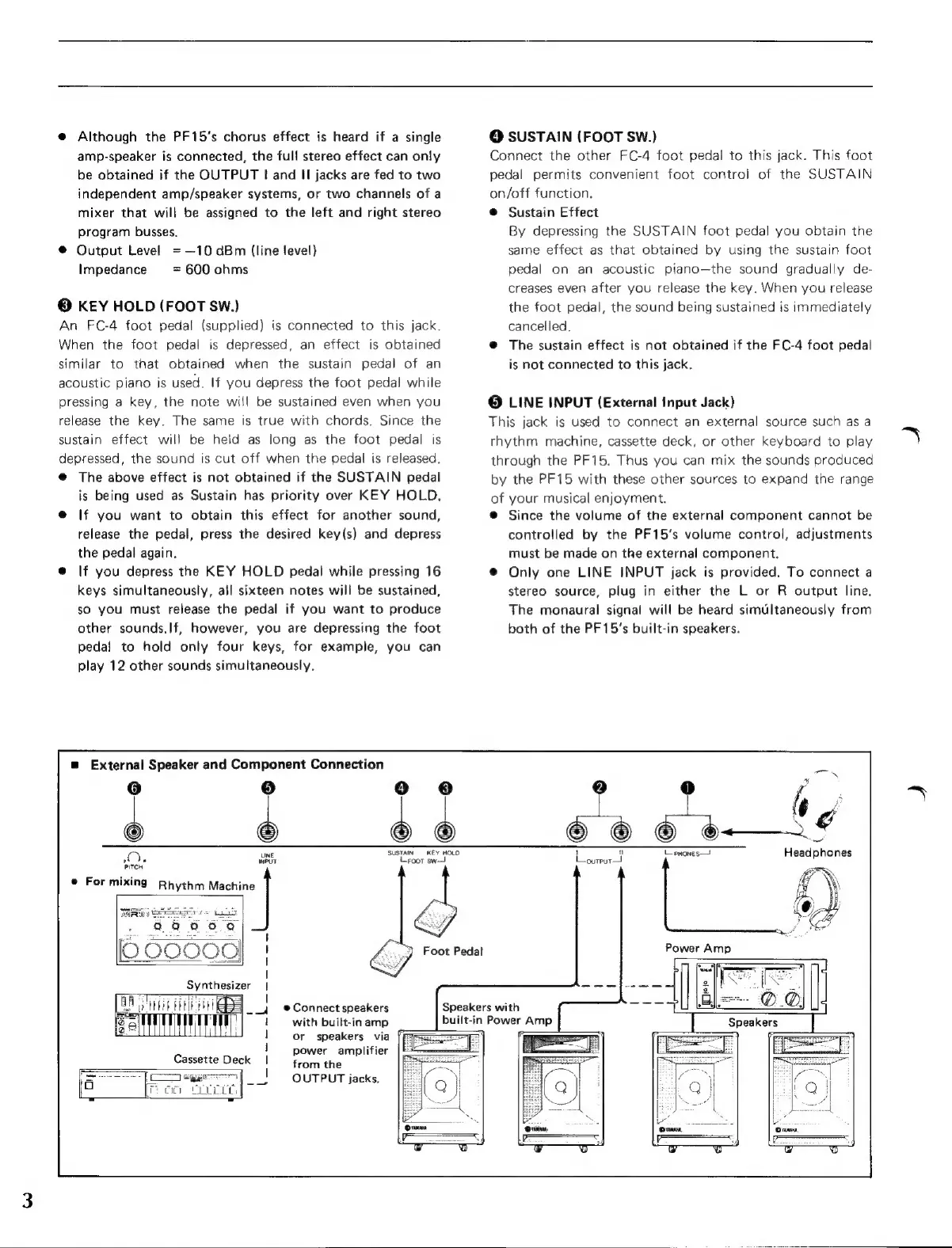

m External Speaker and Component Connection
9
i i
LINE
nile INPUT
PITCH
e
For
mixing
Rhythm
Machine
S 00000)
Synthesiz
EL == e Connect speakers
| TU! with built-in amp
Udi
° ó
Speakers with
@ SUSTAIN (FOOT SW.)
Connect the other FC-4 foot pedal to this jack. This foot
pedal permits convenient foot control of the SUSTAIN
on/off function.
@ Sustain Effect
By depressing the SUSTAIN foot pedal you obtain the
same effect as that obtained by using the sustain foot
pedal on an acoustic piano—the sound gradually de-
creases even after you release the key. When you release
the foot pedal, the sound being sustained is immediately
cancelled.
@ The sustain effect is not obtained if the FC-4 foot pedal
is not connected to this jack.
@ LINE INPUT (External input Jack)
This jack is used to connect an external source such asa
rhvthm machine, cassette deck, or other kevboard to plav
through the PF15. Thus vou can mix the sounds produced
bv the PF15 with these other sources to expand the range
of vour musical enjovment.
@ Since the volume of the external component cannot be
controlled by the PF15's volume control, adjustments
must be made on the external component.
@ Only one LINE INPUT jack is provided. To connect a
stereo source, plug in either the L or R output line,
The monaural signal will be heard simultaneously from
both of the PF15's built-in speakers.
ë
pš
ie
Headphones
Power Amp
or speakers via
power amplifier
from the
OUTPUT jacks,
Cassette Deck
| CO saga
To CLLL LÚ
x
built-in Power Amp
