Yamaha PF15 - Specifications

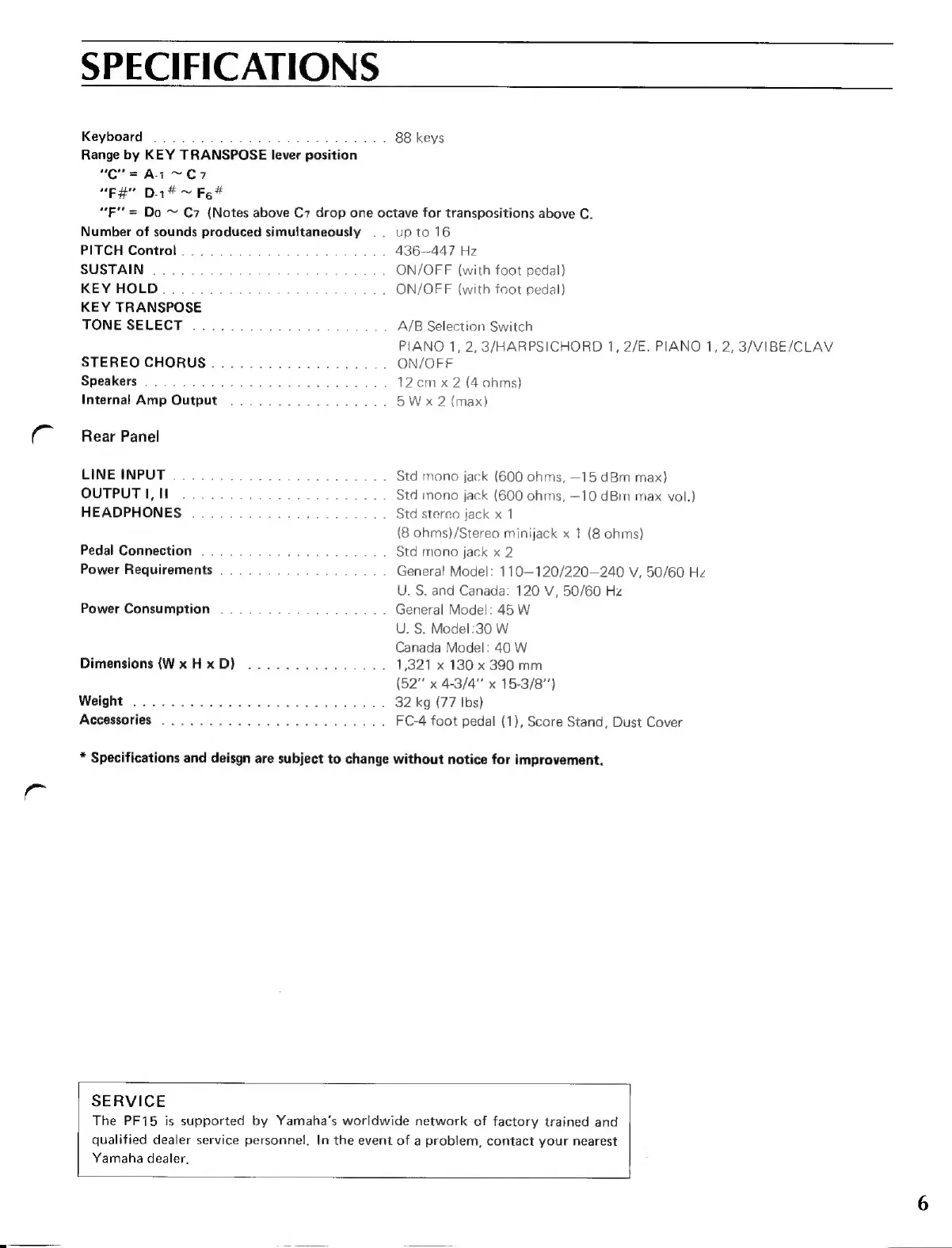

SPECIFICATIONS
Këyboard Me 88 kevs
Range by KEY TRANSPOSE lever position
"C"=A1~C7
“Fir” Dat— Fe
“F” = Do ~ C7 (Notes above C7 drop one octave for transpositions above C.
Number of sounds produced simultaneously .. up to 16
PITCH Control... 436—447 Hz
SUSTAIN pert ee whic ie Sb Ewe weds ON/OFF (with foot pedal)
KEV HOLD colo pg eee i aoe tasca ... ON/OFF (with foot pedal)
KEY TRANSPOSE
TONE SELECT «pe eon be ede balma A/B Selection Switch
PIANO 1, 2,3/HARPSICHORD 1, 2/E. PIANO 1, 2, 3/VIBE/CLAV
STEREOCHORUS................... ON/OFF
Speakers_._....................... 12 cm x 2 (4 ohms)
Internal Amp Output... 5W x 2 (max)
Rear Panel
LINEINPUT ............ eee Std mono jack (600 ohms, —15 dBm max)
OUTPUT: iz a aa eu s Std mono jack (600 ohms, —10 dBm max vol.)
HEADPHONES ................... . Std stereo jack x 1
(8 ohms)/Stereo minijack x 1 (8 ohms)
Pedal Connection ..... sar kiln Otdemono Jack-x 2
Power Requirements ....... PA TA ATA General Model: 110—120/220—240 V, 50/60 Hz
U. S. and Canada: 120 V, 50/60 Hz
Power Consumption ......... .... General Model: 45 W
U. S. Model:30 W
Canada Model: 40 W
Dimensions (WxHxD) ............... 1,321 x 130 x 390 mm
(52" x 4-3/4" x 15-3/8'')
Weight: corraini 32 kg (77 Ibs)
Accessories _...................... FC-4 foot pedal (1), Score Stand, Dust Cover
* Specifications and deisgn are subject to change without notice for improvement.
SERVICE
The PF15 is supported by Yamaha's worldwide network of factory trained and
qualified dealer service personnel. In the event of a problem, contact your nearest
Yamaha dealer,
