Yamaha QL Series - QL1 Digital Mixing Console; IO Racks for Any Application and Scale

4
I/O RACK
I/O RACK
INPUT RACK
OUTPUT RACK
Rio3224-D
Rio1608-D
Ri8-D
Ro8-D

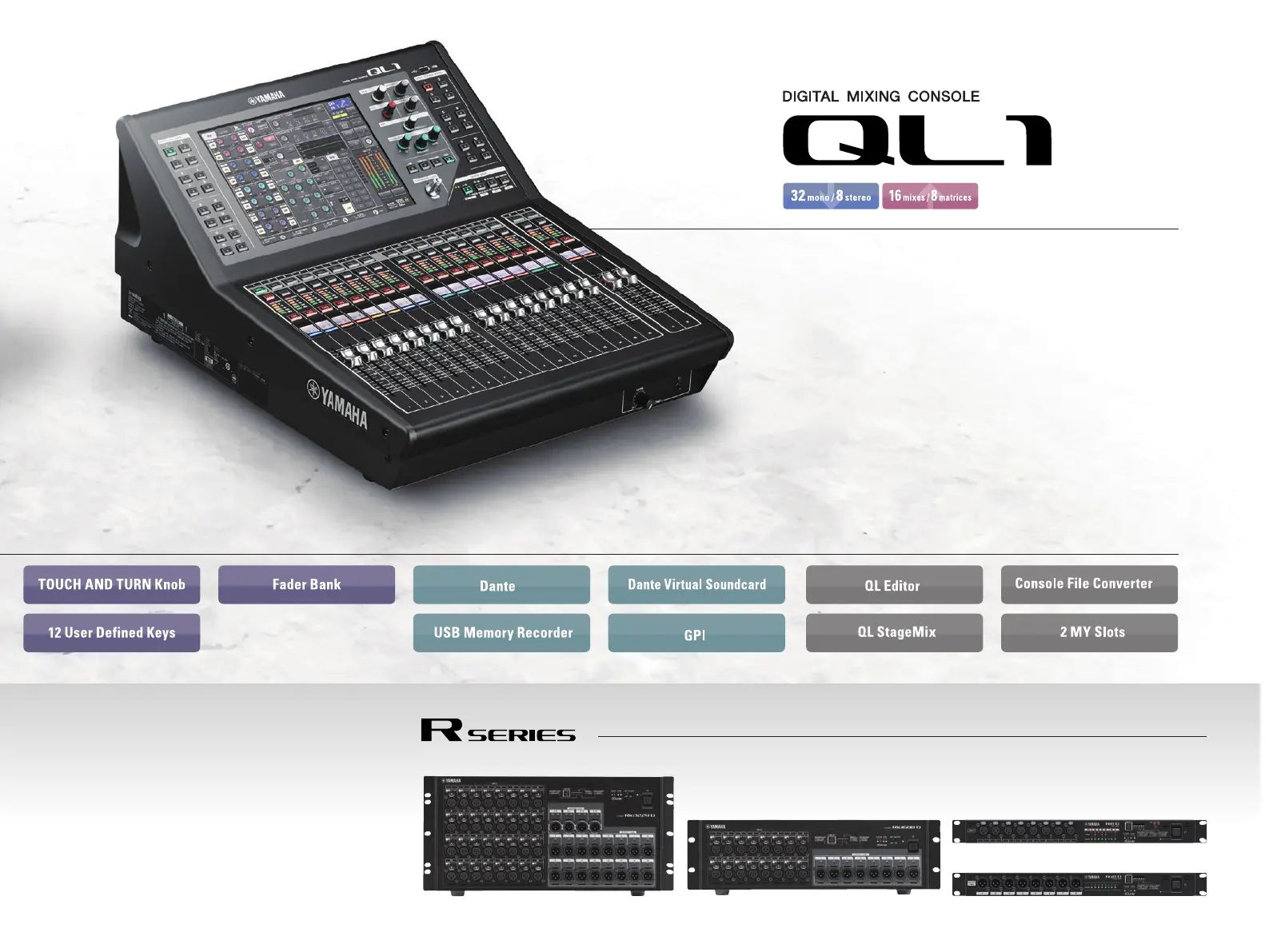

16 + 2 fader configuration in a compact,
rack mountable unit.
• Mix channels: 32 mono, 8 stereo.
• Busses: 16 mix, 8 matrix (Input to Matrix supported).
• Local I/O: 16 in, 8 out.
• Fader conguration: 16 + 2 (Master).
• Rack mountable with optional RK1 Rack Mount Kit.
I/O Racks for Any Application and Scale
Four I/O rack models with Dante networking capability provide
exible input and output setup for a wide range of applications.
The 5U size Rio3224-D has 32 inputs and 16 outputs as well as
four AES/EBU outputs. The 3U size Rio1608-D oers 16 inputs
and 8 outputs. And for situations where you just need inputs or
outputs, the compact 1U size Ri8-D and Ro8-D oer 8 inputs or
outputs, respectively. All of the above connect to the console via
Dante for low-jitter, low-latency audio transfer performance.
