Indicator lights and warning lights
EBU39290
Low-range indicator light “ ”
This indicator light comes on when the drive
select lever is in the “L” position.
EBU39300
High-range indicator light “ ”
This indicator light comes on when the drive
select lever is in the “H” position.
EBU39310
Neutral indicator light “ ”
This indicator light comes on when the drive
select lever is in the “N” position.
EBU39320
Reverse indicator light “ ”
This indicator light comes on when the drive
select lever is in the “R” position.
EBU39330
Parking brake indicator light “ ”
This indicator light comes on when the park-
ing brake is applied.

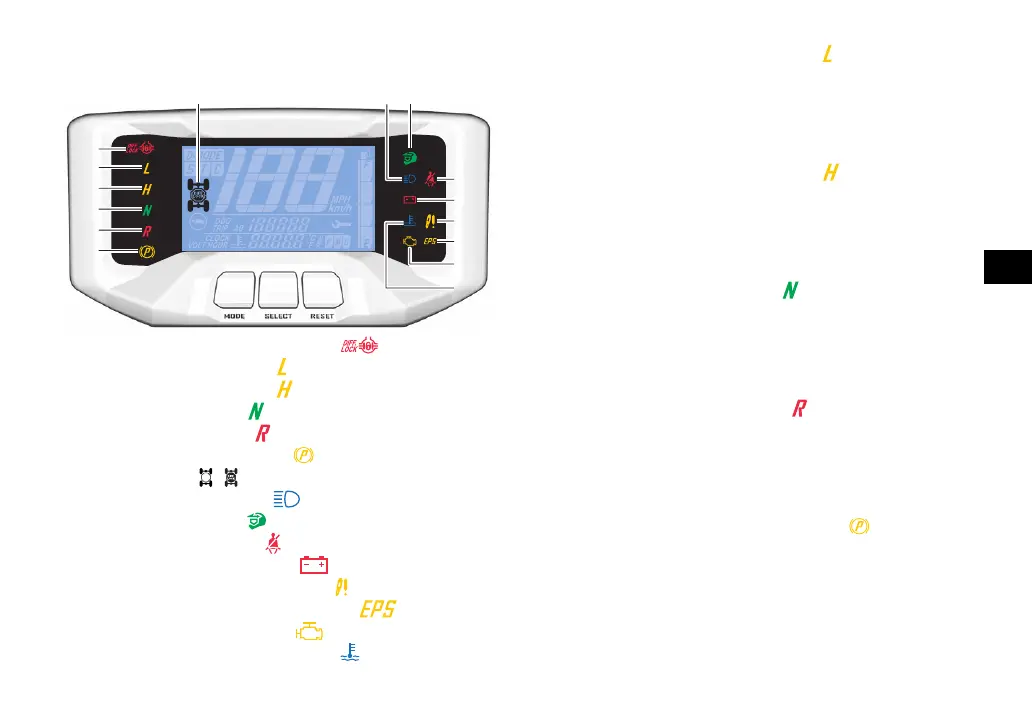

1. Differential gear lock indicator light “ ”
2. Low-range indicator light “ ”
3. High-range indicator light “ ”
4. Neutral indicator light “ ”
5. Reverse indicator light “ ”
6. Parking brake indicator light “ ”
7. Drivetrain icon “ / ”
8. High beam indicator light “ ”
9. Helmet reminder light “ ”
10.Seat belt reminder light “ ”
11.Battery voltage warning light “ ”
12.Suspension system warning light “ ” (if equipped)
13.Electric Power Steering warning light “ ”
14.Engine trouble warning light “ ”
15.Coolant temperature warning light “ ”
