INSTRUMENT AND CONTROL FUNCTIONS
/home/Imai/imai_data/YMC-om/AB9239_RT100-26/English/E-3.frame

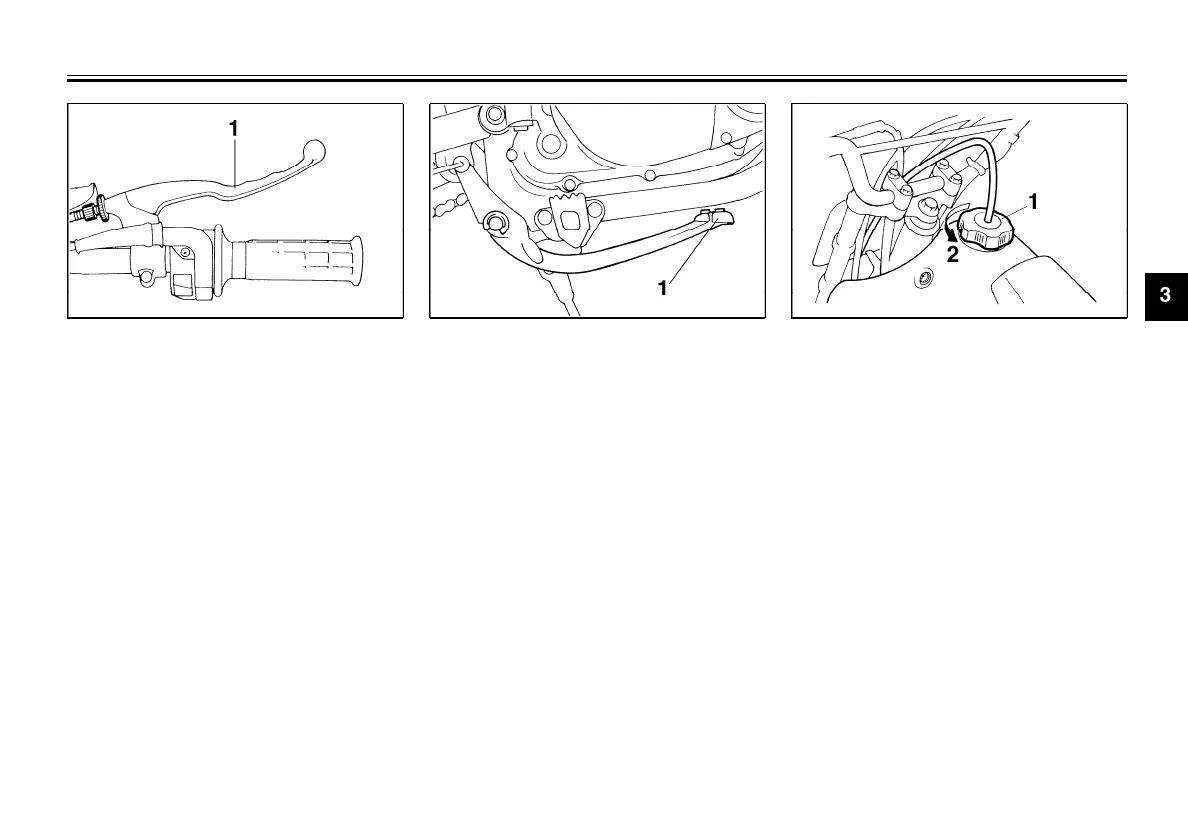

1. Front brake lever
EAU00158
Front brake lever
The front brake lever is located on the
right handlebar. Pull it toward the han-
dlebar to apply the front brake.
1. Rear brake pedal
EAU00162
Rear brake pedal
The rear brake pedal is on the right
side of the machine. Press down on the
brake pedal to apply the rear brake.
1. Fuel tank cap
2. Open
EAU00179
Fuel tank cap
Remove the fuel tank cap by turning it
counterclockwise.
