Yamaha RT100M - Panel Removal and Installation; Panel a

R
6-4
PERIODIC MAINTENANCE AND MINOR REPAIR
/home/Imai/imai_data/YMC-om/AB9239_RT100-26/English/E-6.frame
1. Panel A
EAU01777
Panel removal and installation
The panel illustrated needs to be re-
moved to perform some of the mainte-
nance described in this chapter. Refer
to this section each time the panel has
to be removed or installed.

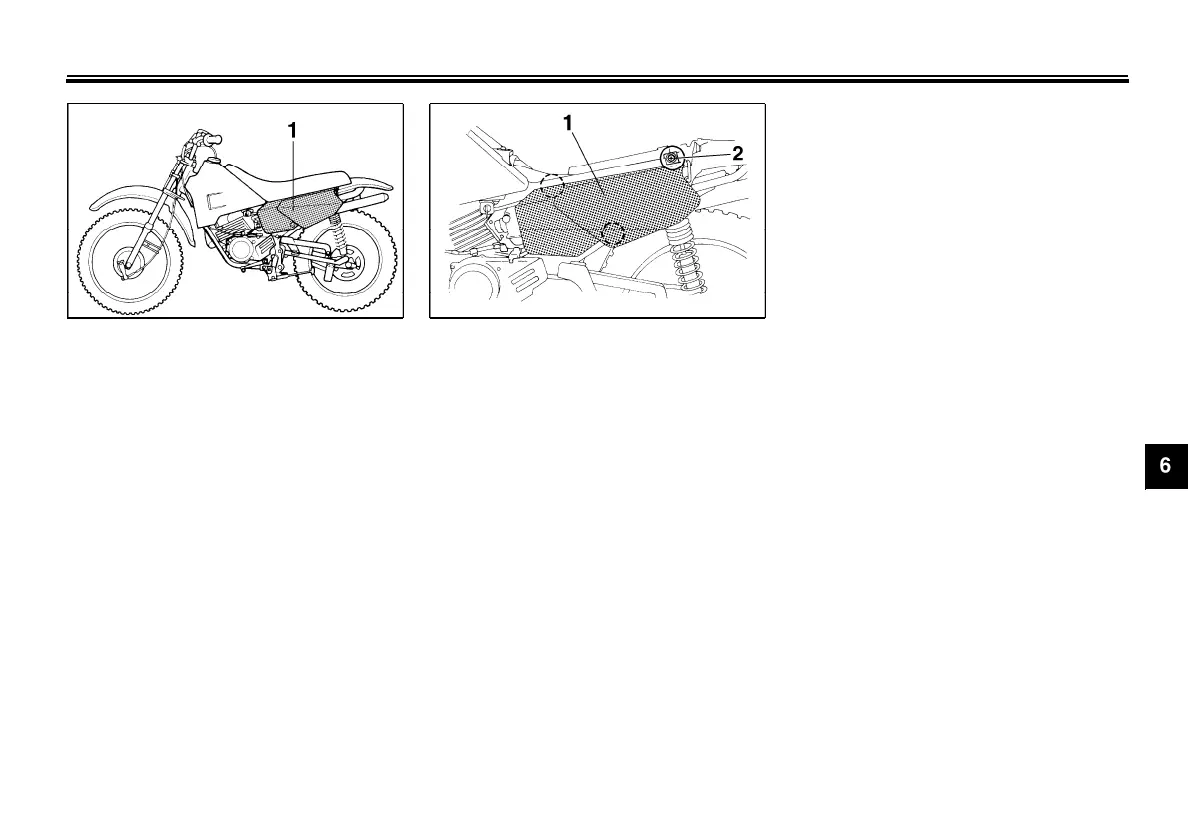

1. Panel A
2. Screw
EAU03021
Panel A
To remove
1. Remove the seat. (See page 3-6
for seat removal and installation
procedures.)
2. Remove the screw and pull up-
ward on the areas shown.
To install
1. Place the panel in the original po-
sition and install the screw.
2. Install the seat.
