INSTRUMENT AND CONTROL FUNCTIONS
/home/Imai/imai_data/YMC-om/AB9239_RT100-26/English/E-3.frame
1. Position indicator
EAU00300
Rear shock absorber
adjustment

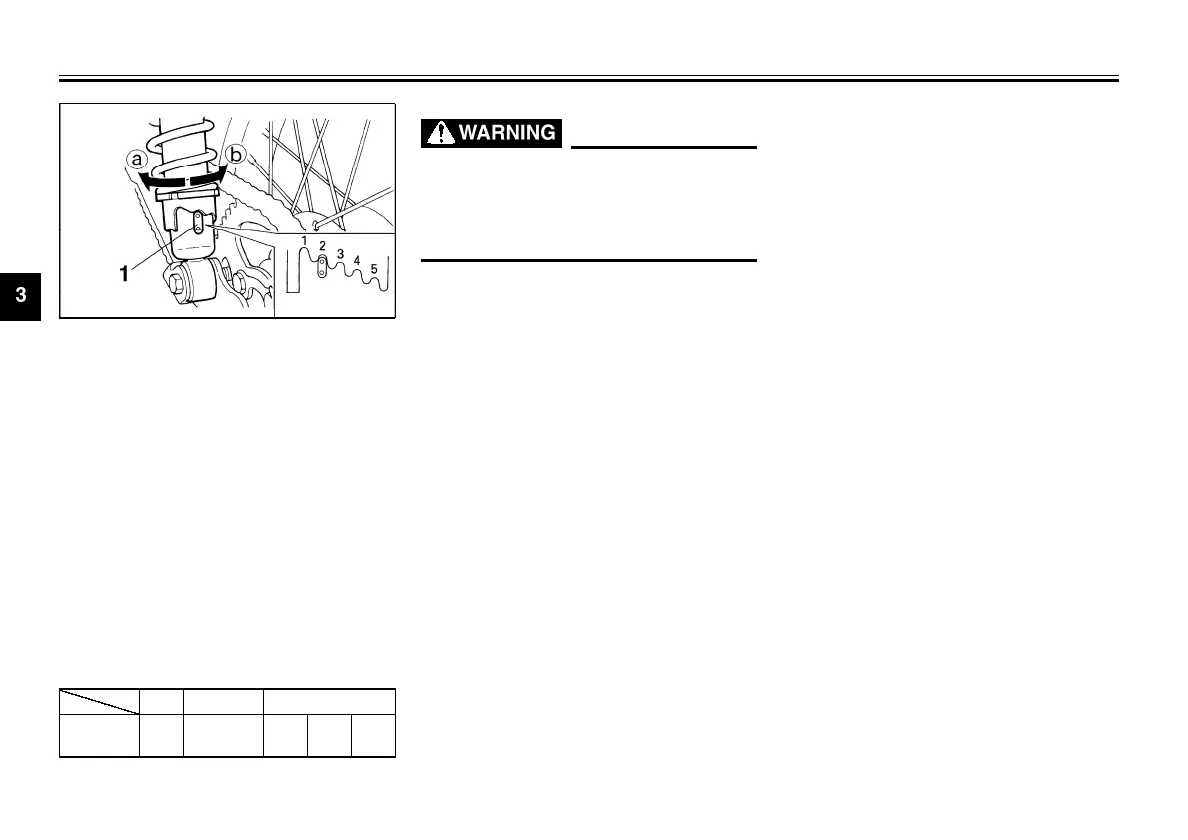

Each shock absorber is equipped with
a spring preload adjusting ring. Adjust
spring preload as follows. Turn the ad-
justing ring in direction
a
to increase
spring preload and in direction
b
to de-
crease spring preload. Make sure that
the appropriate notch in the adjusting
ring is aligned with the position indica-
tor on the rear shock absorber.
Soft Standard Hard
Adjusting
position
1 2 345
EW000040
Always adjust each shock absorber
to the same setting. Uneven adjust-
ment can cause poor handling and
loss of stability.
