Yamaha RT100M - Front Brake Lever Free Play Adjustment; Rear Brake Pedal Free Play Adjustment

L
6-13
PERIODIC MAINTENANCE AND MINOR REPAIR
/home/Imai/imai_data/YMC-om/AB9239_RT100-26/English/E-6.frame

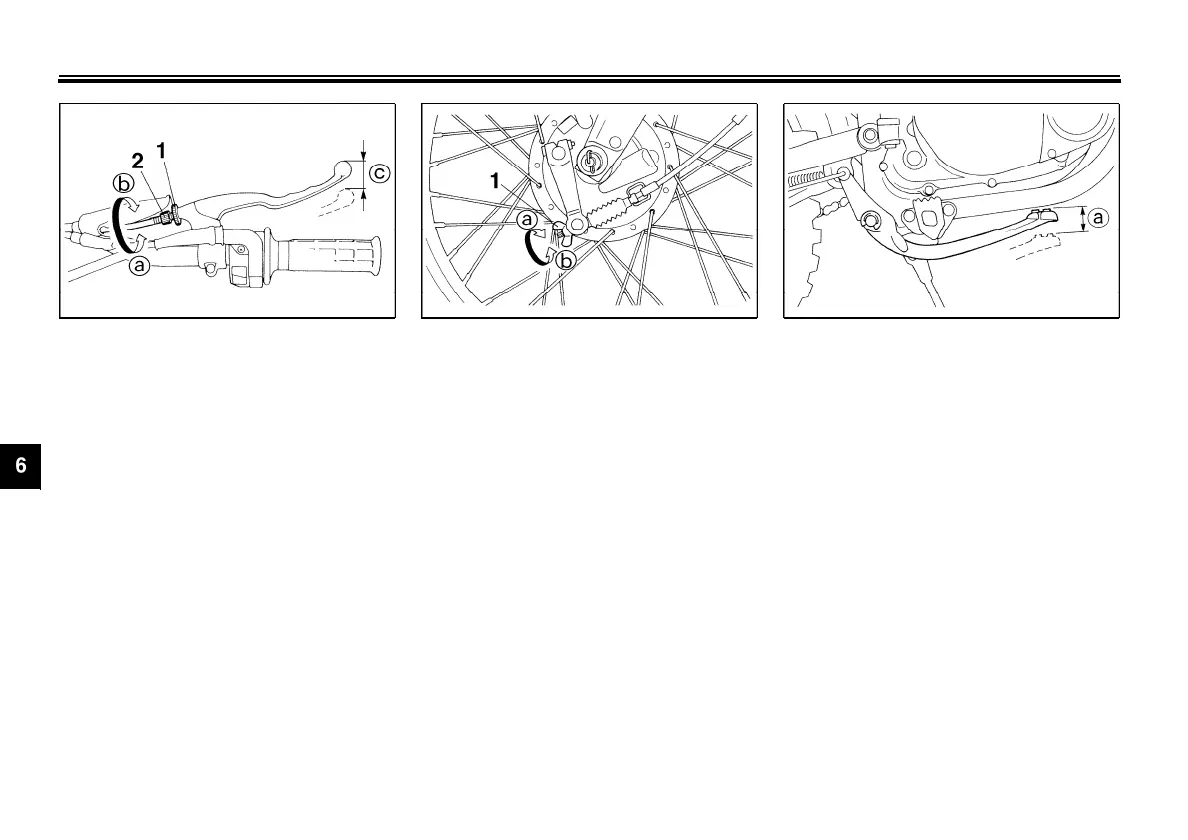

1. Locknut
2. Adjusting bolt
c. Free play
EAU01472
Front brake lever free play
adjustment
The front brake lever free play should
be adjusted to 10 ~ 15 mm.
1. Loosen the locknut at the brake le-
ver.
2. Turn the adjusting bolt at the brake
lever in direction
a
to increase
free play or in direction
b
to de-
crease free play.
3. Tighten the locknut at the brake le-
ver .
1. Adjusting nut
If the specified free play cannot be ob-
tained, proceed with the following
steps.
4. Loosen the locknut at the brake le-
ver.
5. Turn the adjusting bolt at the brake
lever in direction
a
to loosen the
cable.
6. Turn the adjusting nut at the brake
hub in direction
a
to increase free
play or in direction
b
to decrease
free play.
7. Tighten the locknut at the brake
hub and the brake lever.
a. Free play
EAU01510*
Rear brake pedal free play
adjustment
The rear brake pedal free play should
be adjusted to 20 ~ 30 mm at the brake
pedal end.
