Yamaha RT100M - Clutch Lever Free Play Adjustment

R
6-12
PERIODIC MAINTENANCE AND MINOR REPAIR
/home/Imai/imai_data/YMC-om/AB9239_RT100-26/English/E-6.frame

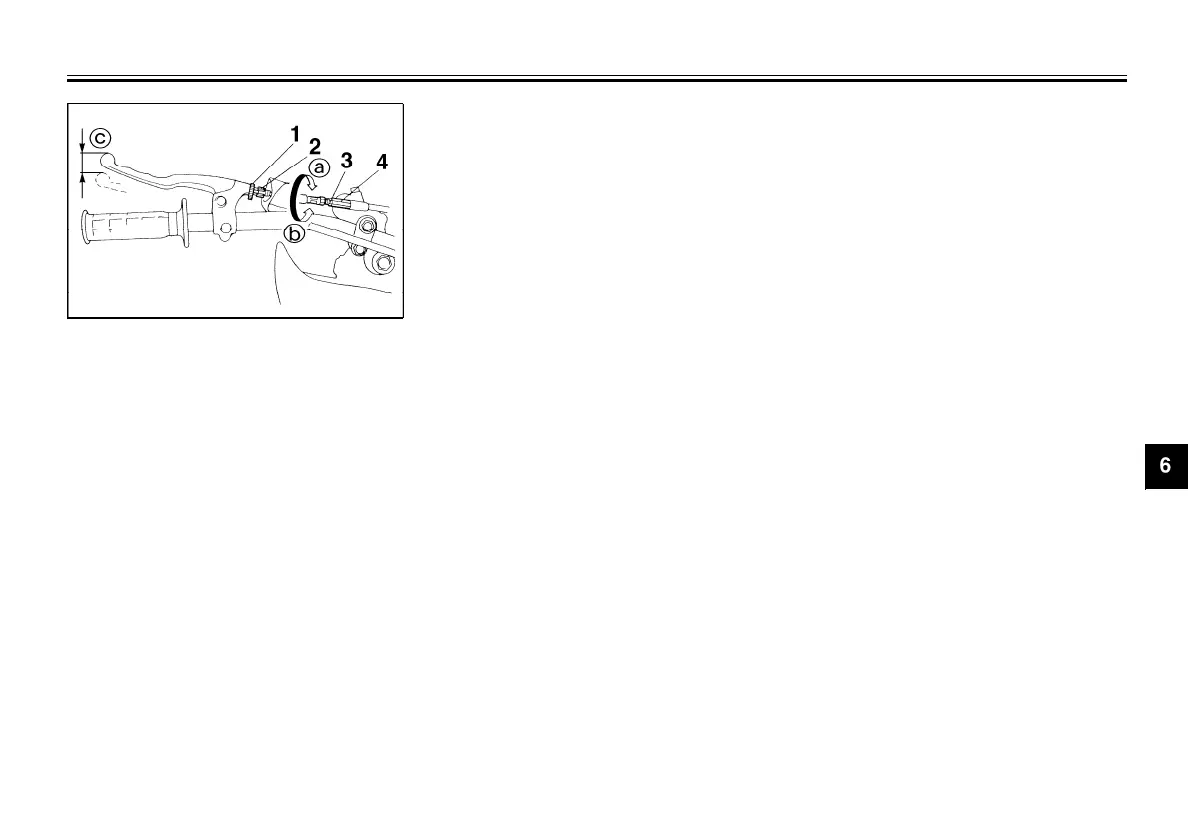

1. Locknut 1
2. Adjusting bolt 2
3. Locknut 3
4. Adjusting nut 4
c. Free play
EAU02996
Clutch lever free play
adjustment
The clutch lever free play should be ad-
justed to 10 ~ 15 mm.
1. Loosen the locknut
1
.
2. Turn the adjusting bolt
2
in
direction
a
to increase free play
or in direction
b
to decrease free
play.
3. Tighten the locknut
1
.
If the specified free play cannot be ob-
tained, proceed with the following
steps.
4. Loosen the locknut
1
.
5. Turn the adjusting bolt
2
in
direction
a
to loosen the cable.
6. Loosen the locknut
3
.
7. Turn the adjusting nut
4
in
direction
a
to increase free play
or in direction
b
to decrease free
play.
8. Tighten both locknuts.
