Yamaha RX-V340 - DIAG Menu: YSS Full Bit Modes; YSS Full Bit Mode; YSS Full Bit F Mode

RX-V340/RX-V340RDS/
HTR-5630/HTR-5630RDS/DSP-AX340
RX-V340/RX-V340RDS/HTR-5630/HTR-5630RDS/DSP-AX340
22

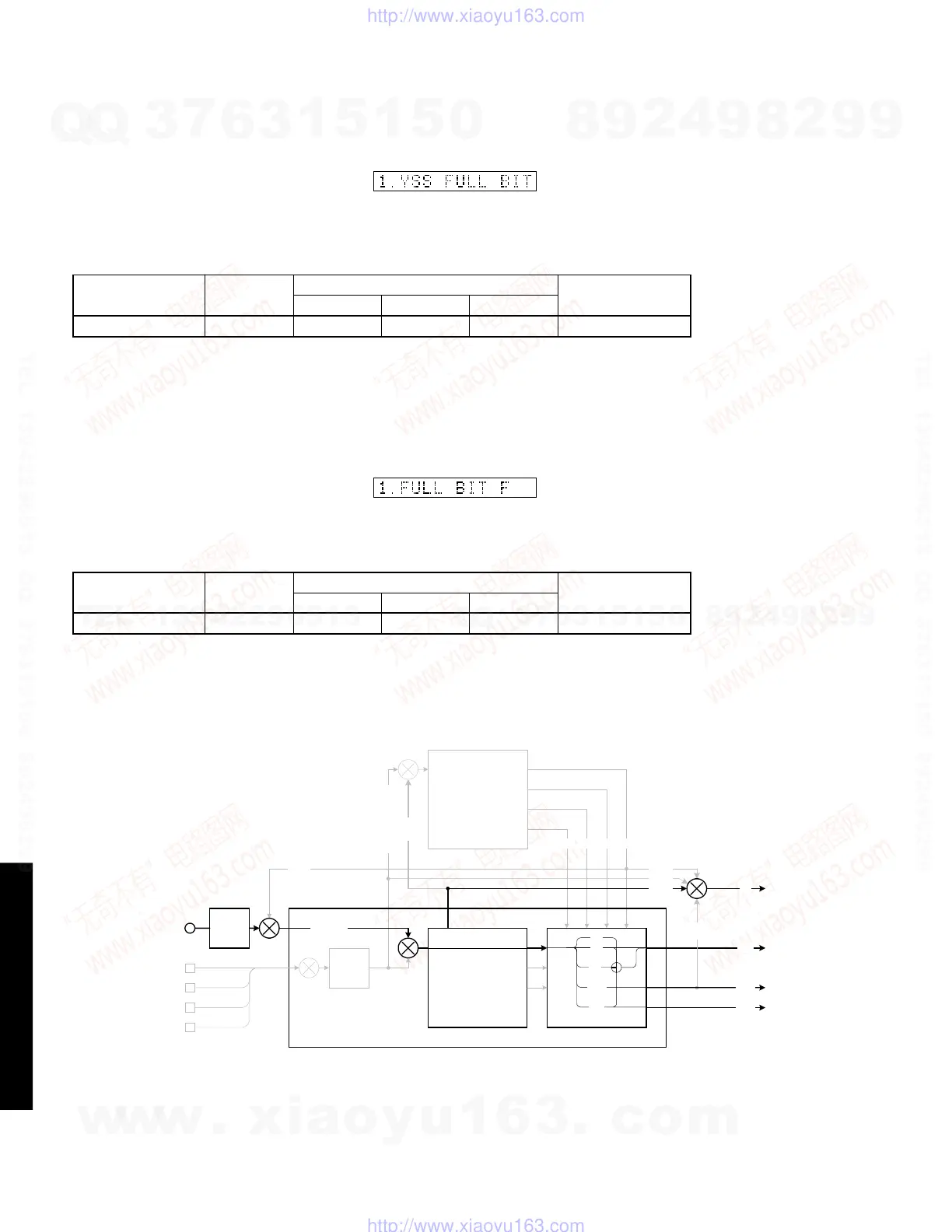

YSS FULL BIT
• The signal is output in digital full bit without including
the head margin. The SWFR signal is output but not in
digital full bit.
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
YSS FULL BIT F
• The front CH signal is output in digital full bit at the main
CH.
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
YSSFULLBIT
 


YSSFULLBITF
 

CS49329
( Digital Audio Data / PCM )
RC/- C/LFE LS/RS L/R
CS L/R
A/D
DIR
Main DSP Sub DSP
AD or CS L/R
L/R
LS/RS
C/LFE
C/SW
L/R
Virtual or HP
L/R
YSS L/R
CS L/R
C(L)
LFE
(R)
L/R
FL/FR
(L/R)
RL/RR
(L/R)
Sp Config
DIR L/R
YSS L/R
FL/FR
Digital
Analog
RL/RR
DSP THROUGH ~
YSS (Analog)
(Shaded items not used in this example)
Input level Volume
SPEAKER OUTPUT (1kHz) SUBWOOFER
MAIN L/R CENTER RL/RR OUTPUT (50Hz)
Both ch, -20 dBm -10 dB +10.8 dBm +10.8 dBm +10.4 dBm +0.8 dBm
Input level Volume
SPEAKER OUTPUT (1kHz) SUBWOOFER
MAIN L/R CENTER RL/RR OUTPUT (50Hz)
Both ch, -20 dBm -10 dB +10.8 dBm - ∞ - ∞ - ∞
