Yamaha RX-V340 - Main P.C.B. Layout (Surface Mount) (Continued)

ABCDEFGH I J
1
2
3
4
5
6
7
RX-V340/RX-V340RDS/HTR-5630/HTR-5630RDS/DSP-AX340
51
MAIN
(
1
)
P.C.B.
(Surface Mount Device)

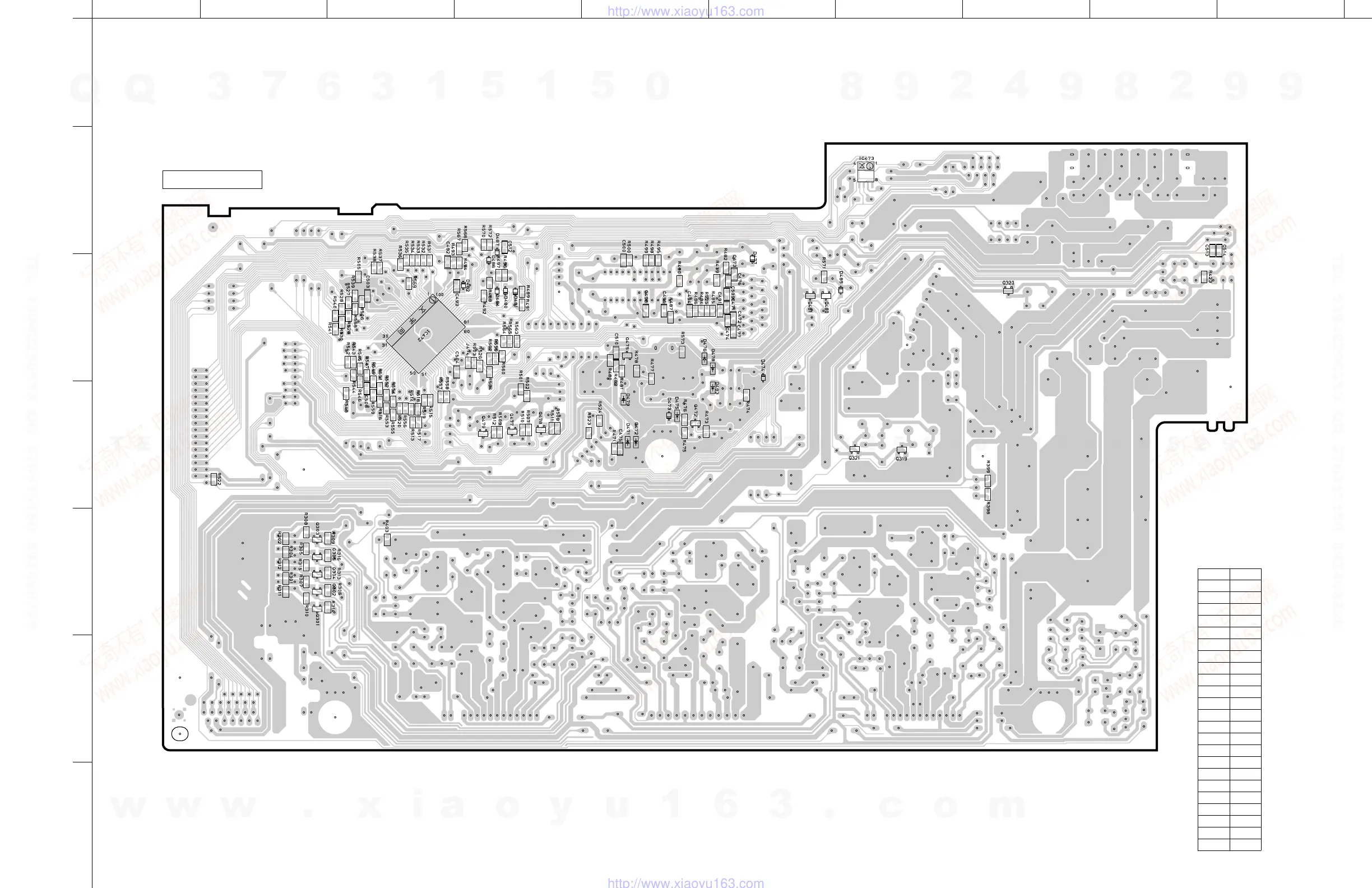

■ PRINTEDCIRCUITBOARD(Foilside)
Ref. No. Location
D471 E4
D472 E4
D473 E4
D474 F3
D475 E4
D476 E3
D477 F3
D478 F3
D479 E4
D480 D3
D481 D3
D482 D3
D483 F4
D484 D3
D485 G3
D486 D3
D487 D2
IC472 C3
Q301 B5
Q302 B5
Q303 B5
Q304 B5
Q305 B5
• Semiconductor Location
