Yamaha RX15 - SPECIFICATIONS

SPECIFICATIONS
SOUND SOURCE
ROM: 256 KBIT WAVE ROM x 4
NO. OF VOICES: 15
MEMORY CAPACITY
NO. OF PATTERNS: 100
NO. OF SONGS: 10
MAXIMUM NO. OF PARTS WITHIN SONGS: 255
CONTROLLERS
• SLIDERS
VOLUME, TEMPO, DATA ENTRY
• BUTTONS
PAN, INST LEVEL, ACCENT LEVEL, ACCENT, INSTRUMENT RIM
SHOT, SD (MEDIUM/HI TUNE), TOM 1, TOM 2, TOM 3, BD, HH
OPEN, HH CLOSED, (CLOSED/PEDAL), RIDE, CRASH,
SHAKER/COWBELL, CLAPS, START, STOP/CONTINUE,
MODE SELECTOR (PATTERN/SONG, FUNCTION)
PATTERN MODE PARAMETER (REAL TIME WRITE, STEP WRITE,
COPY, SWING, QUANTIZE, CLICK, CLEAR, TEMPO)
SONG MODE PARAMETER (EDIT, INSERT, DELETE, REPEAT,
TEMPO CHANGE
FUNCTION MODE PARAMETER (SYNC, CASSETTE, SAVE/VERIFY,
LOAD, INST, MIDI IN, MIDI OUT)
NUMBER (0-9, 1/4-1/1929+1/YES, –1/NO
• SWITCH
POWER SWITCH

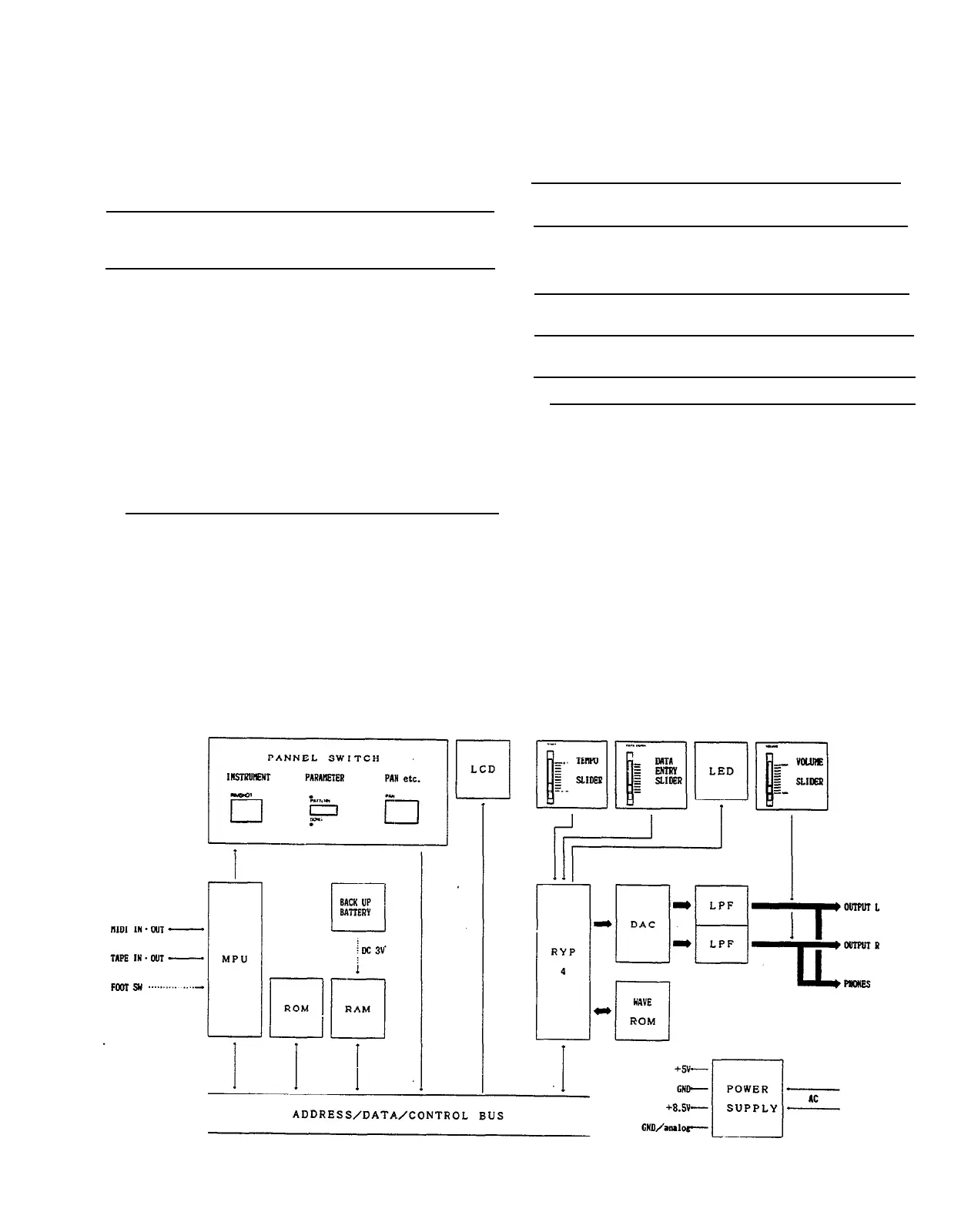

BLOCK DIAGRAM
DISPLAYS
LCD: 16 CHARACTERS
LED INDICATOR: PATTERN, SONG, RUN
CONNECTION TERMINALS AND INTERFACES
• AUDIO OUTPUT: OUTPUT L&R (phono jack), PHONES (stereo
phone jack, 8-40 ohms)
• CONTROL JACK: FOOT SW
• INTERFACE: CASSETTE (IN, OUT) MIDI (IN, OUT)
DIMENSIONS AND WEIGHT
• 400W x 68H x 270LD (mm)
• 2.8 kg
POWER REQUIREMENTS
US & Canadian Models: 120 V (50/60 Hz)
Genera Model: 1 110-130 V/220-240 V (50/60 Hz) selectable
POWER CONSUMPTION
US & Canadian Models: 10 W
General Model: 10 W
SPEClFlCATlON’S ARE LIABLE TO CHANGE WITHOUT NOTICE.
