Yamaha SR400 2014 User Manual

ROCKER ARMS
5-13
EAS2RD1012
ROCKER ARMS

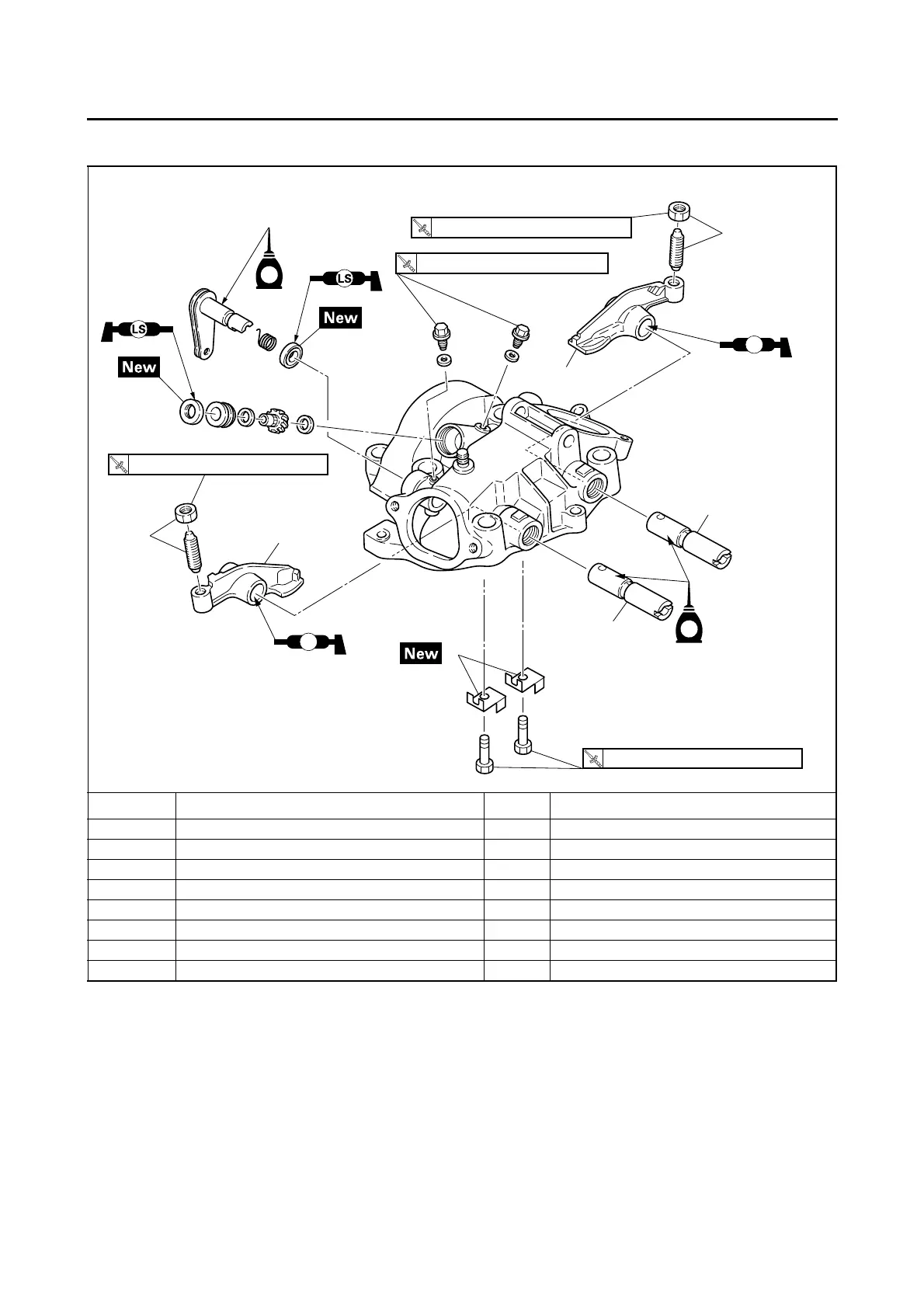

Removing the rocker arms and rocker arm shaft
Order Job/Parts to remove Q’ty Remarks
Engine Refer to “ENGINE REMOVAL” on page 5-2.
Cylinder head Refer to “CYLINDER HEAD” on page 5-6.
1 Locknut/adjuster 2/2
2 Lock washer 2
3 Rocker arm shaft (intake) 1
4 Rocker arm (intake) 1
5 Rocker arm shaft (exhaust) 1
6 Rocker arm (exhaust) 1
M
M
M
E
1
1
2
3
4
5
6
10 Nm (1.0 m • kgf, 7.2 ft • Ibf)
27 Nm (2.7 m • kgf, 20 ft • Ibf)
27 Nm (2.7 m • kgf, 20 ft • Ibf)
7 Nm (0.7 m • kgf, 5.1 ft • Ibf)

Yamaha SR400 2014 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	399cc
Bore x Stroke	87.0 x 62.7 mm
Compression Ratio	8.5:1
Fuel System	Fuel Injection
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/100-18M/C 54S
Rear Tire	110/90-18M/C 61S
Ignition System	TCI
Fuel Tank Capacity	12 liters
Curb Weight	174 kg
Wheelbase	1, 410 mm
Length	2, 085 mm
Width	750 mm
