TRANSMISSION

5-55

EAS26241

TRANSMISSION

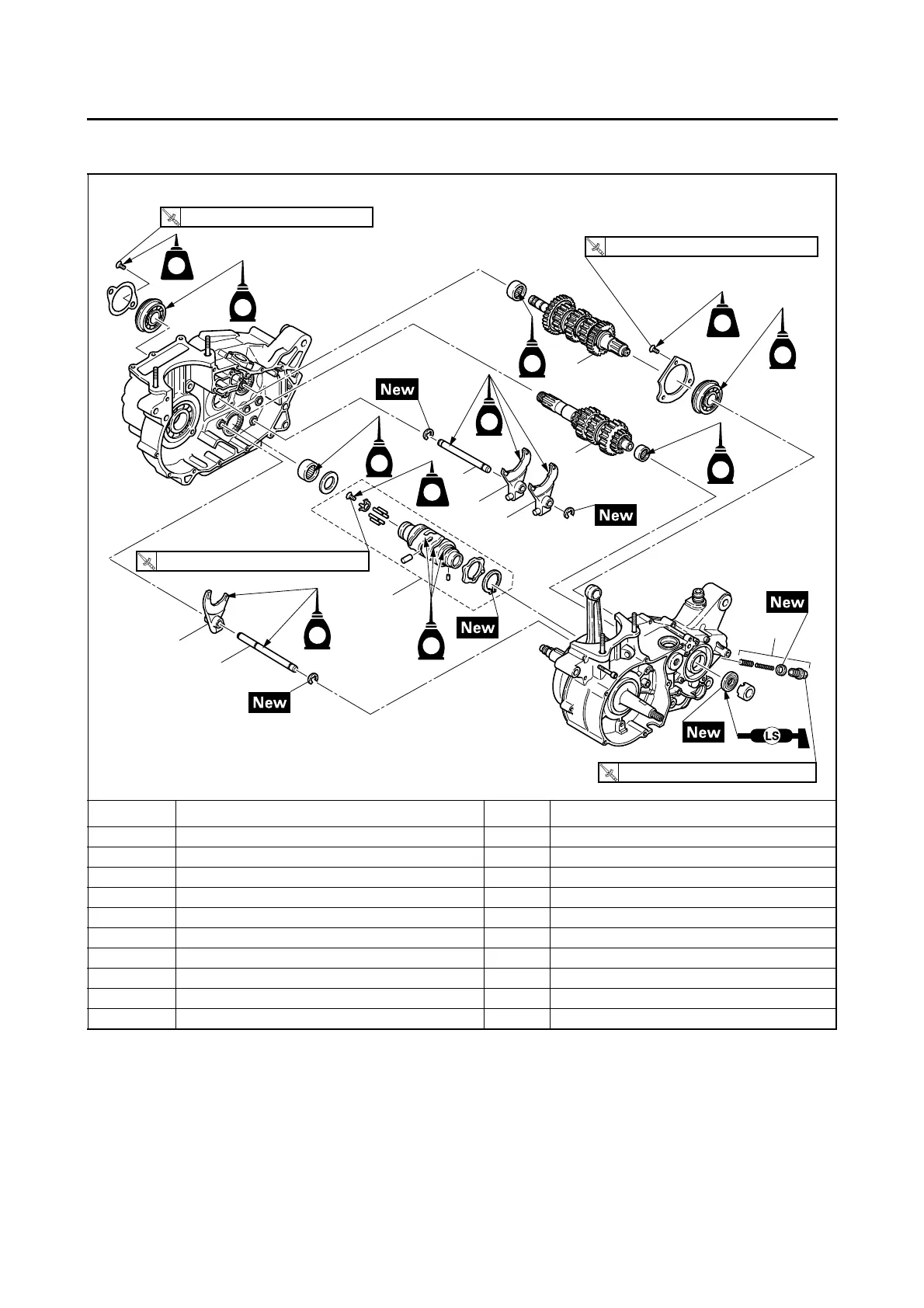

Removing the transmission, shift drum assembly, and shift forks

Order Job/Parts to remove Q’ty Remarks

Separate the crankcase. Refer to “CRANKCASE” on page 5-48.

1 Stopper cam assembly 1

2 Shift fork guide bar 1 1

3 Shift fork guide bar 2 1

4 Shift drum assembly 1

5 Shift fork 1 (C) 1

6 Shift fork 2 (R) 1

7 Shift fork 3 (L) 1

8 Drive axle assembly 1

9 Main axle assembly 1

28 Nm (2.8 m • kgf, 20 ft • Ibf)

7 Nm (0.7 m • kgf, 5.1 ft • Ibf)

3.8 Nm (0.38 m • kgf, 2.8 ft • Ibf)
