Yamaha SR400 User Manual

Periodic maintenance and adjustment
6-20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU22199

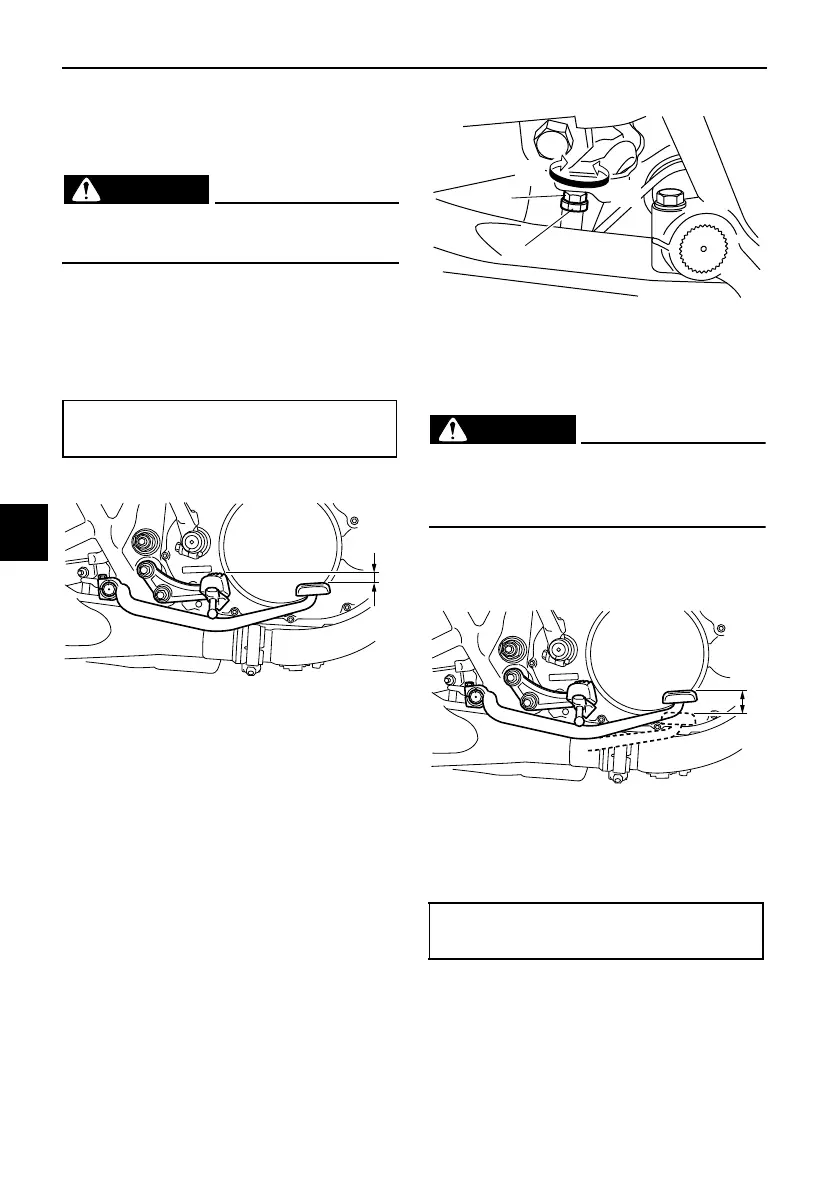

Adjusting the brake pedal
height and free play
WARNING
EWA10671
It is advisable to have a Yamaha
dealer make these adjustments.
Brake pedal height
The top of the brake pedal should be
positioned at the specified distance be-
low the top of the footrest as shown.
Periodically check the brake pedal
height and, if necessary, adjust it as fol-
lows.
1. Loosen the brake pedal height
locknut.
2. To raise the brake pedal, turn the
brake pedal height adjusting bolt in
direction (a). To lower the brake
pedal, turn the adjusting bolt in di-
rection (b).
3. Tighten the locknut.
WARNING
EWA11232
After adjusting the brake pedal
height, the brake pedal free play
must be adjusted.
Brake pedal free play
Measure the brake pedal free play as
shown.
Periodically check the brake pedal free
play and, if necessary, adjust it as fol-
lows.
To increase the brake pedal free play,
turn the brake pedal free play adjusting
nut at the brake rod in direction (a). To
Brake pedal height:
20.0 mm (0.79 in)
1. Brake pedal height
1
1. Brake pedal height locknut
2. Brake pedal height adjusting bolt
1. Brake pedal free play
Brake pedal free play:
20.0–30.0 mm (0.79–1.18 in)
1
2
(b)
(a)
1
