EAU60010
Replacing a turn signal light
bulb
1. Remove the turn signal light lens,
turn signal light rim and gasket by
removing the screws.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the gasket, rim and lens by
installing the screws with the notch
on the rim and lens facing to in-
ward as shown. NOTICE: Do not
overtighten the screws, other-
wise the lens may break.
[ECA10682]

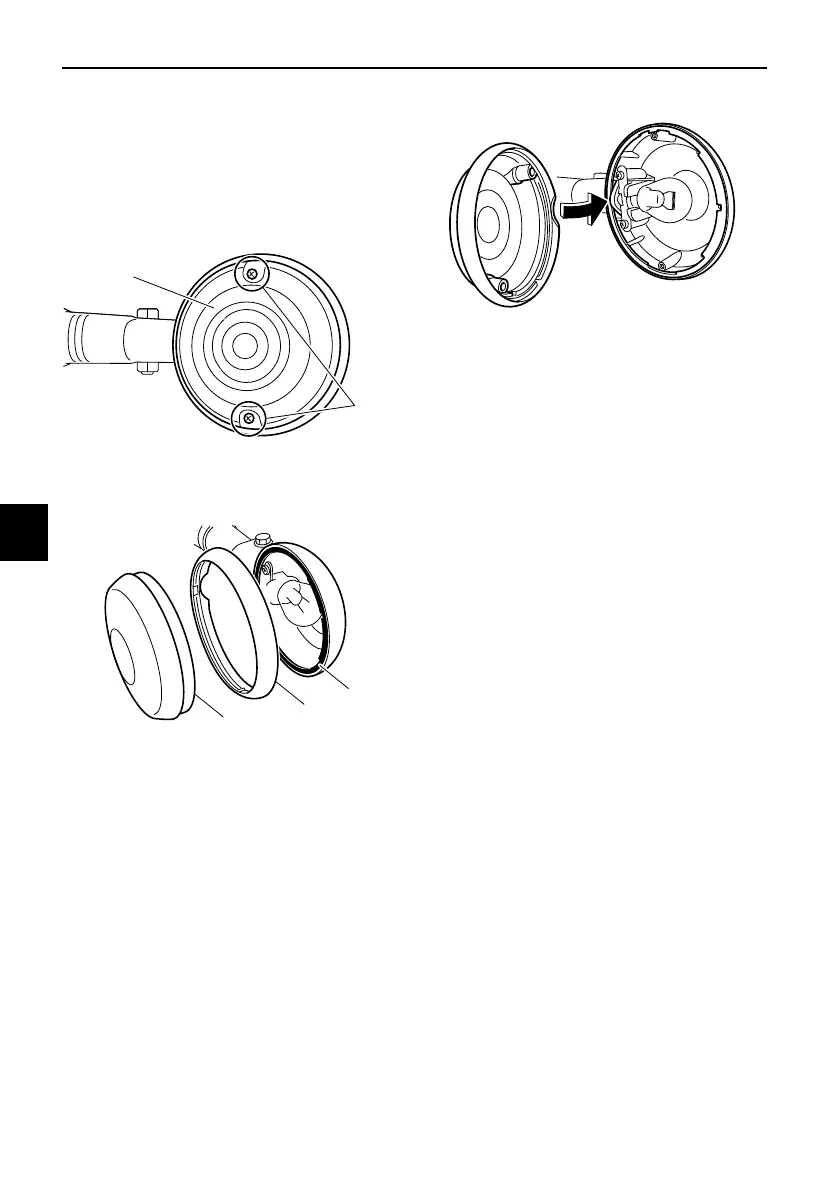

1. Turn signal light lens
2. Screw
1. Turn signal light lens
2. Turn signal light rim
3. Gasket
1
2
3
2
1
