4 - 49
ENG

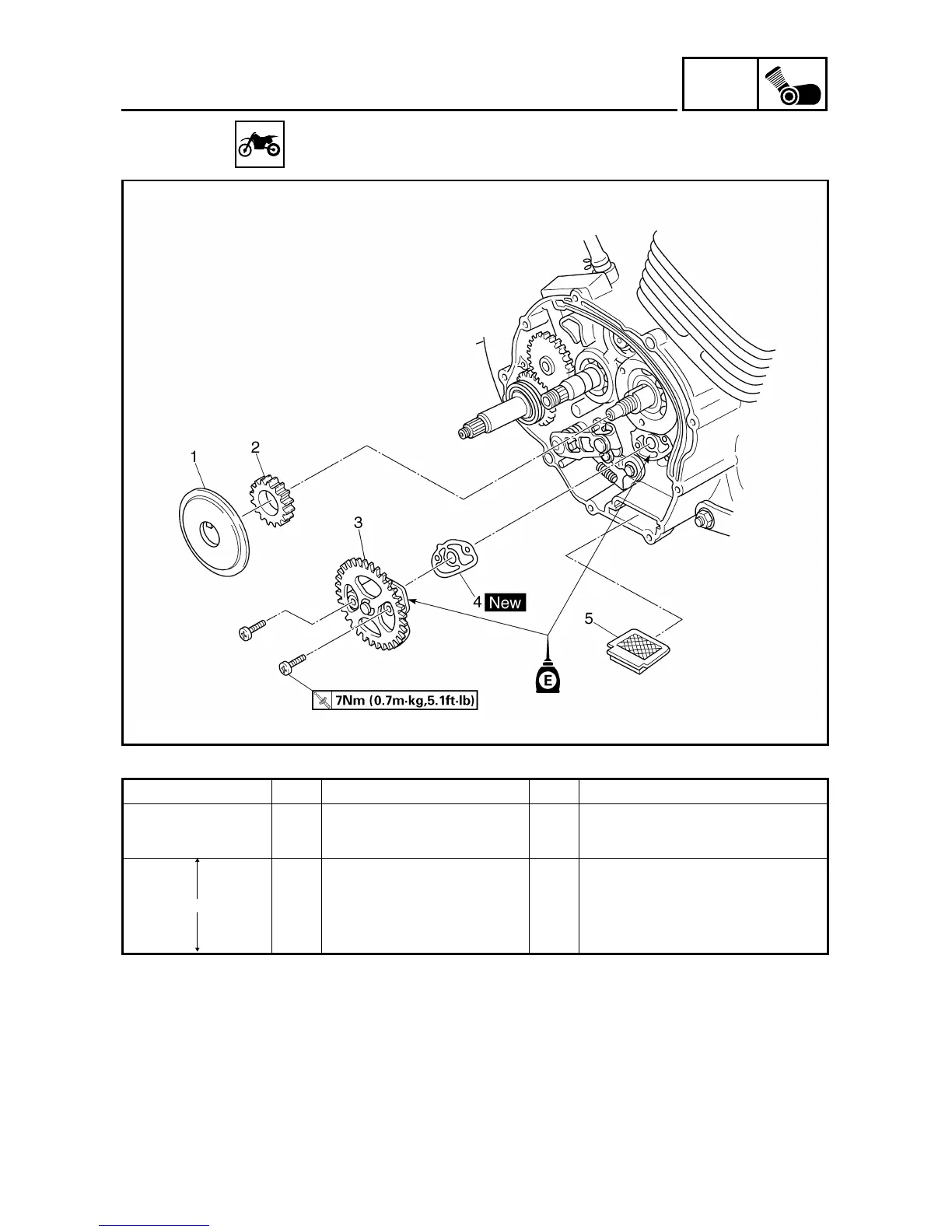

OIL PUMP
OIL PUMP
Extent of removal:
1
Oil pump removal
Extent of removal
Order
Part name
Q
’
ty
Remarks
OIL PUMP REMOVAL
Preparation for removal
Clutch and primary drive gear
Refer
to
“
CLUTCH AND PRIMARY
DRIVEN GEAR
”
section.
1
Rotary filter
1
2
Oil pump drive gear
1
3
Oil pump assembly
1
4
Gasket
1
5
Oil strainer
1
1
305
307
