6 - 1
– +
ELEC

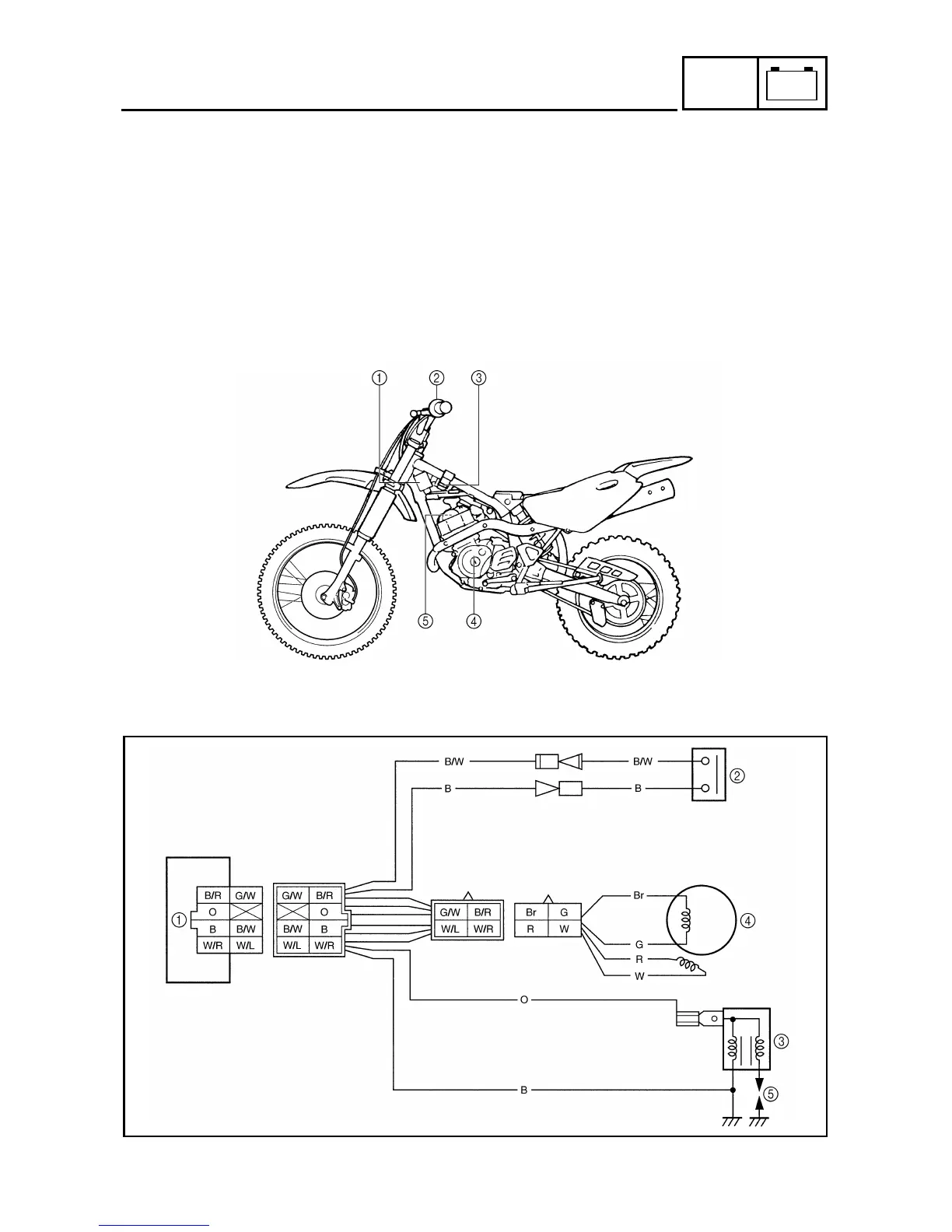

* The illustration shows the TT-R125LW
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC600000
ELECTRICAL
EC610000
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC611000
ELECTRICAL COMPONENTS
1 CDI unit
2 Engine stop switch
3 Ignition coil
4 CDI magneto
5 Spark plug
COLOR CODE
B...................... Black
Br .................... Brown
G ..................... Green
O ..................... Orange
R ..................... Red
W..................... White
B/R .................. Black/Red
B/W ................. Black/White
G/L .................. Green/Blue
G/W ................. Green/White
W/L.................. White/Blue
W/R ................. White/Red
EC612000
WIRING DIAGRAM
To Next Page
