5 - 49
CHAS
STEERING
EC560000
STEERING

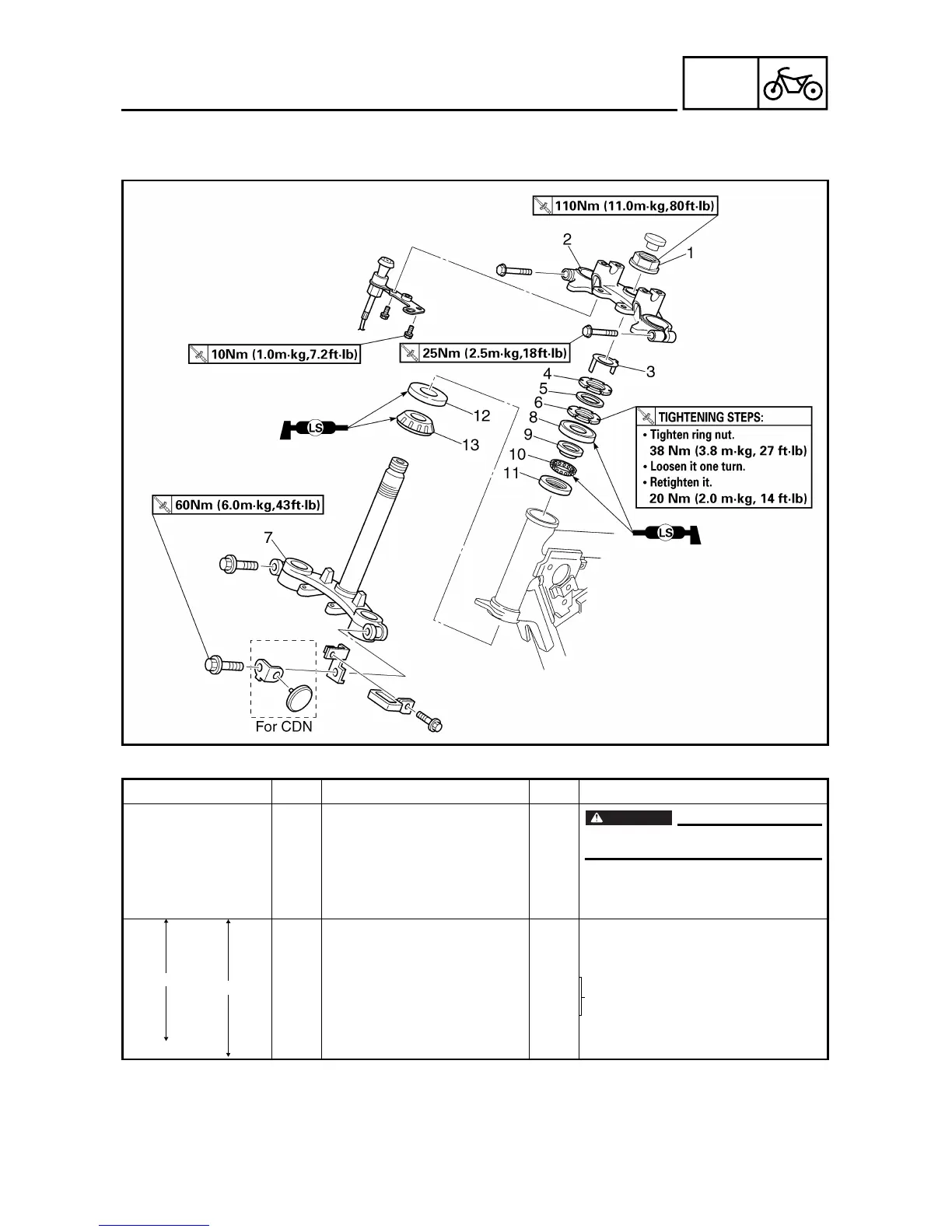

Extent of removal: 1 Lower bracket removal 2 Bearing removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removal
STEERING REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNING
Support the machine securely so there is no
danger of it falling over.
Front forks Refer to “FRONT FORK” section.
Handlebar Refer to “HANDLEBAR” section.
Front fender
1 Steering stem nut 1
2 Upper bracket 1
3 Special washer 1
4 Upper ring nut 1
Use special tool.
Refer to “REMOVAL POINTS”.
5 Rubber washer 1
6 Lower ring nut 1
7 Lower bracket 1
8
Bearing cover
1
2
1
