Yamaha UD-Stomp - Circuit Boards

UD-Stomp
18
Battery
Batter
y
holder
CIRCUIT BOARDS

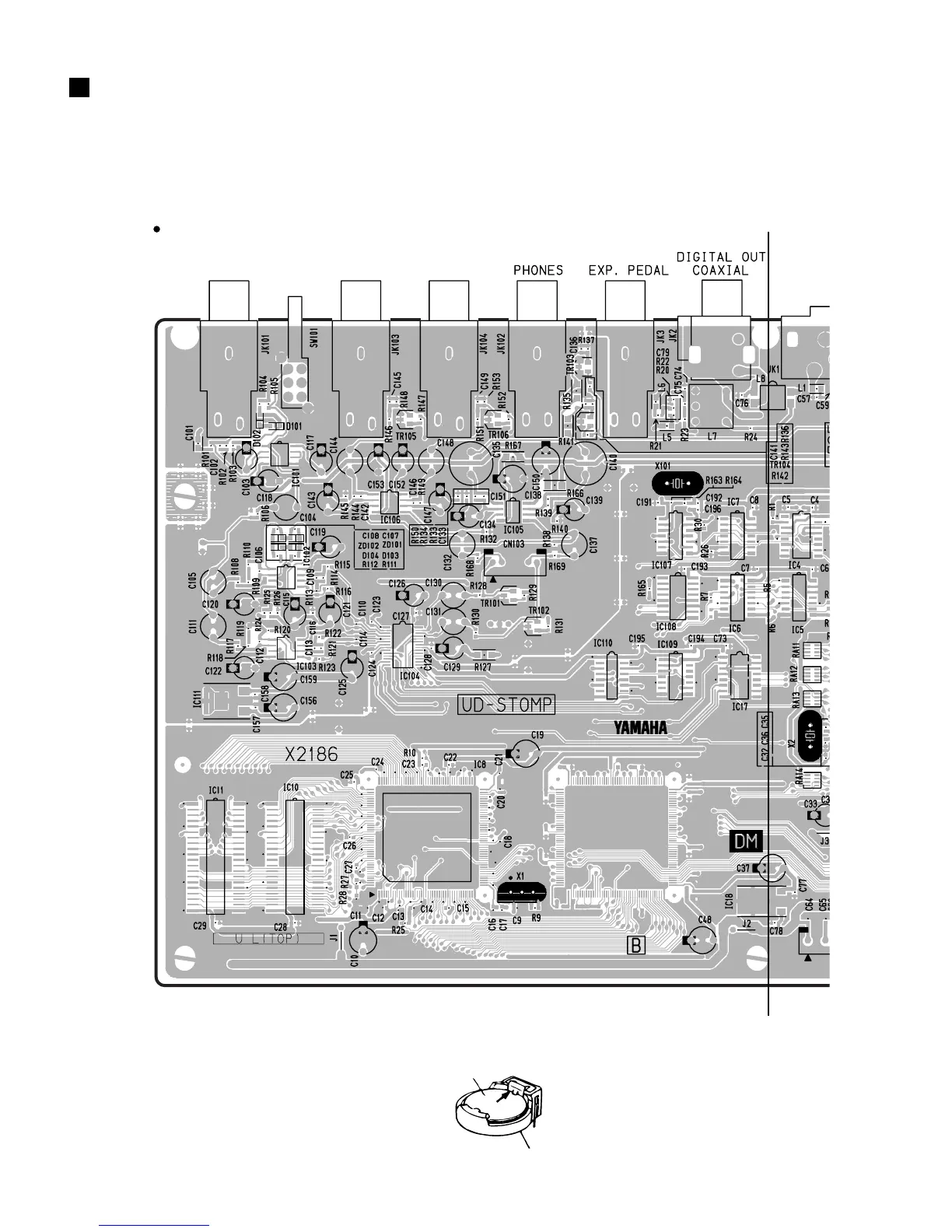

DM Circuit Board
CN103: to PN1/2-CN301 to PN1
INPUT
LOW
HIGH
L/MONO
OUT
R
A
A'
Battery VS246400
VS246300(Battery holder for VS246400)
• Notice for back-up battery removal
Push against the holder hook, then the
battery will pop up.
• Druk tegen de houder, de batterij springt
dan naar voren.
